Neutrik BNC stik UHD til UHD1250 flex

Beskrivelse

Specifikationer

Beskrivelse

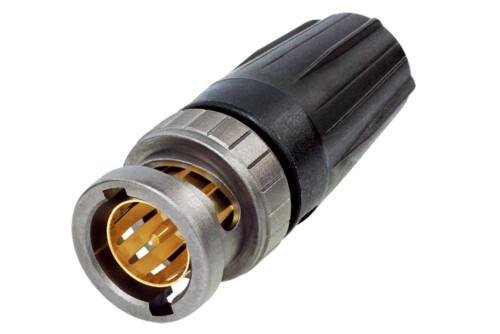

Neutrik NBNC75BXU13X kabelstik

For at garantere høj ydeevne for hver kabel-stik-kombination ved høje frekvenser målte Neutrik enkelte COAX-kabler, som er specielt designet til ultra high definition transmission (UHD). Find alle godkendte kabler anført nedenfor.

UHD-optimerede kabler: DRAKA HD PRO 100 UHD, CAE HD1250FLEX

Hex crimp 7,36 mm
Pin crimp 1,60 mm

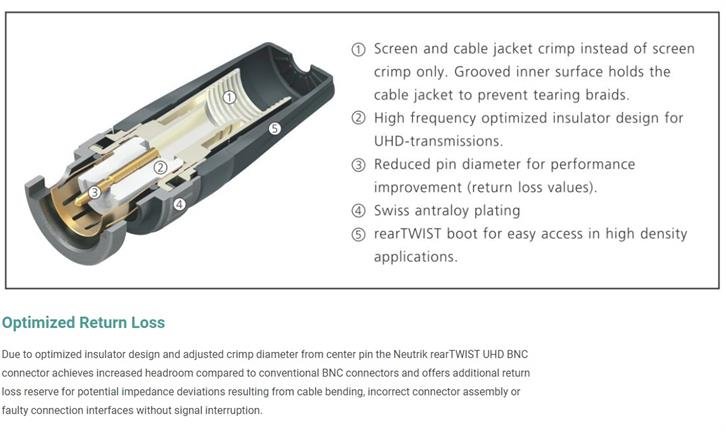

Optimized contact pin and insulator design for UHD-data transmissionsProven rearTWIST technologySwiss antraloy platingFully compatible with conventional BNC chassis connectorsImproved return loss values at high frequencies

Product
Title NBNC75BXU13X
Connection Type BNC 75 ? Gender male

Electrical
Contact resistance ? 3 m? (inner)
Contact resistance ? 2 m? (outer)
Dielectric strength 1.5 kVdc
Impedance 75 ?
Insulation resistance > 5 G?
Rated voltage < 50 V

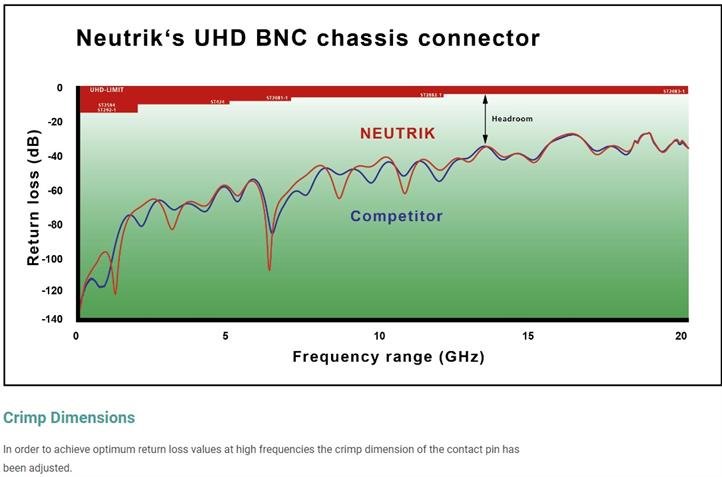

VSWR ? 1.6 / > 23 dB up to 6 GHz
? 2.3 / > 15 dB up to 12 GHz
? 3.9 / > 12 dB up to 18 GHz

Mechanical
Cable O.D. 7.3 mm
Cable retention > 30 N (center)
Crimp size 7.36 Hex crimp (shield)
Crimp size (pin) 1.6 crimp
Insertion force < 25 N
Lifetime > 1000 mating cycles
Locking device Bayonett
Cable anchoring Jacket crimping

Material
Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (center contact)
Shell Brass (CuZn39Pb3)
Shell plating Antraloy
Insert PP

Environmental
Temperature range - 30 °C to +85 °C
Contact crimpability Complies with IEC 60803 and IEC 60352-2
