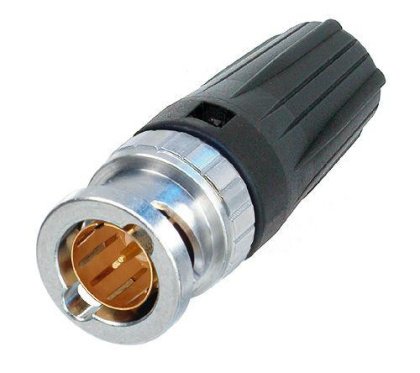

BNC stik, 1,6mm over 4,06mm til ProCab RSC600

NBBTC75BFI4 BNC stik, 1,6mm over 4,06mm til ProCab RSC600

NBTC75BFI4 rearTWIST HD BNC-kabelstikket tilbyder et 75ohm design og egner sig perfekt til HD-applikationer. Stikket er optimeret til små kabeldiametre.
Egnede kabler: Belden 1520A, Belden 1521A, Belden 1522A, Belden 179DT, Draka 0.31/1.45 AF, Draka 753-1304(2), Draka 755-1302, Suhner G02233, ZNK CM14B

Contact resistance: <= 3 mOhm (inner)
Contact resistance: <= 2 mOhm (outer)
Dielectric strength: 0,75 kVdc
Impedance: 75 Ohm
Insulation resistance: > 5 G Ohm
Rated voltage: VSWR: <=1.10/>26 dB up to 1 GHz, <=1.14/>24 dB up to 2 GHz, <=1.22/>20 dB up to 3 GHz
Cable O.D.: 2.9 mm
Cable retention: > 30 N (Center)
Crimp size: 4,06 Hex crimp (shield) acc. MIL22520/5-39(B)
Crimp size (pin): 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force: Lifetime: > 1000 mating cycles
Locking device: Bayonett
Cable anchoring: Jacket crimping
Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert: PTFE
Shell: Brass (CuZn39Pb3)
Shell plating: Optalloy®
Temperature range: -30 °C to +85 °C
Contact crimpability: Complies with IEC 60803 and IEC 60352-2

Størrelse

Vægt:	0,012
