NBNC75BLP9X BNC stik UHD kompatibel med bl.a. Belden 1505ANH kabel

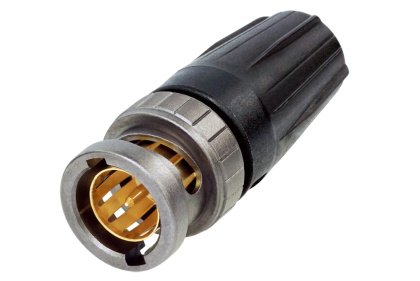

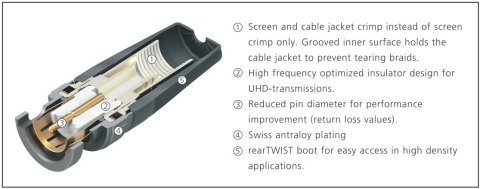

NBNC75BLP9X rearTWIST UHD BNC-kabelstikket er specifikt designet til højopløselige video-signaltransmissioner. Stikkets unikke isolator og kontakt pin-design sørger for at signaltabet er minimalt ved 4K og 8K signaler.

Egnede kabler:
Argosy Image 720, CAE HD08370LSZH, Clark Wire CD7559F, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801, Draka 755-803, Draka 755-804, Gepco VPM2000, Proel HPC 810, Suhner S0426, Sommer 600-0451, Sommer 600-162(F), Percon VK6

UHD-optimerede kabler:
Belden 1505A, Belden 1505ANH, Belden 1505DNH, Belden 4505R, Belden 70081, Belden 70081NH, Belden 70081CH, Bryant SD50F, Canare L-4CFB, Clark CD7559, Draka Highflex 0.8L/3.7Dz, Draka HD Pro 0.8/3.7 AF, Klotz VD083SH, Klotz V08/37H, Sommer vector 0.8/3.7

Contact resistance: <= 3 mOhm (inner)
Contact resistance: <= 2 mOhm (outer)
Dielectric strength: 1.5 kVdc
Impedance: 75 Ohm
Insulation resistance: > 5 G Ohm
Rated voltage:
VSWR: <=1.06 / >30 dB up to 6 GHz / <=1.13 / >24 dB up to 12 GHz / <=1.22 / >20 dB up to 18 Ghz

Cable O.D.: 6.3 mm
Cable retention: > 30 N (center)
Crimp size: 6.47 Hex crimp (shield)
Crimp size (pin): 1.07 crimp
Insertion force:
Lifetime: > 1000 mating cycles
Locking device: Bayonett
Cable anchoring: Jacket crimping
Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (center contact)
Shell: Brass (CuZn39Pb3)
Shell plating: Antraloy
Insert: PP
Temperature range: -30 °C to +85 °C
Contact crimpability: Complies with IEC 60803 and IEC 60352-2

Størrelse

Vægt:	0,014
