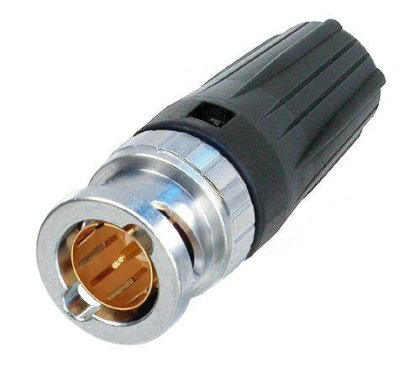

BNC stik 75 Ohm, BULK u/bagkappe, sælges kun af 100 stk

NBNC75BFG7 BNC stik, BULK u/bagkappe, sælges kun af 100 stk

NBNC75BFG7 rearTWIST HD BNC-kabelstikket tilbyder et 75ohm design og egner sig perfekt til HD-applikationer.

Egnede kabler:
Argosy Image 360, Belden 1855ENH, Bryant BD SD01, CAE HD0628LSZH, Canford SDV, Canford SDV-LFH, Canford SDV-X-LFH, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Quadtronics CABPGHD70MW-500, Sommer 600-0101M, Sommer 600-0104M, Tesca Supra

Contact resistance: ≤ 3 mΩ (inner)
Contact resistance: ≤ 2 mΩ (outer)
Dielectric strength: 1,5 kVdc
Impedance: 75 Ω
Insulation resistance: > 5 GΩ
Rated voltage: VSWR: ≤1.050/>32 dB up to 1 GHz, ≤1.065/>30 dB up to 2 GHz, ≤1.100/>26 dB up to 3 GHz
Cable O.D.: 4.7 mm
Cable retention: > 30 N (Center)
Crimp size: 5 Hex crimp (shield) acc. MIL22520/5-43(B)
Crimp size (pin): 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force: Lifetime: > 1000 mating cycles
Locking device: Bayonett
Cable anchoring: Jacket crimping
Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert: PTFE
Shell: Brass (CuZn39Pb3)
Shell plating: Optalloy®
Temperature range: -30 °C to +85 °C
Contact crimpability: Complies with IEC 60803 and IEC 60352-2

Størrelse

Vægt:	0,01
