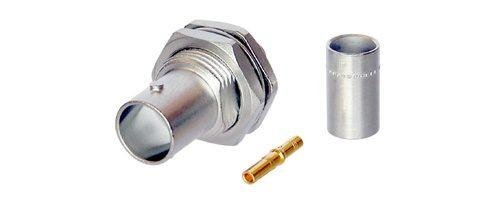

BNC kabelstik 75 Ohm til chassis-montering, stel-forbundet

NBNB75GLP9 BNC kabelstik til chassis-montering, 75ohm, stel-forbundet

NBNB75GLP9 BNC kabelstik til panelmontering og tilbyder et 75ohm design til serielle og digitale (HD) signaler.
Egnede kabler: Belden 1505A, Belden 8241F, Canare L-4CFB, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801 (803, 804), Gepco VPM2000, Suhner S04263, Sommer 600-0451.

Contact resistance: <= 3 mOhm (inner)
Contact resistance: <= 2 mOhm (outer)
Dielectric strength: 1,5 kVdc
Impedance: 75 Ohm
Insulation resistance: > 5 G Ohm
Rated voltage: VSWR: <=1.050/>32 dB up to 1 GHz, <=1.065/>30 dB up to 2 GHz, <=1.100/>26 dB up to 3 Ghz
Cable O.D.: 6.3 mm
Cable retention: > 30 N (Center)
Crimp size: 6,47 Hex crimp (shield) acc. IEC 60803 (die designation E)
Crimp size (pin): 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force: Lifetime: > 1000 mating cycles
Locking device: Bayonett
Mounting direction: Rear mounting
Chassis shape: 12.7 mm
Cable anchoring: Jacket crimping
Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert: PTFE
Shell: Brass (CuZn39Pb3)
Shell plating: Optalloy®
Temperature range: -30 °C to +85 °C
Contact crimpability: Complies with IEC 60803 and IEC 60352-2

Størrelse

Vægt:	0,0152
