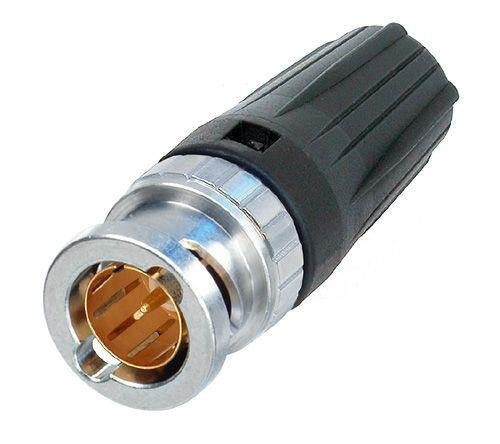

BNC stik til stor kabeldiameter, 1,6mm over 9,73mm

NBLC75BVZ17 BNC stik til stor kabeldiameter, 1,6mm over 9,73mm

NBLC75BVZ17 rearTWIST HD BNC-kabelstikket er designet til store kabeldiametre som bruges på lange distancer og ved høje datahastigheder (HD).

Contact resistance: ≤ 3 mΩ (inner)
Contact resistance: ≤ 2 mΩ (outer)
Dielectric strength: 1,5 kVdc
Impedance: 75 Ω
Insulation resistance: > 5 GΩ
Rated voltage: VSWR: ≤1.050/>32 dB up to 1 GHz, ≤1.065/>30 dB up to 2 GHz, ≤1.100/>26 dB up to 3 Ghz
Cable O.D.: 10.4 mm
Cable retention: > 30 N (Center)
Crimp size: 10.0 mm (HEX)
Crimp size (pin): 1.8 mm
Insertion force: Lifetime: > 1000 mating cycles
Locking device: Bayonett
Cable anchoring: Jacket crimping
Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert: PTFE
Shell: Brass (CuZn39Pb3)
Shell plating: Optalloy®
Temperature range: -30 °C to +85 °C
Contact crimpability: Complies with IEC 60803 and IEC 60352-2

Størrelse

Vægt:	0,0141
