BNC chassis bøsning 75 Ohm, ground sort hus (til lodn.)

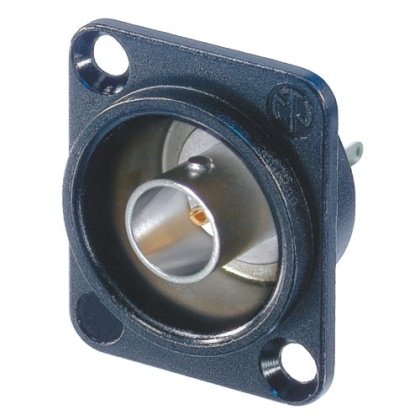

NBB75DSG-B BNC chassis bøsning 75 Ohm, ground sort hus (til lodn)

Grounded BNC chassis bøsning 75 Ohm til lodning, sort D-size hus. Til serielle og digitale (HD) signaler.

Signal Type: HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
Contact resistance: <= 3 mOhm (inner)
Contact resistance: <= 2 mOhm (outer)
Dielectric strength: 1,5 kVdc
Impedance: 75 Ohm
Insulation resistance: > 5 G Ohm
Rated voltage: VSWR: <=1.03/>37 dB up to 1 GHz, ≤1.05/>32 dB up to 2 GHz, <= 1.08/>28 dB up to 3 Ghz
Insertion force: Lifetime: > 1000 mating cycles
Locking device: Bayonett
Mounting direction: Front mounting
Chassis shape: D
Contacts: Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
Insert: PTFE
Shell: Polyacetal (POM) (Insulation Sheell)
Shell plating: Optalloy®
D-Shape housing: Zinc diecast (ZnAl4Cu1) gal black chrome plating
Temperature range: -30 °C to +85 °C

Størrelse

Vægt:	0,0214
