Mikrofonkabel heavy duty AES/EBU, Sort Ø=6,2mm

SCHD2D mikrofonkabel DMX

Afklip i metermål

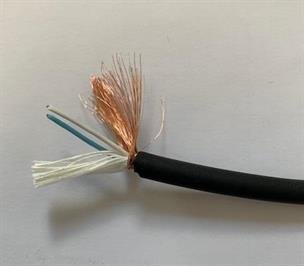

Mikrofonkabel heavy duty, med ekstra kraftig gummi kabbel, sort Ø=6,2mm, meter pris
HF tæt dobbelt snoet kobber skærm 2 x 0,22mm2
Super fleksibel mikrofon kabel til DMX og Digital audio

SCHD2D Afklip i metermål
SCHD2D-1 100 meter på paprulle
SCHD2D-3 300 meter på paprulle

Model: SCHD2D-1
Type: DMX Cable

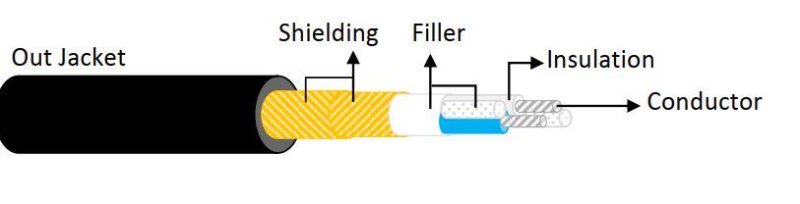

Specification: ((28/0.10TC)*2C+Filler+75/0.10BC+81/0.10BC)*1C

Conductor
Material: Tinned Copper (T-OFC)
Construction: 28 X 0.10 MM
Cross Section: 0.22MM2 (24AWG) X 2

Insulation
Material: Foam-Skin Polyethylene (FPE-SKIN)
Thickness: 0.28 MM
Diameter: 1.2 MM X 2C
Color: 1)White; 2)Blue

Filler
Material: Cotton + Paper

Shielding
Material: Bare Copper (OFC)
Construction: 75/0.10MM + 81/0.10MM Spiral
Coverage: 99% + 99%

Out Jacket
Material: Soft Flexible Matt. Polyvinylchloride (PVC)
Thickness: 1.6 MM
Diameter: 6.2 MM
Operation Temp.: -200C ~ 750C Approvel By:

Electric Characteristic
Conductor Resistance at 200C: 82.0 /KM
Core to Core Capacitance: 58.0 pF/M

Information

Type:	Fleksibel kabel
Model:	Audio digital / DMX
Længde:	Afklip metermål

Størrelse

Diameter:	6,2 mm
