Mikrofonkabel til Analog, DMX og AES, Sort Ø=5,2 mm

SCC2D Mikrofonkabel standard AES/EBU

Super fleksibel mikrofon kabel i høj kvalitet til professionel brug.
Kan avendes til: Analog, DMX og Digital audio

Ydrekappe sort Ø = 5,2mm
HF tæt dobbelt snoet kobber skærm 2x0,22mm2

Leveres på paprulle.

Model: SCC2D-SO
Type: DMX Cable
Specification: ((28/0.10TC)*2C+Filler+75/0.10BC+81/0.10BC)*1C

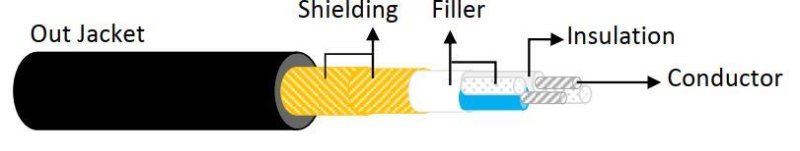

Conductor
Material: Tinned Copper (T-OFC)
Construction: 28 X 0.10 MM
Cross Section: 0.22MM2 (24AWG) X 2

Insulation
Material: Foam-Skin Polyethylene (FPE-SKIN)
Thickness: 0.28 MM
Diameter: 1.2 MM X 2C
Color: 1)White; 2)Blue

Filler
Material: Cotton + Paper
Shielding

Material: Bare Copper (OFC)
Construction: 75/0.10MM + 81/0.10MM Spiral
Coverage: 99% + 99%
Out Jacket

Material: Soft Flexible Matt. Polyvinylchloride (PVC)
Thickness: 1.1 MM
Diameter: 5.2 MM
Operation Temp.: -200C ~ 750C Approvel By:
Electric Characteristic
Conductor Resistance at 200C: 82.0 /KM
Core to Core Capacitance: 58.0 pF/M

Information

Type:	Fleksibel kabel
Model:	Audio digital / DMX
Farve:	Sort

Størrelse

Diameter:	5,2 mm
