RCF Point source aktiv højttaler TTP4-A 2x10 + 1,5 driver

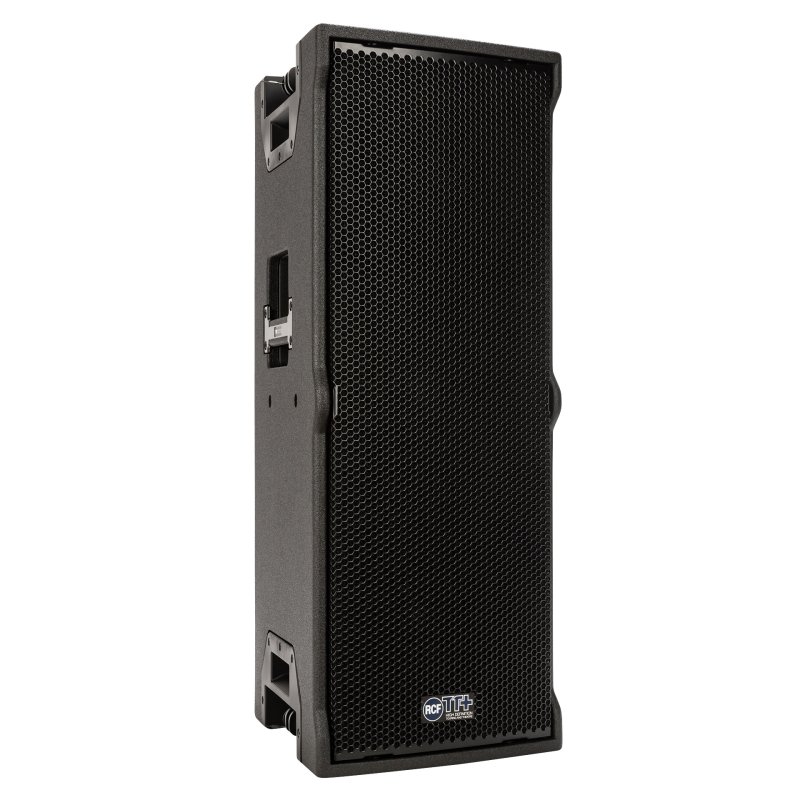

RCF TTP4-A aktiv point source højttaler

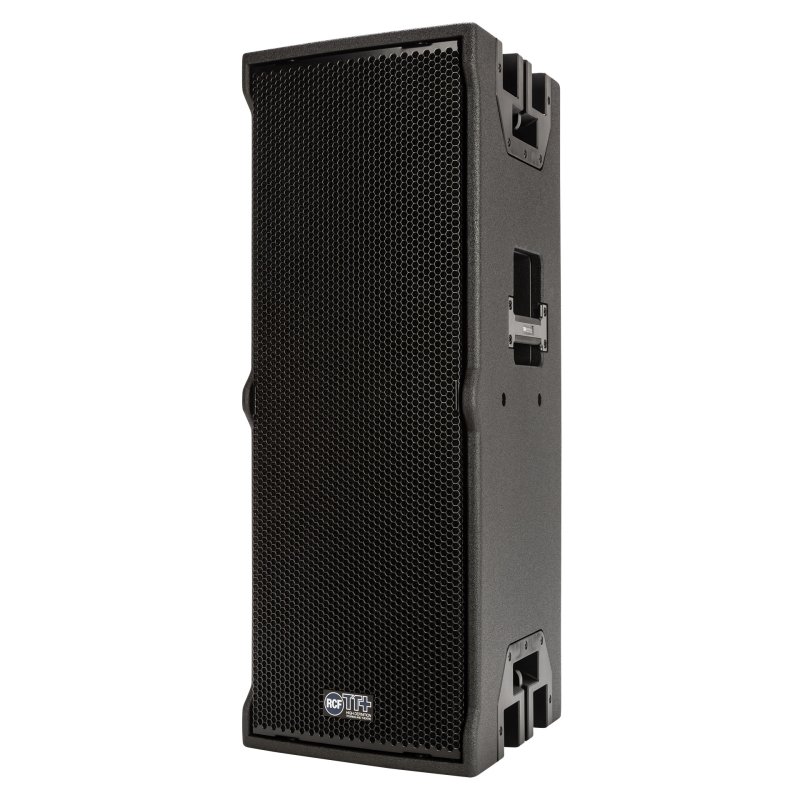

The TTP 4-A point source speaker module delivers top-quality sound for highly demanding events indoors or outdoors on small to medium-sized areas. Its design provides the audio engineer with the best tonal balance and intelligibility with an unobtrusive and adaptable footprint. It is the preferred sound set-up for stacked and flown systems when a controlled dispersion is required. With all the advantages of TT+ technology, such as coherent directivity, power, and precision, it’s designed for professional applications.

135 dB max SPL
60° x 25° coverage
LF 2 x 10’’ neodymium woofer, 3.0” voice coil
HF 1.5” Nd comp. driver 4.0” voice coil
2 x Class-D amplifiers, 1600 Watt RMS total power
45 – 20.000 Hz frequency range
RDNet on board
FiRPHASE 0° linear phase


ACOUSTICAL SPECIFICATIONS
Frequency Response: 45 Hz ÷ 20000 Hz
Max SPL @ 1m: 135 dB
Horizontal coverage angle: 60°
Vertical coverage angle: 25°

TRANSDUCERS
Compression Driver: 1 x 1.5'' neo, 4.0'' v.c
Woofer: 2 x 10'' neo, 3.0'' v.c

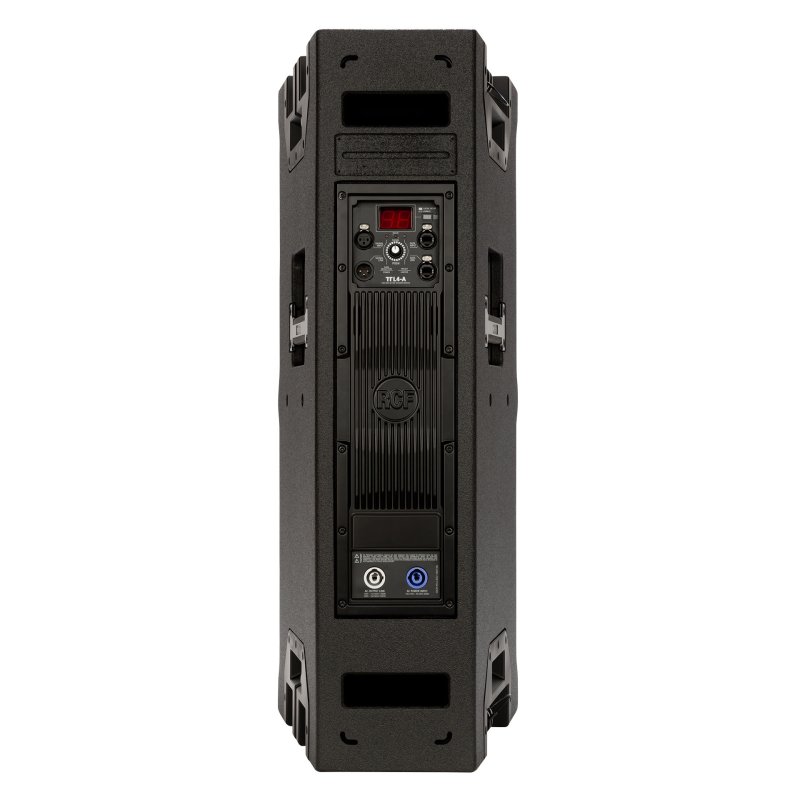

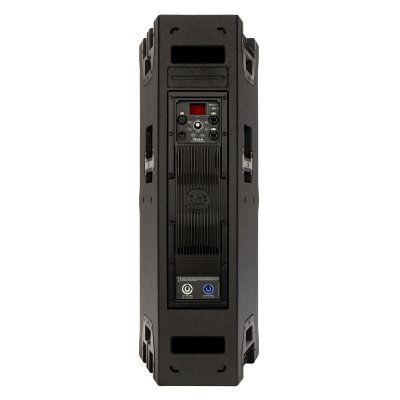

INPUT/OUTPUT SECTION
Input signal: bal/unbal
Input connectors: XLR, RDNet Ethercon
Output connectors: XLR, RDNet Ethercon
Input sensitivity: +4 dBu

PROCESSOR SECTION
Crossover Frequencies: 900Hz
Protections: Thermal, RMS
Limiter: Fast Limiter
Controls: Selectable preset, volume, delay
RDNet: Yes

POWER SECTION
Total Power: 3200 W Peak, 1600 W RMS
High frequencies: 1200 W Peak, 600 W RMS
Low frequencies: 2000 W Peak, 1000 W RMS
Cooling: Convection
Connections: Powercon IN/OUT

PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Baltic birch plywood

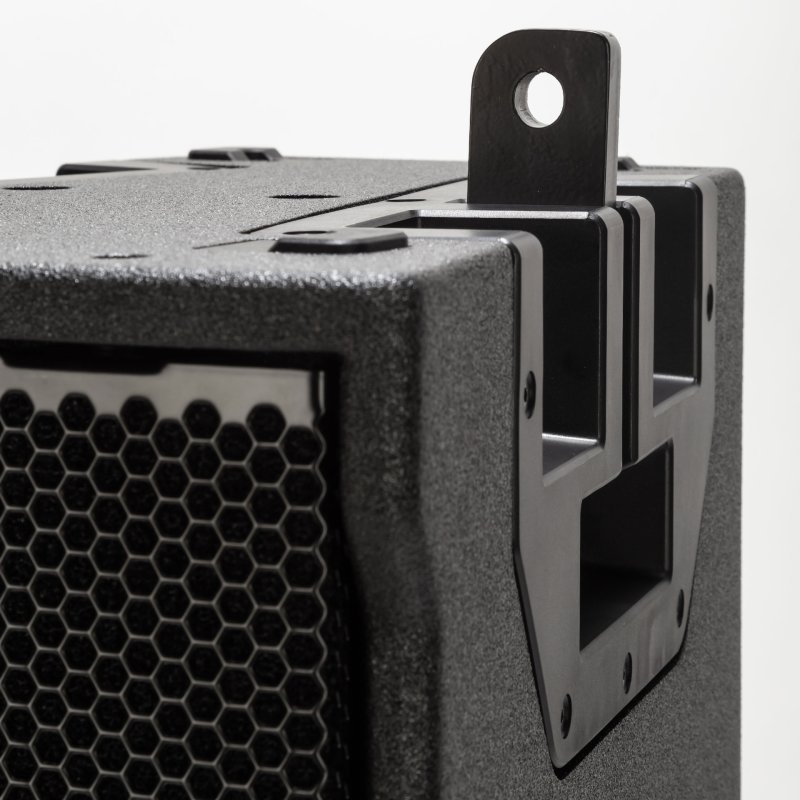

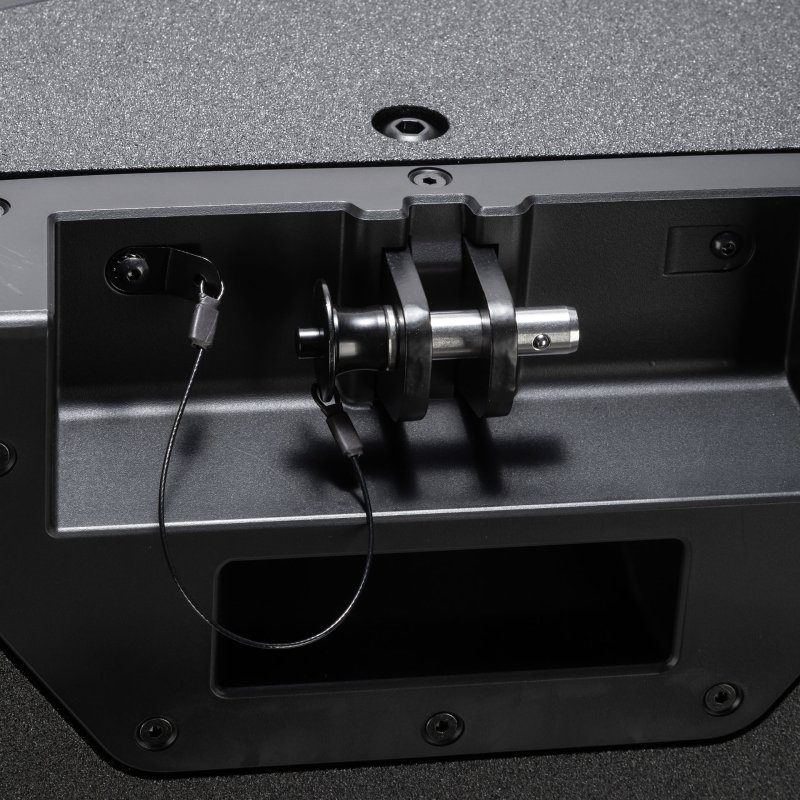

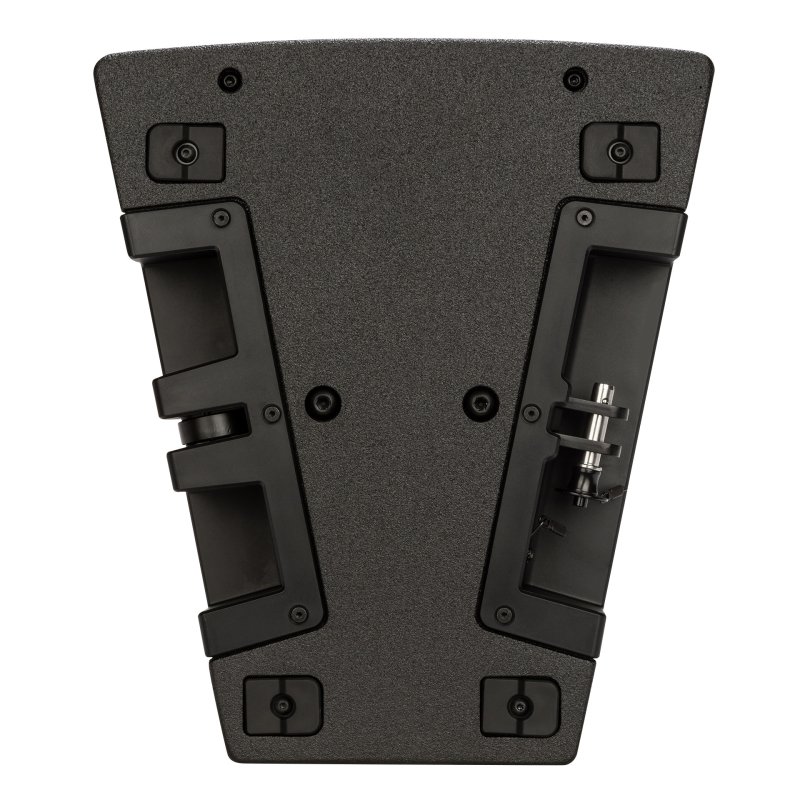

Hardware: Array fittings, 2xM10 on the top, 2xM8 on each side

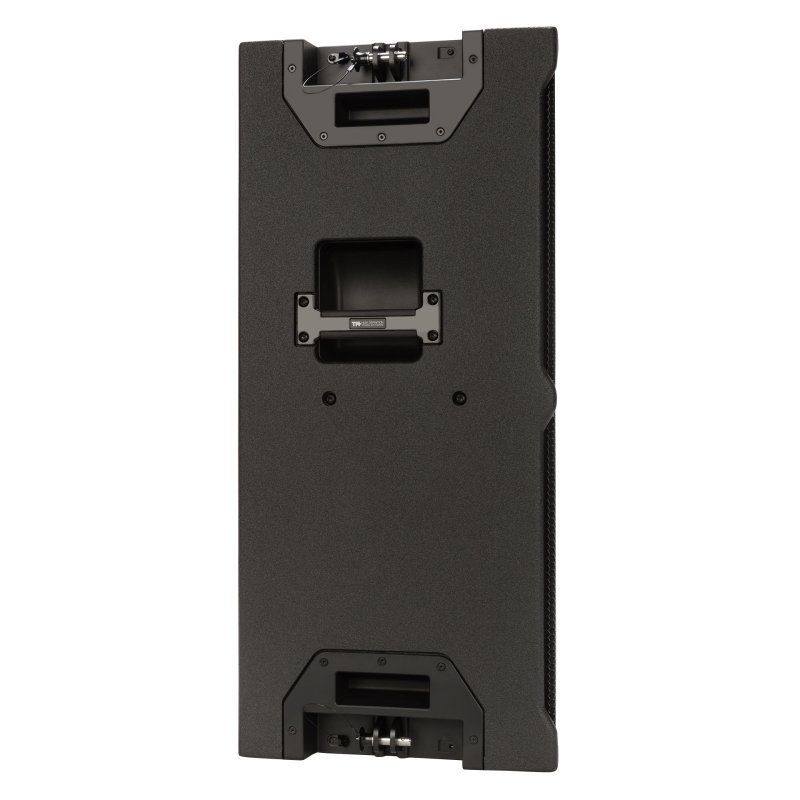

Handles: 2 Side, 2 Rear

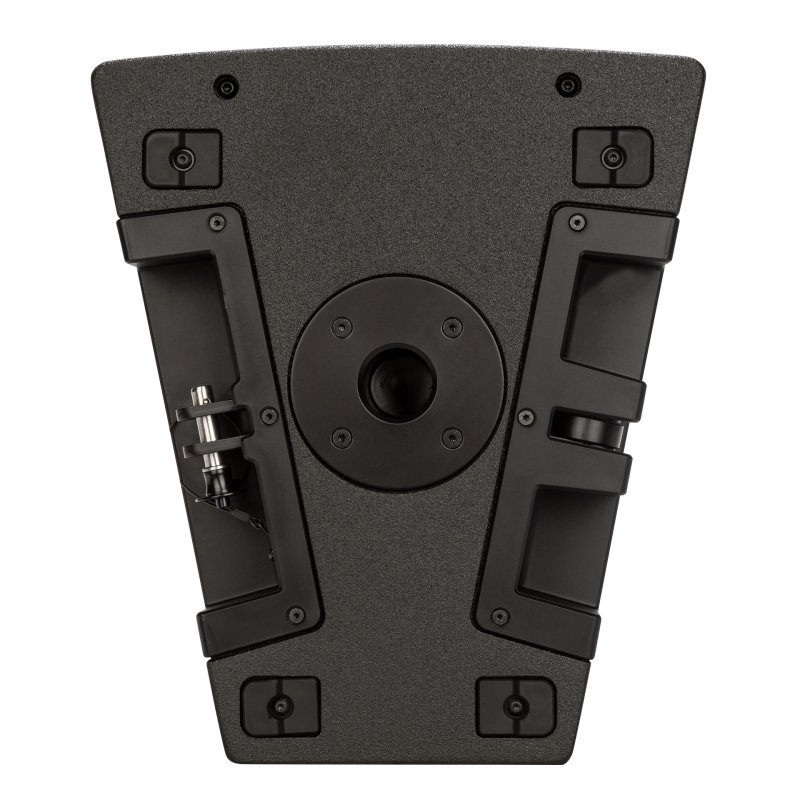

Pole mount/Cap: Yes

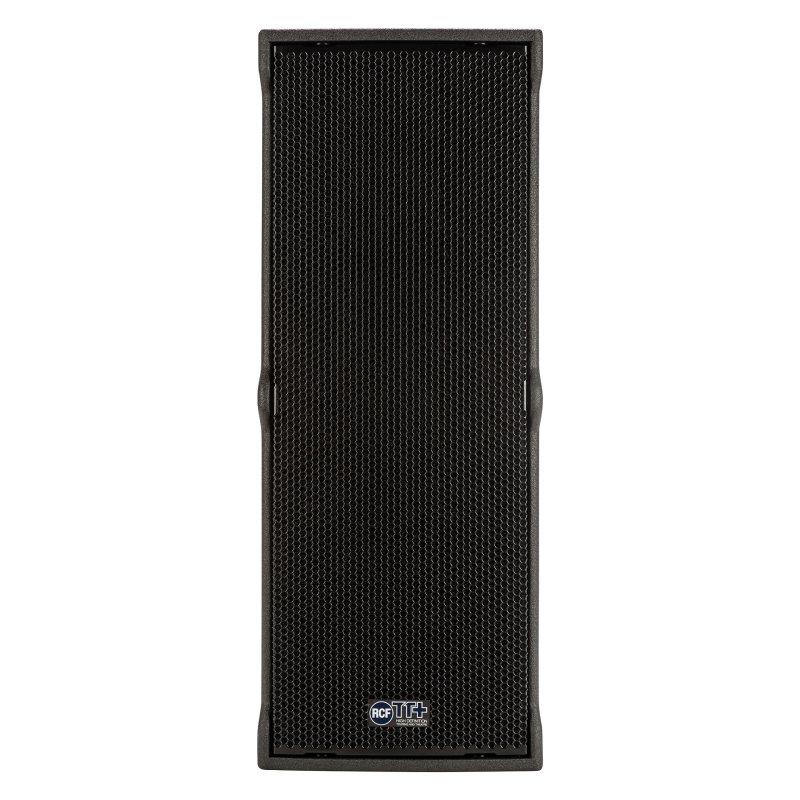

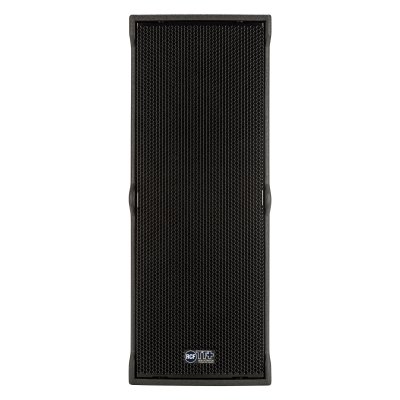

Grille: Steel
Color: Black

Akustiske specifikationer

Effekt:	3200 W Peak, 1600 W RMS
Max SPL @ 1M:	135 dB
Frekvensrespons:	45 Hz ÷ 20000 Hz
Spredning:	H=60° V=25°
Driver:	1.5'' neo, 4.0'' v.c
Woofer:	2 x 10'' neo, 3.0'' v.c

Tilslutninger

In-put:	XLR, RDNet Ethercon
Out-put:	XLR, RDNet Ethercon

Størrelse

Vægt:	30,4
Bredde:	316 mm
Dybde:	369 mm
Højde:	825 mm

Forsendelsesinformation

Pakke Bredde:	410 mm
Pakke Dybde:	365 mm
Pakke højde:	865 mm
Pakke Vægt:	33,5 kg
