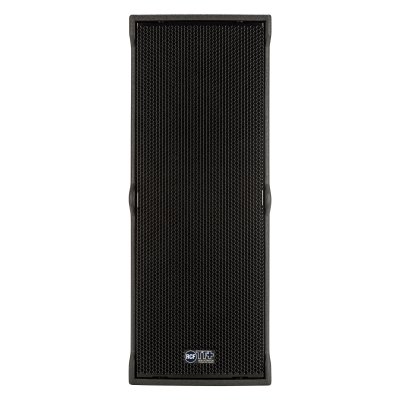

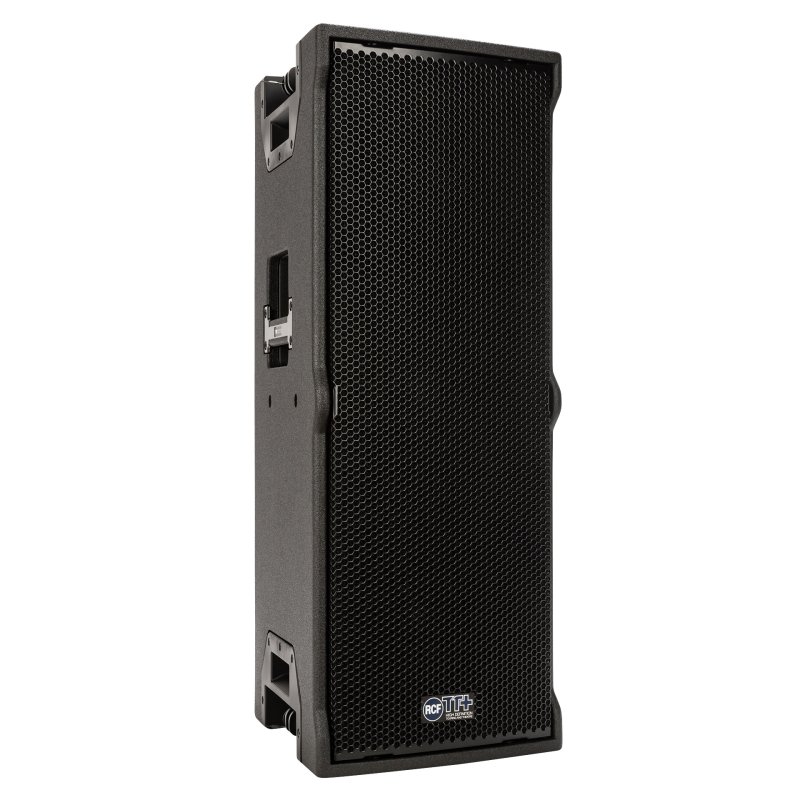

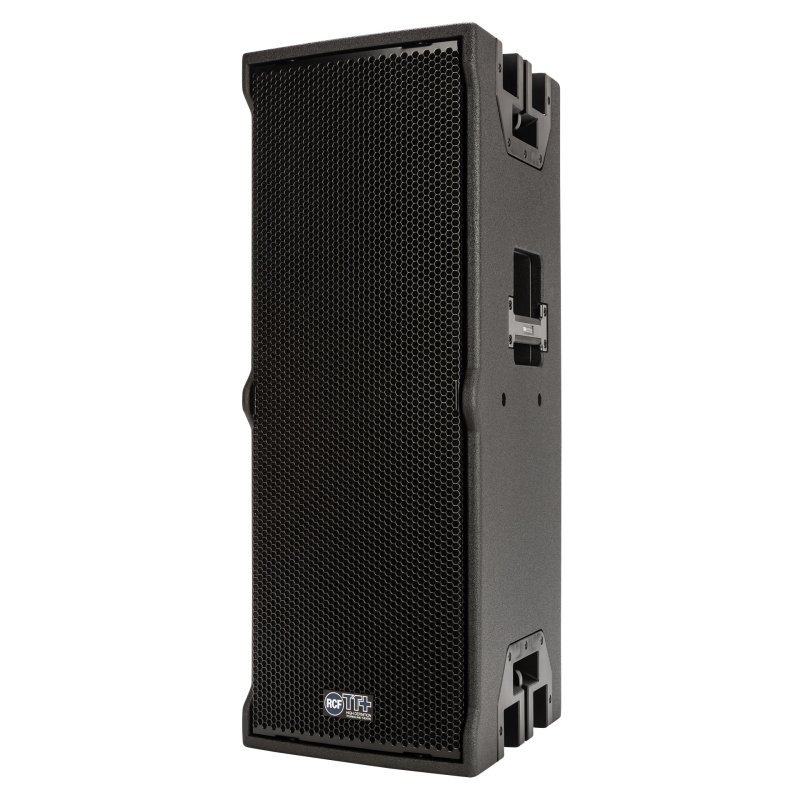

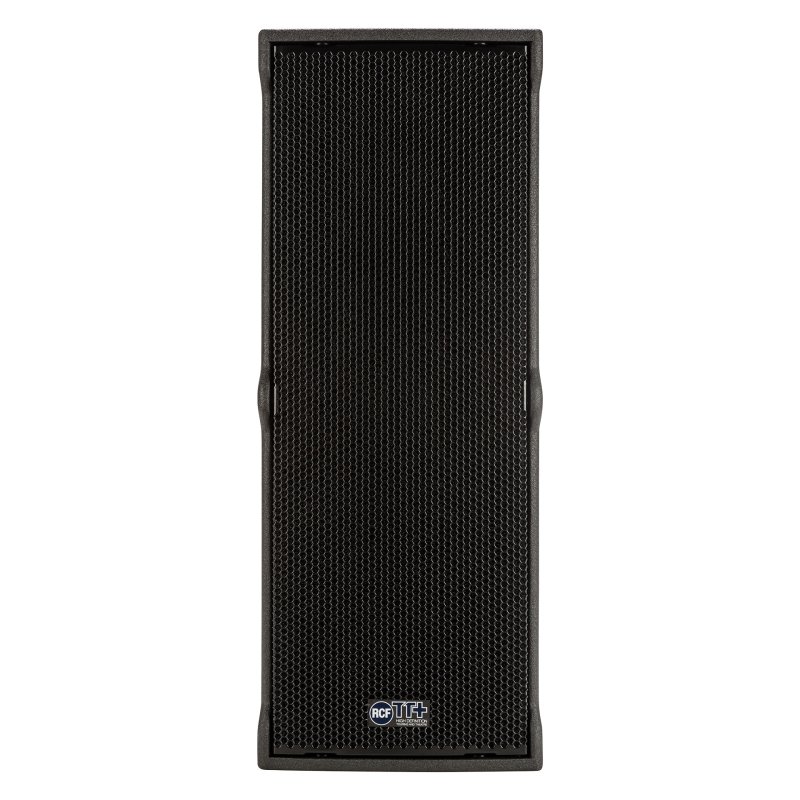

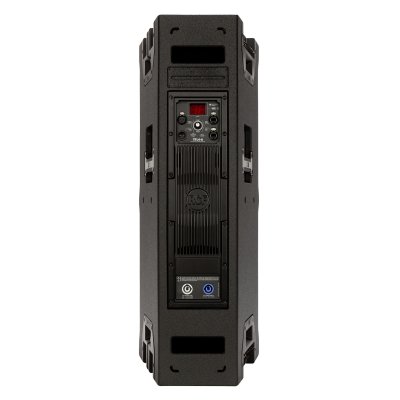

RCF TTW 4-A aktiv højttaler 100 x 50 gr 134dB Spl
RCF TTW 4-A aktiv højttaler 100 x 50 gr 134dB Spl
RCF TTW 4-A aktiv højttaler 100 x 50 gr 134dB Spl
RCF TTW 4-A aktiv højttaler 100 x 50 gr 134dB Spl
RCF TTW 4-A aktiv højttaler 100 x 50 gr 134dB Spl
RCF TTW 4-A aktiv højttaler 100 x 50 gr 134dB Spl
RCF TTW 4-A aktiv højttaler 100 x 50 gr 134dB Spl
RCF TTW 4-A aktiv højttaler 100 x 50 gr 134dB Spl
RCF TTW 4-A aktiv højttaler 100 x 50 gr 134dB Spl

RCF TTW 4-A aktiv højttaler 100 x 50 gr 134dB Spl

41.225,00 DKK (inkl. moms)
The TTW 4-A point source speaker module delivers top-quality sound for highly demanding events indoors or outdoors on small to medium-sized areas. Its design provides the audio engineer with the best tonal balance and intelligibility while maintaining an unobtrusive and adaptable footprint. It is especially suitable for stacked and flown systems when a wide dispersion is required. With all the advantages of TT+ technology, such as coherent directivity, power, and precision, its designed for professional applications.
Model/Varenr.: RCF-TTW4-A
EAN-nummer.: 8024530017569
Leverandør varenr.: 13000573
Lagerstatus: Ikke på lager - Forhør om leveringstid
Favoritliste
Inkl. moms
                0
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                1
                                                                        2
                                                                        3
                                                                        4
                                                                        5
                                                                        6
                                                                        7
                                                                        8
                                                                        9
                                                                        10
                                                                        11
                                                                        12
                                                                        13
                                                                        14
                                                                        15
                                                                        16
                                                                        17

Beskrivelse

RCF TTW4-A point source højttaler

The TTW 4-A point source speaker module delivers top-quality sound for highly demanding events indoors or outdoors on small to medium-sized areas. Its design provides the audio engineer with the best tonal balance and intelligibility while maintaining an unobtrusive and adaptable footprint. It is especially suitable for stacked and flown systems when a wide dispersion is required. With all the advantages of TT+ technology, such as coherent directivity, power, and precision, it’s designed for professional applications.

134 dB max SPL
100° x 50° coverage
LF 2 x 10’’ neodymium woofer, 3.0” voice coil
HF 1.5” Nd comp. driver 4.0” voice coil
2 x Class-D amplifiers, 1600 Watt RMS total power
45 – 20.000 Hz frequency range
RDNet on board
FiRPHASE 0° linear phase

Acoustical specifications
FREQUENCY RESPONSE: 45 Hz ÷ 20000 Hz
MAX SPL @ 1M: 134 dB
HORIZONTAL COVERAGE ANGLE: 100°
VERTICAL COVERAGE ANGLE: 50°

Transducers
COMPRESSION DRIVER: 1 x 1.5'' neo, 4.0'' v.c
WOOFER: 2 x 10'' neo, 3.0'' v.c

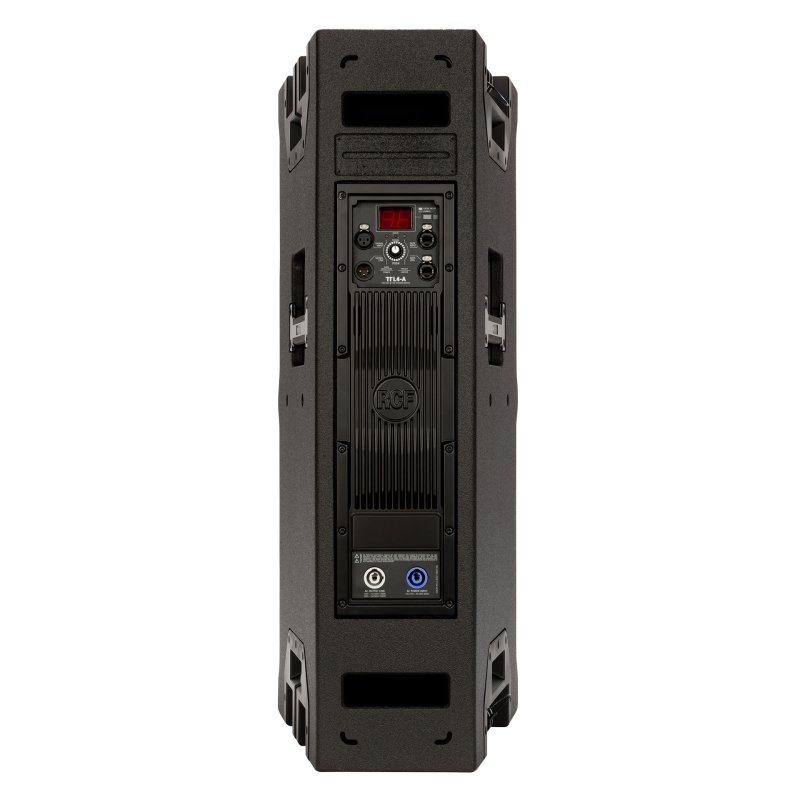

Input/Output section
INPUT SIGNAL: bal/unbal
INPUT CONNECTORS: XLR, RDNet Ethercon
OUTPUT CONNECTORS: XLR, RDNet Ethercon
INPUT SENSITIVITY: +4 dBu

Processor section
CROSSOVER FREQUENCIES: 900Hz
PROTECTIONS: Thermal, RMS
LIMITER: Fast Limiter
CONTROLS: Selectable preset, volume, delay
RDNET: Yes

Power section
TOTAL POWER: 3200 W Peak, 1600 W RMS
HIGH FREQUENCIES: 1200 W Peak, 600 W RMS
LOW FREQUENCIES: 2000 W Peak, 1000 W RMS
COOLING: Convection
CONNECTIONS: Powercon IN/OUT

Standard compliance
CE MARKING: Yes

Physical specifications
CABINET/CASE MATERIAL: Baltic birch plywood

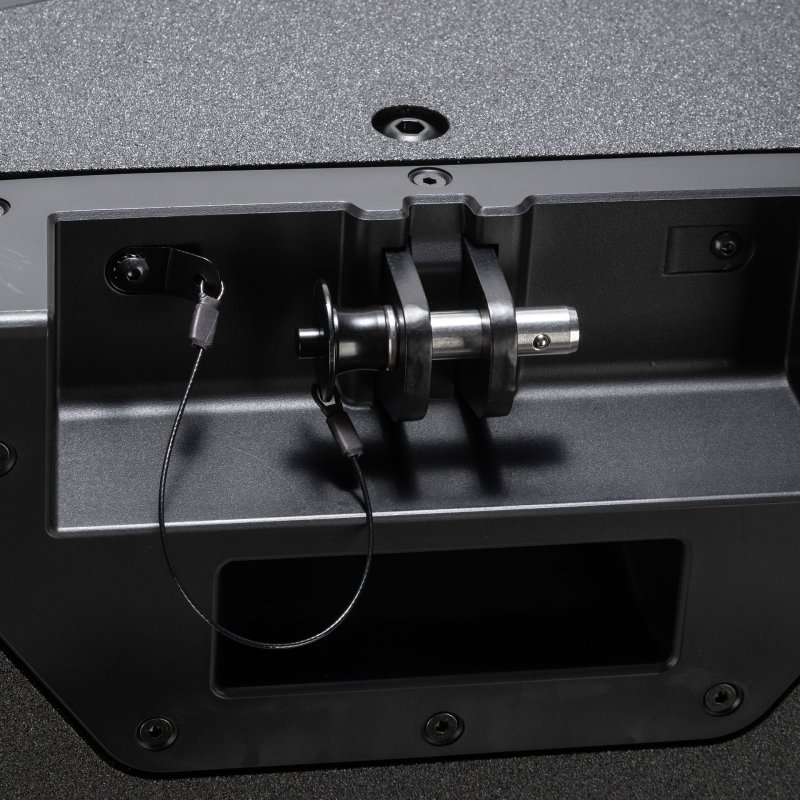

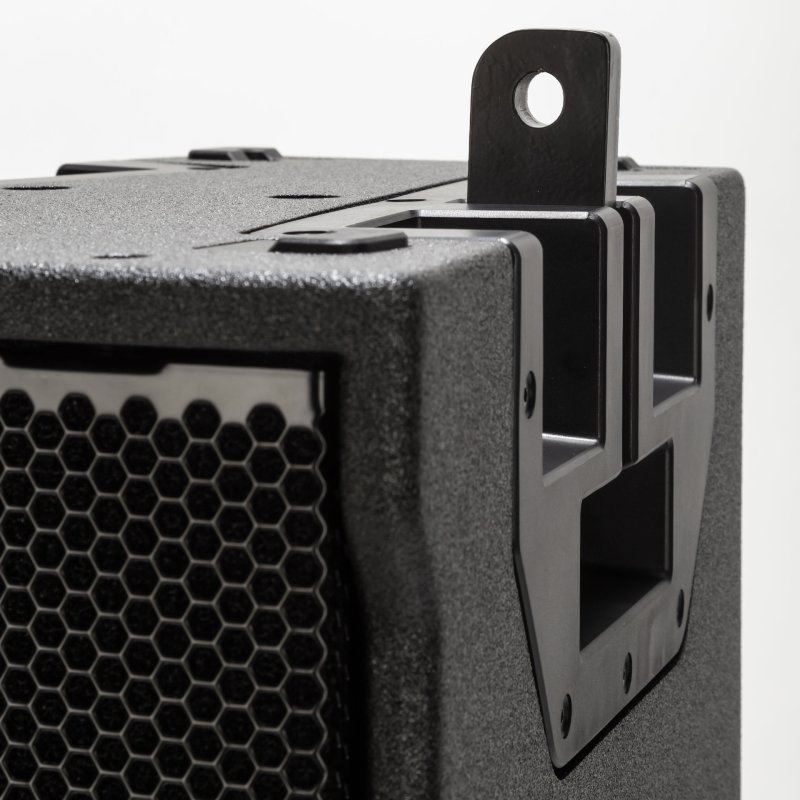

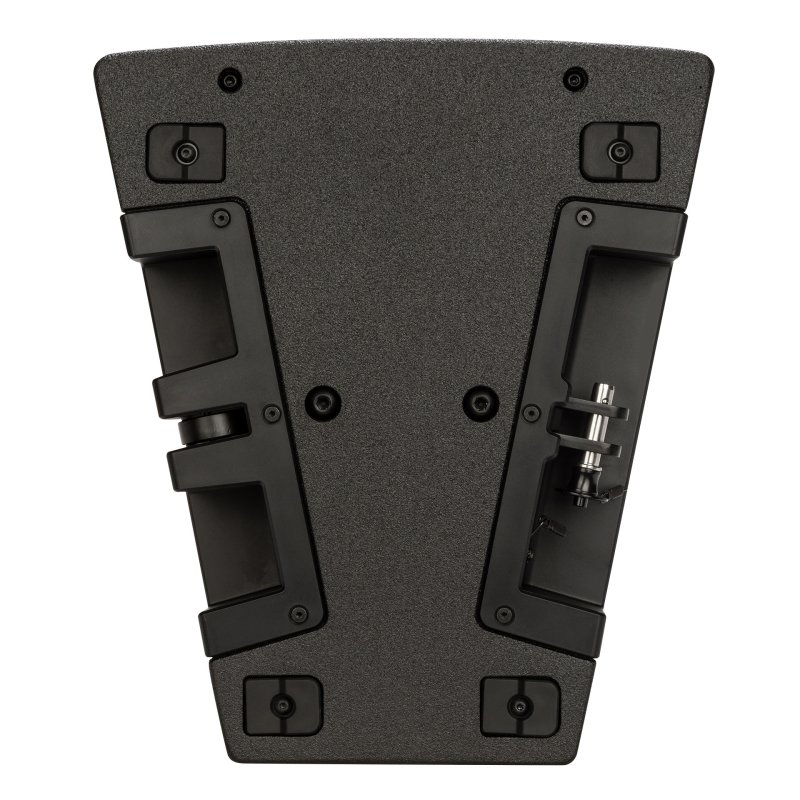

HARDWARE: Array fittings, 2xM10 on the top, 2xM8 on each side

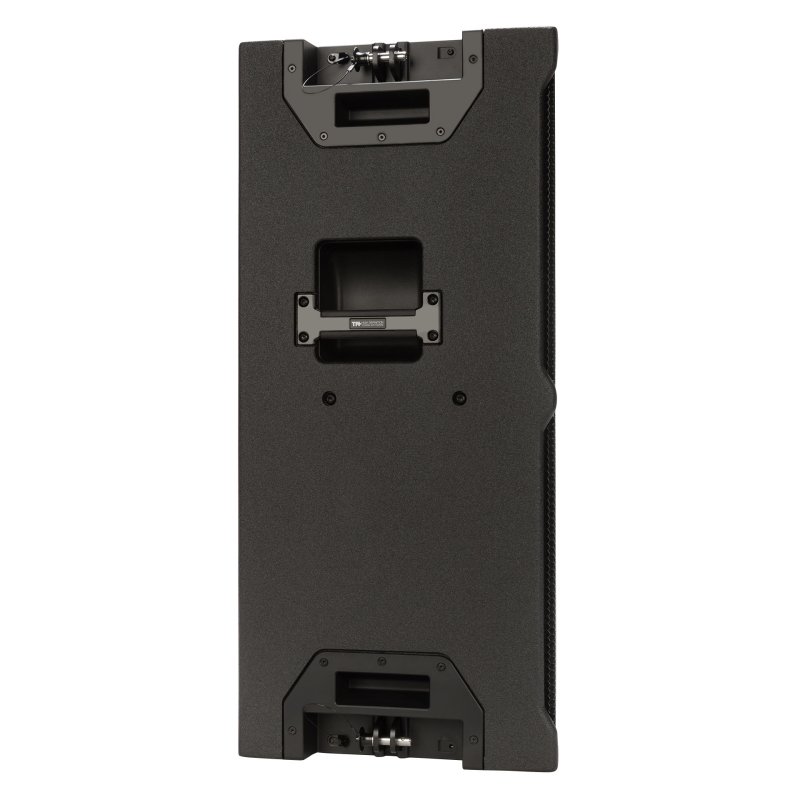

HANDLES:
2 Side, 2 Rear

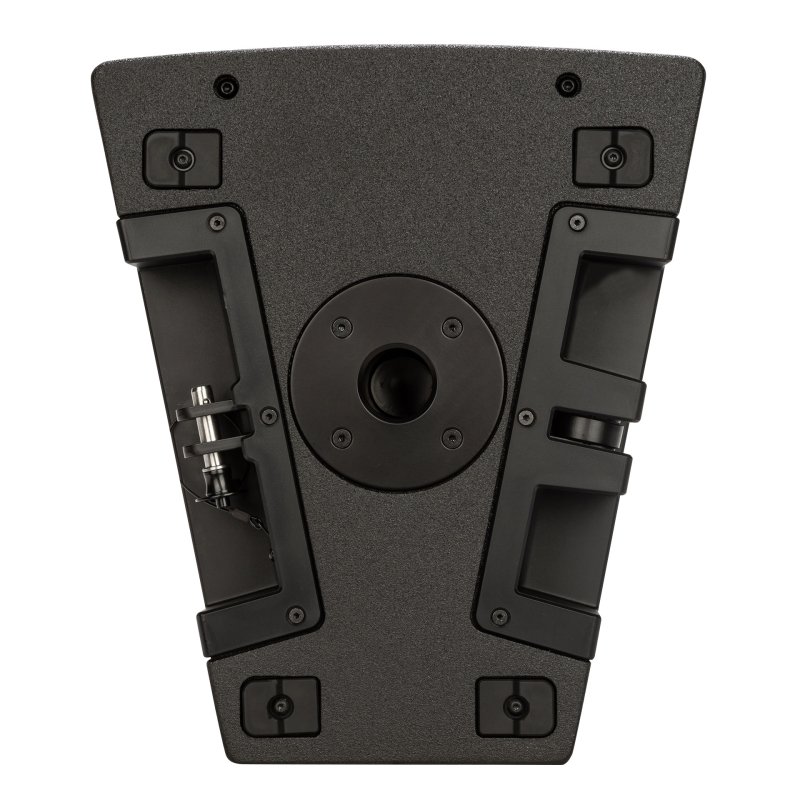

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black
Size

Specifikationer

Akustiske specifikationer

Effekt: 3200 W Peak, 1600 W RMS
Max SPL @ 1M: 134 dB
Frekvensrespons: 45 Hz ÷ 20000 Hz
Spredning: H=100° V50°
Driver: 1.5'' neo, 4.0'' v.c
Woofer: 2 x 10'' neo, 3.0'' v.c

Tilslutninger

In-put: XLR, RDNet Ethercon
Out-put: XLR, RDNet Ethercon

Størrelse

Vægt: 30,4 kg
Bredde: 316 mm
Dybde: 369 mm
Højde: 825 mm

Forsendelsesinformation

Pakke Bredde: 410 mm
Pakke Dybde: 365 mm
Pakke højde: 865 mm
Pakke Vægt: 33,5 kg
