RCF TTL 4-A aktiv højttaler 100 x 25 gr 135dB Spl

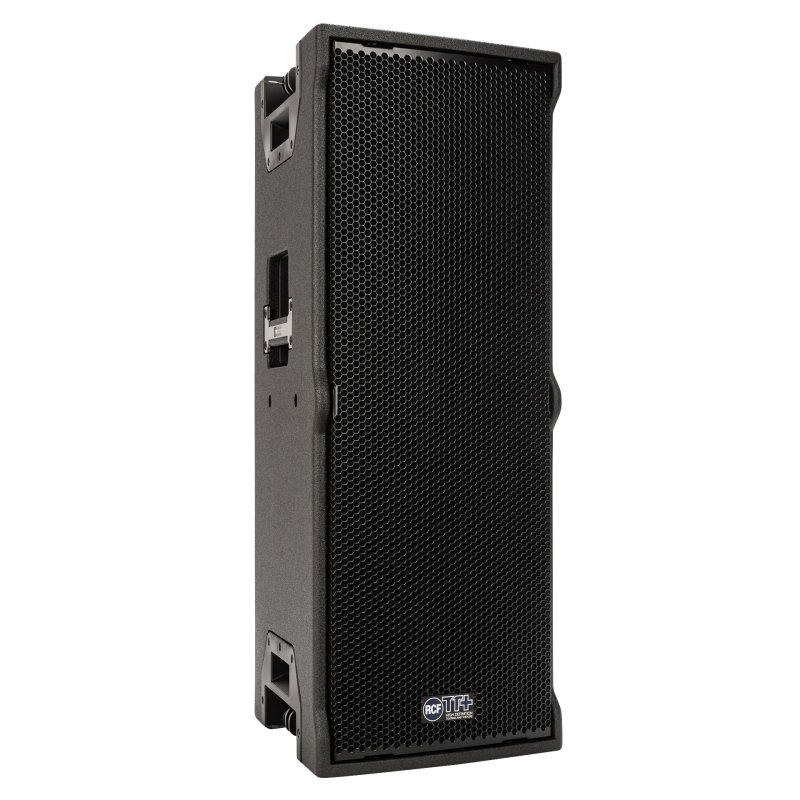

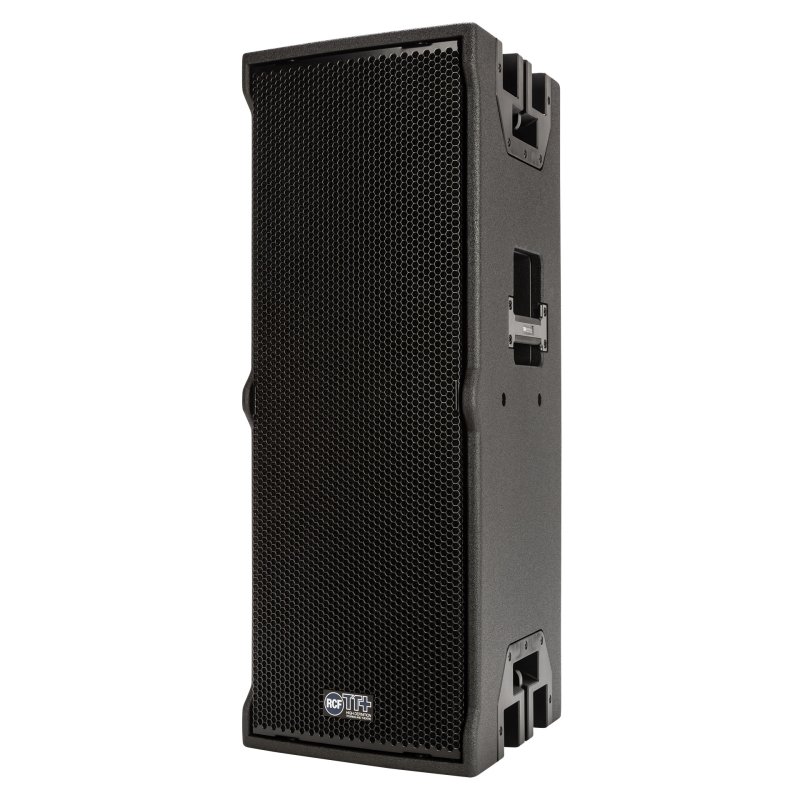

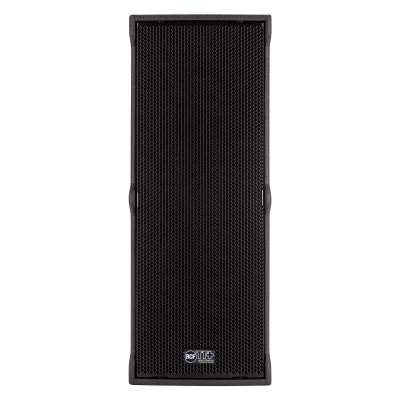

RCF TTL4-A Aktiv 2-vejs array højttaler

The TTL 4-A speaker module delivers top-quality sound for highly demanding events indoors or outdoors on small to medium-sized areas. Its design provides the audio engineer with the best tonal balance and intelligibility while maintaining an unobtrusive and adaptable footprint. With all the advantages of TT+ technology, such as high directivity, long-range, power, and precision, it’s designed for professional applications.

135 dB max SPL
100° x 25° coverage
LF 2 x 10’’ neodymium woofer, 3.0� voice coil
HF 1.5� Nd comp. driver 4.0� voice coil
2 x Class-D amplifiers, 1600 Watt RMS total power
45 – 20.000 Hz frequency range
RDNet on board
FiRPHASE 0° linear phase

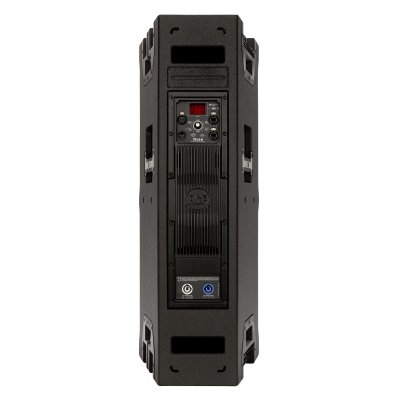

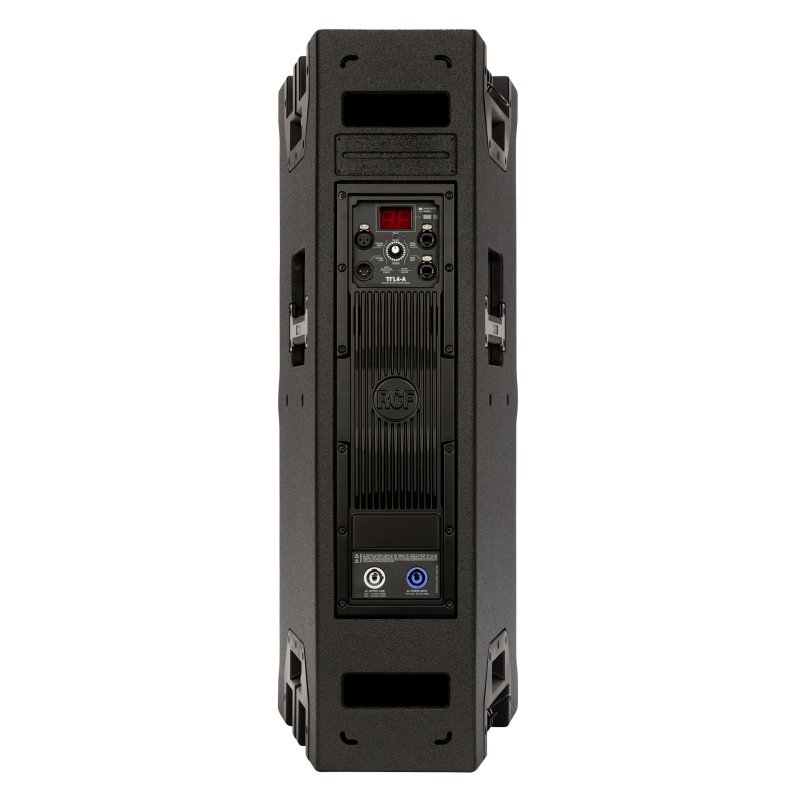

Input/Output section
INPUT SIGNAL: bal/unbal
INPUT CONNECTORS: XLR, RDNet Ethercon
OUTPUT CONNECTORS: XLR, RDNet Ethercon
INPUT SENSITIVITY: +4 dBu

Processor section
CROSSOVER FREQUENCIES: 900Hz
PROTECTIONS: Thermal, RMS
LIMITER: Fast Limiter
CONTROLS: Selectable preset, volume, delay
RDNET: Yes

Power section
TOTAL POWER: 3200 W Peak, 1600 W RMS
HIGH FREQUENCIES: 1200 W Peak, 600 W RMS
LOW FREQUENCIES: 2000 W Peak, 1000 W RMS
COOLING: Convection
CONNECTIONS: Powercon IN/OUT

Standard compliance
CE MARKING: Yes

Physical specifications
CABINET/CASE MATERIAL: Baltic birch plywood

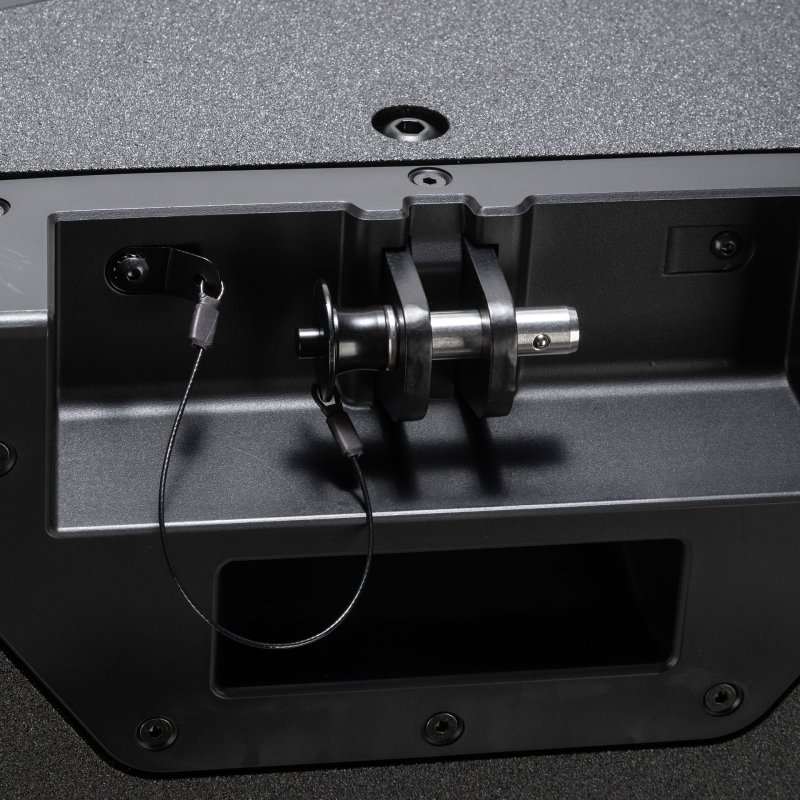

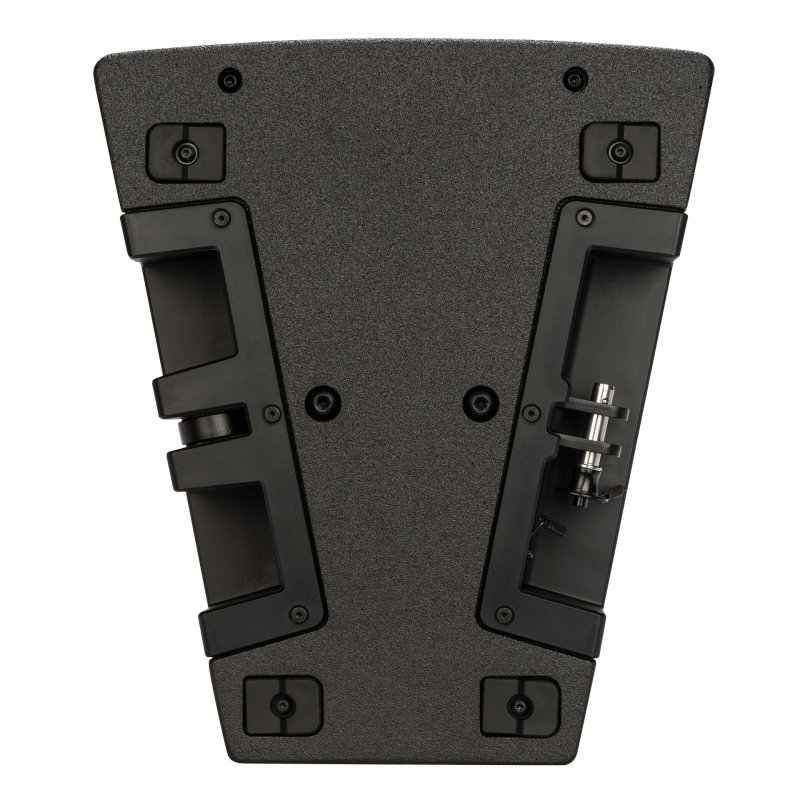

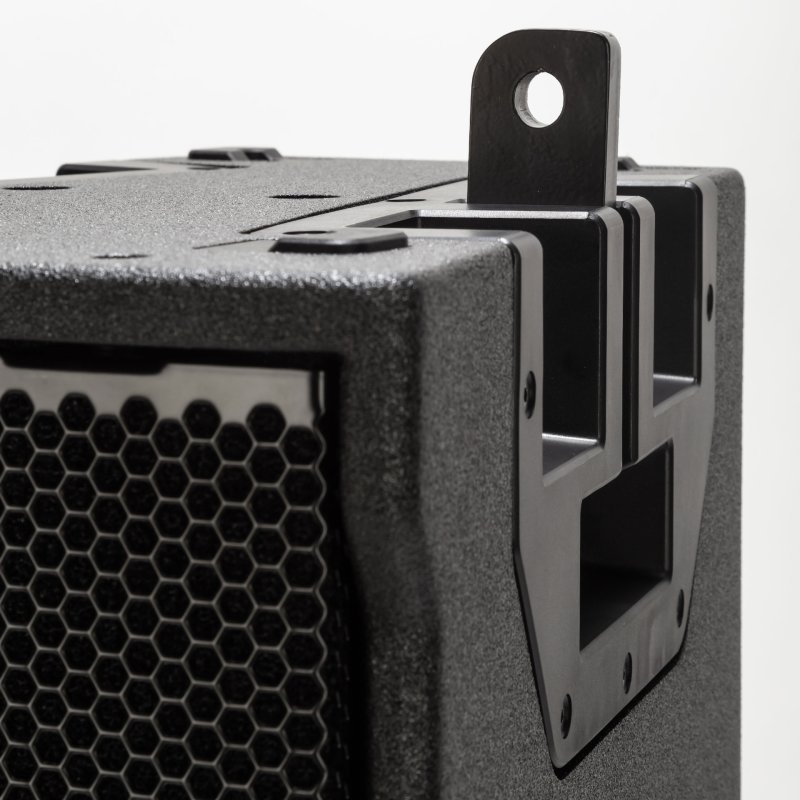

HARDWARE: Array fittings, 2xM10 on the top, 2xM8

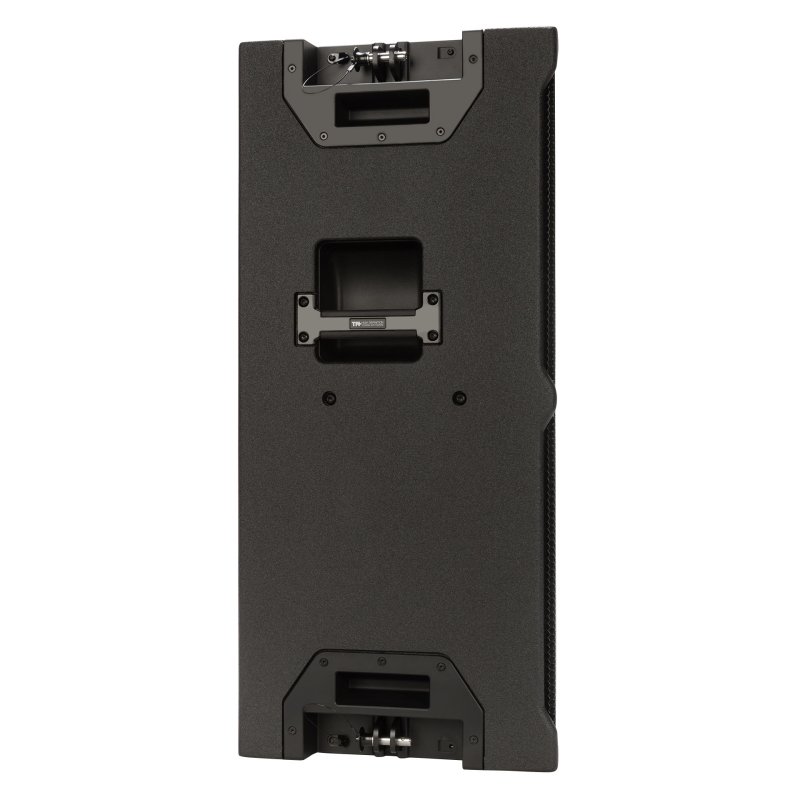

HANDLES: 2 side, 2 rear

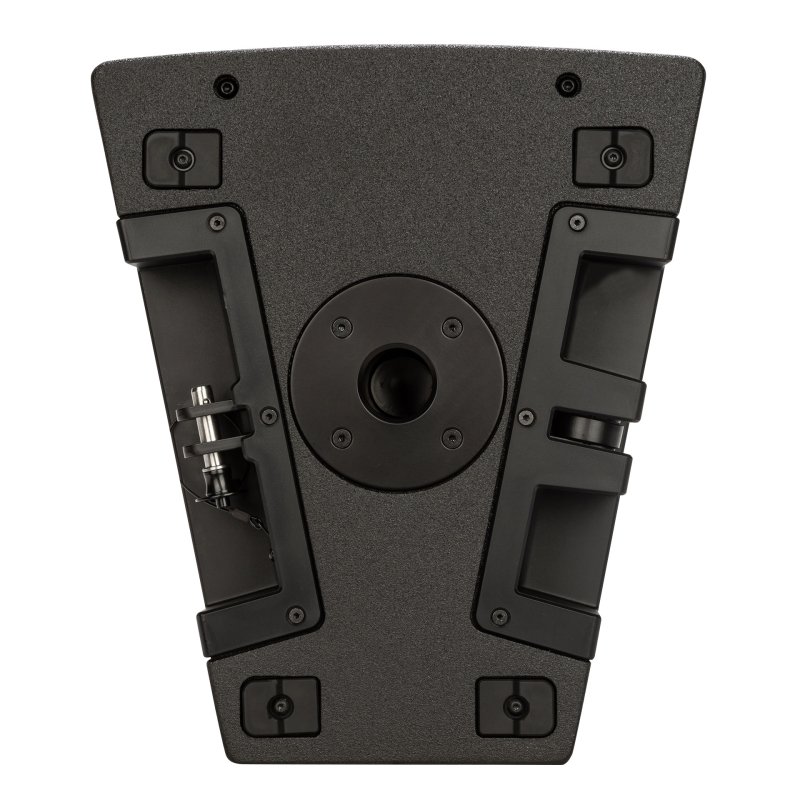

POLE MOUNT/CAP: Yes

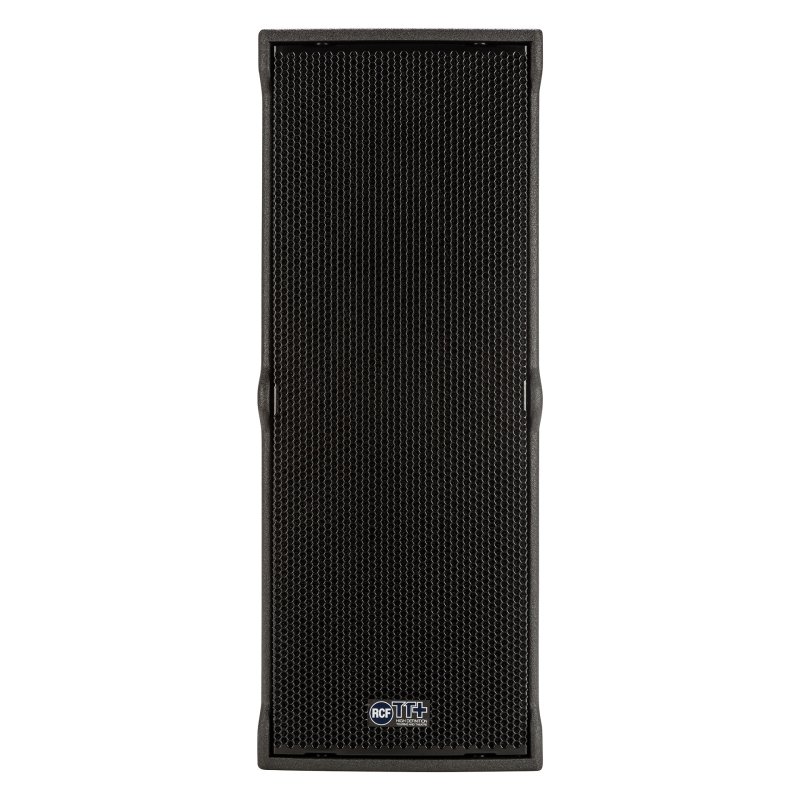

GRILLE: Steel
COLOR: Black

Akustiske specifikationer

Effekt:	3200 W Peak
Max SPL @ 1M:	135 dB
Frekvensrespons:	45 Hz ÷ 20000 Hz
Spredning:	H=100° V=25°
Driver:	1.5'' neo, 4.0'' v.c
Woofer:	2 x 10'' neo, 3.0'' v.c

Tilslutninger

In-put:	XLR, RDNet Ethercon
Out-put:	XLR, RDNet Ethercon

Størrelse

Vægt:	30,4 kg
Bredde:	316 mm
Dybde:	369 mm
Højde:	825 mm

Forsendelsesinformation

Pakke Bredde:	410 mm
Pakke Dybde:	365 mm
Pakke højde:	865 mm
Pakke Vægt:	33,5 kg
