RCF ART912-A digital aktiv højttaler 2100 W 130dB SPL

Beskrivelse

Specifikationer

Beskrivelse

RCF ART912-A aktiv højttaler

ART 9-serien er en udvikling af ART-højttalerkonceptet og en revolution inden for bærbar lyd. Med RCF-byggekvalitet og fyldt med førsteklasses funktioner er det den mest alsidige højttaler til professionelle applikationer - på farten, på scenen og er også velegnet til fast installation. Det nye bi-forstærkede 2.100 W elektroakustiske design giver imponerende lydtryksniveauer (SPL), selv når det bruges i udendørs omgivelser og lange afstande, hvilket giver fantastisk lydkvalitet.

Up to 130 dB Sound Pressure Level
2100W Class-D Bi-Amplification
50-20000 Hz linear frequency response
1.75" Compression Driver
12" Woofer
FiRPHASE zero degrees phase technology
Bass Motion Control woofer excursion management

Up to 130 dB Sound Pressure Level
2100W Class-D Bi-Amplification
50-20000 Hz linear frequency response
1.75" Compression Driver
12" Woofer

FiRPHASE zero degrees phase technology
Bass Motion Control woofer excursion management
ART 912-A is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of a 1.75" compression driver, 12" woofer, two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL, distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown, the ART 912-A packs high-performance and reliability in a compact enclosure. Designed to be the most flexible loudspeaker in its class, it also features multiple rigging points for fixed installation. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute clarity and deep, powerful bass response. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.

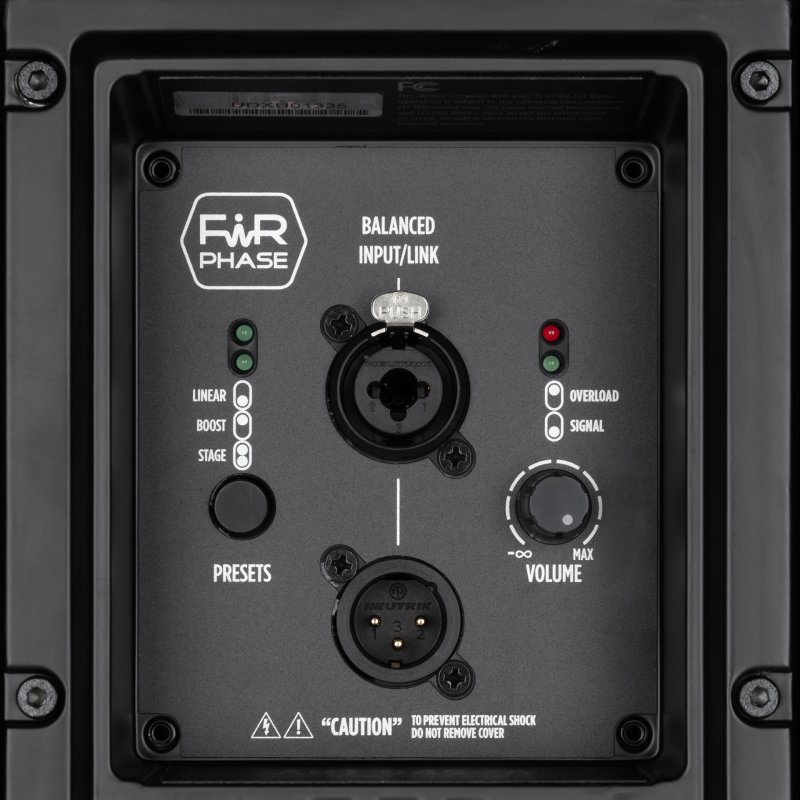

Input/Output section
INPUT SIGNAL: bal/unbal
INPUT CONNECTORS: XLR, Jack
OUTPUT CONNECTORS: XLR
INPUT SENSITIVITY: -2 dBu/+4 dBu

Processor section
CROSSOVER FREQUENCIES: 1800 Hz
PROTECTIONS: Thermal, RMS
LIMITER: Soft Limiter
CONTROLS: Linear, Boost, Stage, Volume

Physical specifications
CABINET/CASE MATERIAL: PP Composite
HARDWARE: 1 x M10 Top, 1 x M10 each side
HANDLES: 1 Top , 1 each side
POLE MOUNT/CAP: Yes
GRILLE: Steel
COLOR: Black

Specifikationer

Akustiske specifikationer

Effekt:	2100 W Peak
Max SPL @ 1M:	130 dB
Frekvensrespons:	50 Hz ÷ 20000 Hz
Spredning:	H=100° V=60°
Driver:	1.0'', 1.75'' v.c
Woofer:	12'', 2.5'' v.c

Tilslutninger

In-put:	XLR, Jack
Out-put:	XLR

Information

Type:	Aktiv
Model:	ART 9 serie
Farve:	Sort
Størrelse:	12"

Størrelse

Vægt:	19 kg
Bredde:	370 mm
Dybde:	363 mm
Højde:	642 mm

Forsendelsesinformation

Pakke Bredde:	430 mm
Pakke Dybde:	423 mm
Pakke højde:	685 mm
Pakke Vægt:	21,2 kg
