Senrun mikrofon modtager modul single diversity til EP-serie

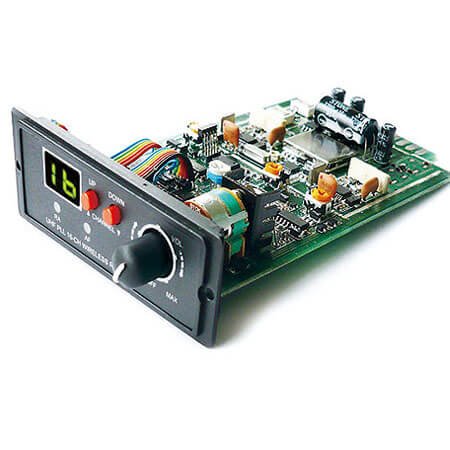

Senrun USR-6FD trådløs modtager modul

Passer til EP800 og EP810

Leveres i Danmark i godkendte og lovlige frekvenser (6A) 620 til 644 MHz

Single wireless receiver module
RF/AF signal indicator
Selecting channel by clicking up and down button


Model USR-6FD
Frequency 600-960 MHz
S/N ratio >100dB
Frequency response 50Hz~15KHz
T.H.D Selectable channels 16
Reception mode Single Receiver
Oscillation mode Microprocessor PLL synthesized controlled
Spurious >85dB
Sensitivity -95dBm
Stability ±0.005%
Deviation ±40KHz
Power supply 12V DC
Dimensions( W x H x D ) 130x70 mm
Weight (approx.) 75 g

Information

Frekvens:	6A - 620~644 MHz
Type:	Højttaler modul
