RCF Scene monitor TT20-CXA aktiv
RCF Scene monitor TT20-CXA aktiv
RCF Scene monitor TT20-CXA aktiv
RCF Scene monitor TT20-CXA aktiv
RCF Scene monitor TT20-CXA aktiv
RCF Scene monitor TT20-CXA aktiv

RCF Scene monitor TT20-CXA aktiv

21.987,50 DKK (inkl. moms)
RCF Aktiv scene monitor TT20-CXA
Model/Varenr.: RCF-TT20-CXA
EAN-nummer.: 8024530016807
Leverandør varenr.: 13000544
Lagerstatus: Ikke på lager - Forhør om leveringstid
Favoritliste
Inkl. moms
                0
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                1
                                                                        2
                                                                        3
                                                                        4
                                                                        5
                                                                        6
                                                                        7
                                                                        8
                                                                        9
                                                                        10
                                                                        11
                                                                        12
                                                                        13
                                                                        14
                                                                        15
                                                                        16
                                                                        17

Beskrivelse

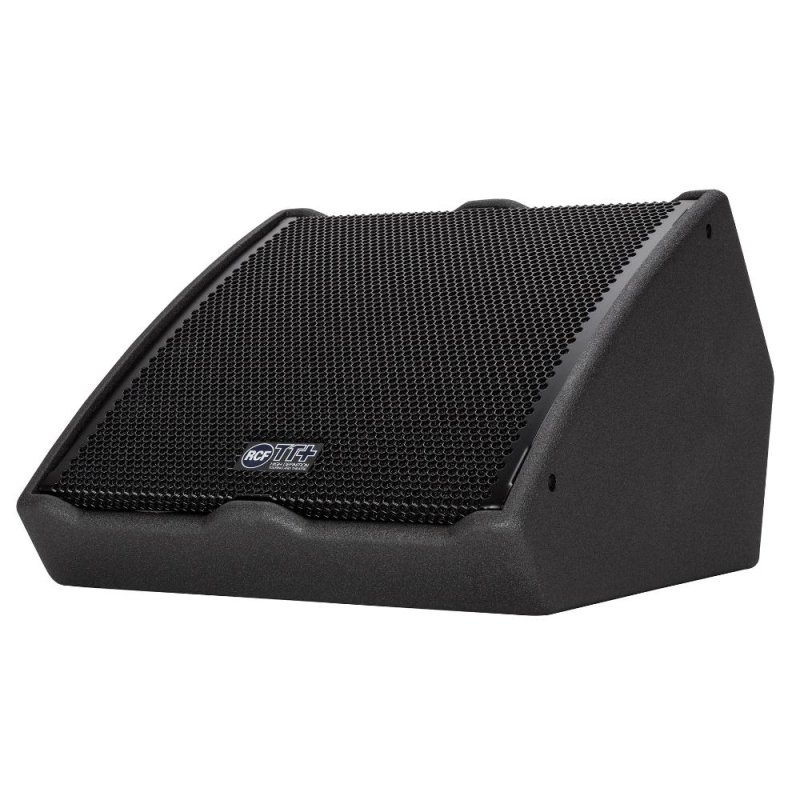

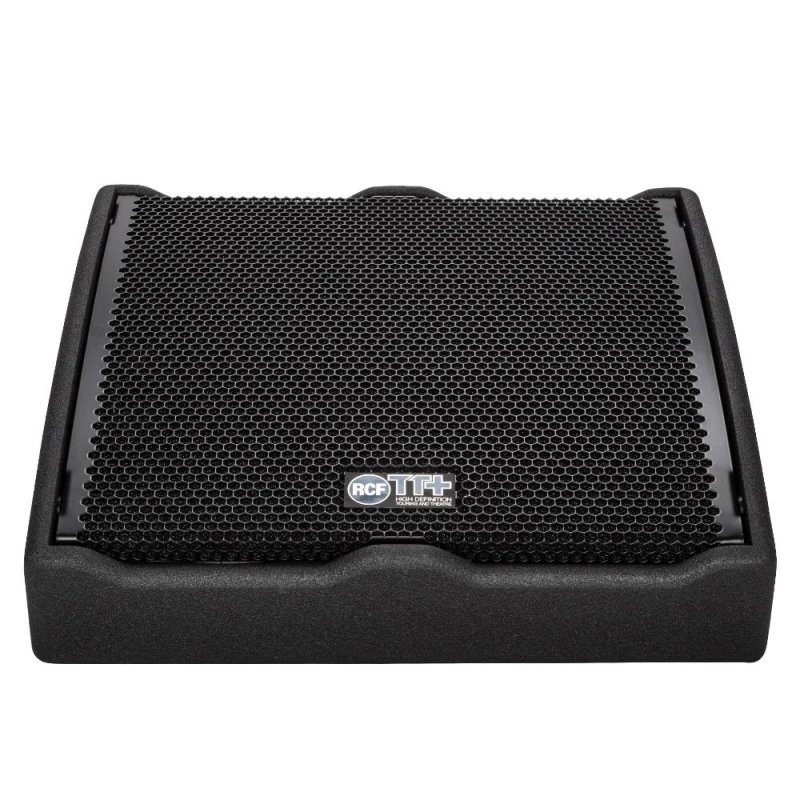

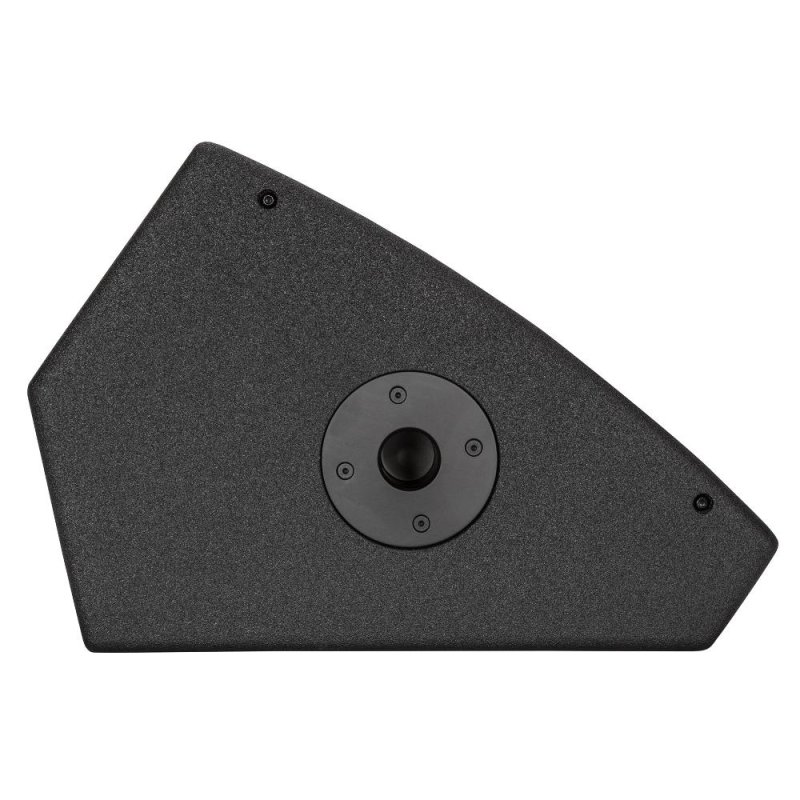

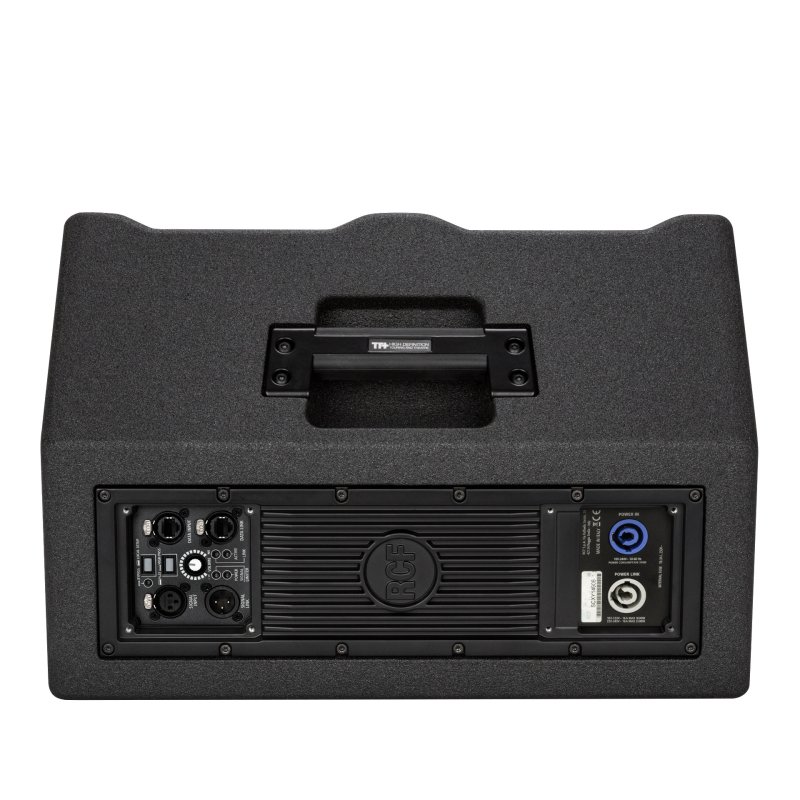

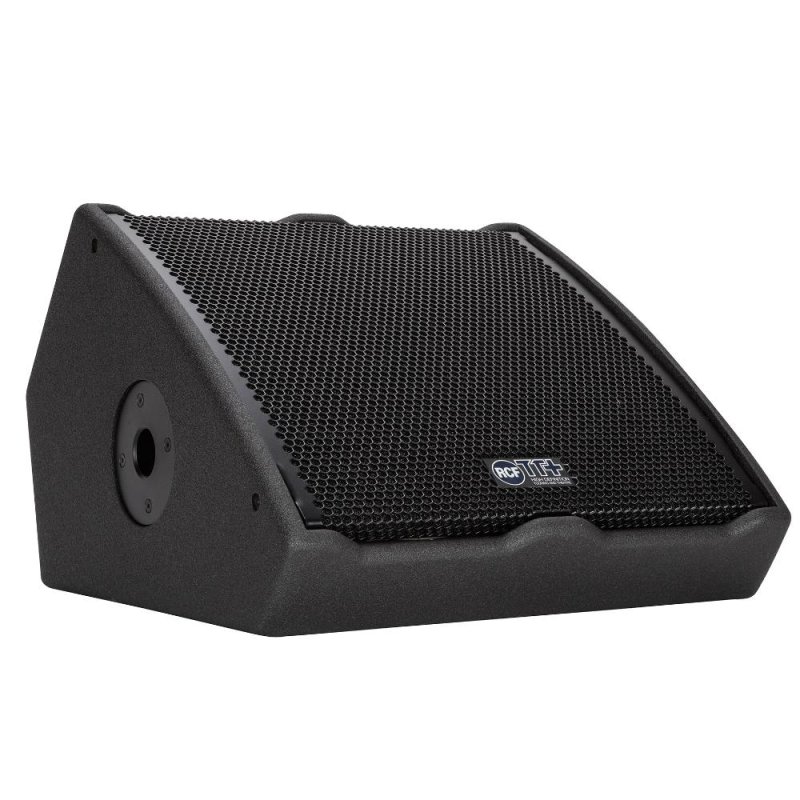

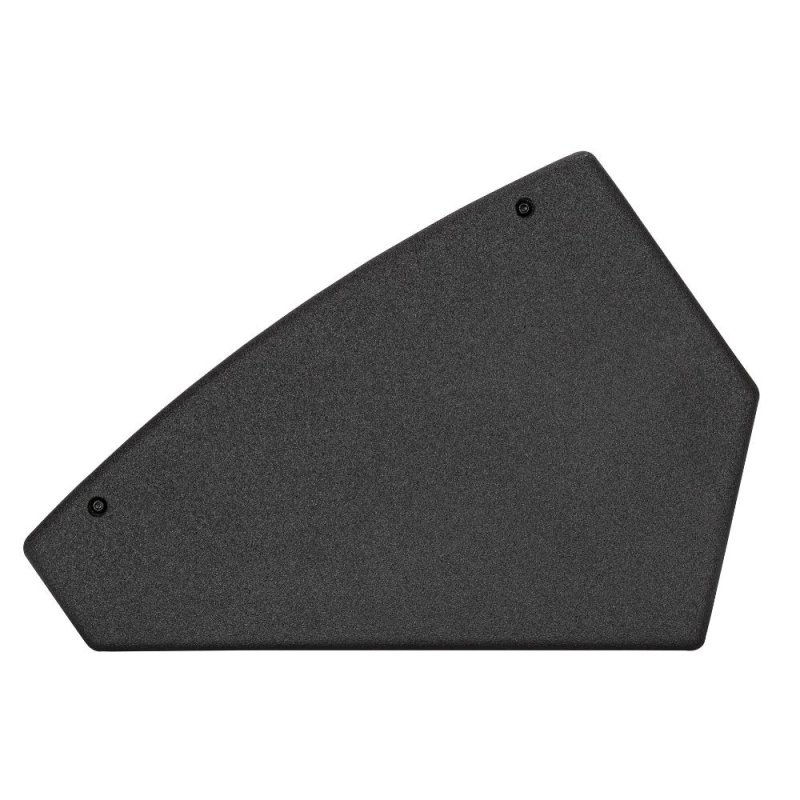

RCF TT20-CXA aktiv scene monitor

This active high output stage monitor is a full range, low-profile enclosure with symmetrical transducers arrangement. The optimized frequency and phase response, consistent coverage of 90° x 70°, and potent acoustic output make the TT20-CXA the professional choice for any stage as a monitor or, thanks to the pole socket, as full range front of house system. With an exceptional transient response and the powerful FiRPHASE processing, the TT CXA series far exceeds the capabilities of conventional stage monitors.

131 dB SPL Max
1000W RMS, two-way Class-D amplifier
90° x 70° constant directivity coverage
Multifuncional cabinet with symmetrical transducers’ design
FiRPHASE
2 x 8’’ neodymium Woofers, 2.5’’ voice coil
Horn loaded 1.4” neo comp. driver, 3’’ voice coil
RDNet Networked Management

INPUT/OUTPUT SECTION
Input signal: bal/unbal
Input connectors: XLR, RDNet Ethercon
Output connectors: XLR, RDNet Ethercon
Input sensitivity: -2 dBu/+4 dBu

ROCESSOR SECTION
Crossover Frequencies: 900 Hz
Protections: Thermal, HF
Limiter: Fast Limiter
Controls: Bypass, Linear/High Pass, Volume, RDnet on boar
RDNet: Yes

POWER SECTION
Total Power: 2000 W Peak, 1000 W RMS
High frequencies: 600 W Peak, 300 W RMS
Low frequencies: 1400 W Peak, 700 W RMS
Cooling: Convection
Connections: Powercon IN/OUT

PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Baltic birch plywood
Handles: 1 TOP
Grille: Steel
Color: Black

Specifikationer

Akustiske specifikationer

Effekt: 2000 W Peak
Max SPL @ 1M: 131 dB
Frekvensrespons: 60 Hz ÷ 20000 Hz
Spredning: H=90° V=60°
Driver: 1 x 1.5'' neo, 3.0'' v.c
Woofer: 2 x 8'' neo, 2.5'' v.c

Tilslutninger

In-put: XLR, RDNet Ethercon
Out-put: XLR, RDNet Ethercon

Størrelse

Vægt: 14 kg
Bredde: 445 mm
Dybde: 450 mm
Højde: 318 mm

Forsendelsesinformation

Pakke Bredde: 490 mm
Pakke Dybde: 375 mm
Pakke højde: 500 mm
Pakke Vægt: 16,4 kg
