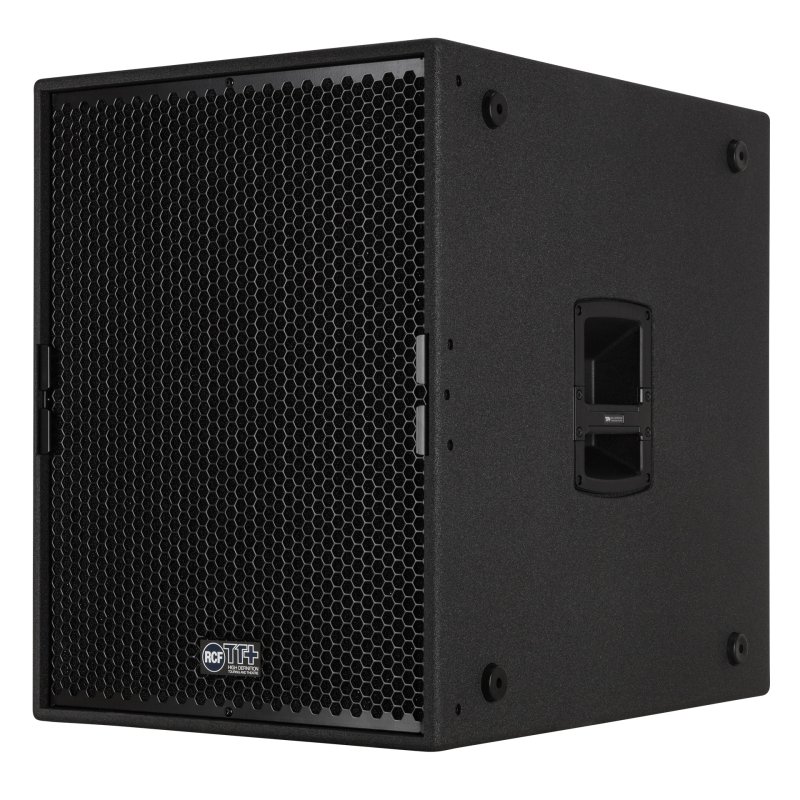

RCF Subwoofer TTS18-A mk2 aktiv highpower 18" RDNet

RCF TTS18-A mk2 Subwoofer

RCF TTS18-A er en kompakt aktiv 18" Subwoofer idel i kombination med TT+ serien.
TTS18 er letvægt med Neodymium magnet og Inside-outside kobber voice coil.
Vand resistant behandling af enheden.
1400 Watt RMS SMPS class-D forstærker modul med fuld DSP og RDNet.

136 dB SPL Max35-400 Hz Frequency Range1 x 18" Hyper Vented woofer, 4" Voice CoilDSP Controlled Input Section with selectable presets (e.g.cardioid)1400W RMS Class-D AmplifierRDNet remote monitoring and controlVertical and horizontal placement with M20 pole receptacle on top and sideBaltic Birch Cabinet
Acoustical Specifications
Frequency Response -3 dB: 30 Hz ÷ 400 Hz
Max SPL: 137 dB
Woofer: 18"neo, 4.0" v.c.

Input/Output Section
Input signal: bal/unbal
Input connectors: XLR, RDNet Ethercon
Output connectors: XLR, RDNet Ethercon
Input sensitivity: +4 dBu

Processor Section
Crossover frequencies: HI-PASS FREQUENCIES: 30 Hz, 40 Hz LOW-PASS FREQUENCIES: Variable from 50 Hz to 100 Hz Hz
Protections: Thermal, RMS
Limiter: Fast Limiter
Controls: Gain, Eq., Preset Switch, Output Delay

Amplifier Specifications
Total power: 2800 W PEAK
Low frequencies: 2800 W PEAK
Total power: 1400 W RMS
Low frequencies: 1400 W RMS
Cooling: Forced

Connections:
Powercon IN/OUT

Cabinet
Cabinet Material: Baltic birch plywood
Hardware: 2xM20
Handles: 2 Side
Grille: Steel
Colour: Black

Akustiske specifikationer

Effekt:	2800 W Peak, 1400 W RMS
Max SPL @ 1M:	137 dB
Frekvensrespons:	30 Hz ÷ 400 Hz
Woofer:	1 x 18'' neo, 4.0'' v.c

Tilslutninger

In-put:	XLR, RDNet Ethercon
Out-put:	XLR, RDNet Ethercon

Størrelse

Vægt:	52 kg
Bredde:	540 mm
Dybde:	732 mm
Højde:	708 mm

Forsendelsesinformation

Pakke Bredde:	800 mm
Pakke Dybde:	610 mm
Pakke højde:	780 mm
Pakke Vægt:	56,8 kg
