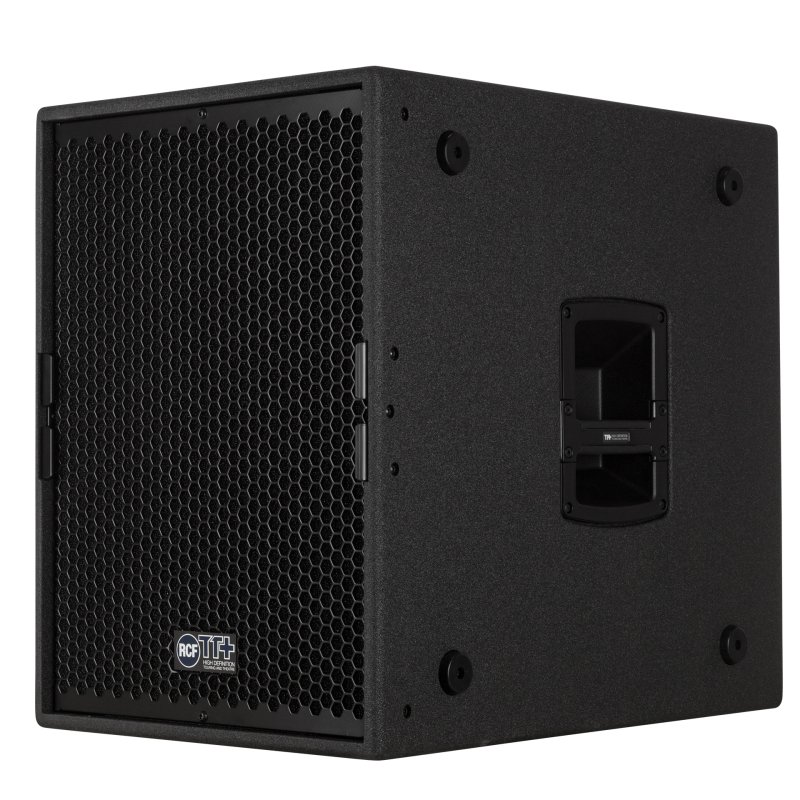

RCF Subwoofer TTS15-A aktiv highpower 15" 1100W

RCF TTS15-A Subwoofer

RCF TTS15-A er en kompakt high output Subwoofer idel til serien af TT+ Touringsystemer.
Letvægt 36,5 der gør den nem at håndtere og transportere.
Vejrbestanding kabinet med 15" bas enhed powered med 1100 Watt RMS SMPS class-D forstærker med fuld DSP og RDNet.

134 dB SPL Max
40-400 Hz Frequency Range
1 x 15" woofer
DSP Controlled Input Section with selectable presets (e.g.cardioid)
1100W RMS Class-D Amplifier
RDNet remote monitoring and control
Vertical and horizontal placement with M20 pole receptacle on top and side
Baltic Birch Cabinet

Acoustical Specifications
Frequency Response -3 dB: 40 Hz ÷ 400 Hz
Max SPL: 134 dB
Woofer: 15", 3.0" v.c.

Input/Output Section
Input signal: bal/unbal
Input connectors: XLR, RDNet Ethercon
Output connectors: XLR, RDNet Ethercon
Input sensitivity: +4 dBu

Processor Section
Crossover frequencies: HI-PASS FREQUENCIES: 40 Hz, 50 Hz LOW-PASS FREQUENCIES: Variable from 60 Hz to 400 Hz Hz
Protections: Thermal, RMS
Limiter: Fast Limiter
Controls: Gain, Eq., Preset Switch, Output Delay

Amplifier Specifications
Total power: 2200 W PEAK
Low frequencies: 2200 W PEAK
Total power: 1100 W RMS
Low frequencies: 1100 W RMS
Cooling: Convection
Connections:Powercon IN/OUT

Cabinet
Cabinet Material: Baltic birch plywood
Hardware: 2xM20
Handles: 2 Side
Grille: Steel
Colour: Black

Akustiske specifikationer

Effekt:	2200 W Peak
Max SPL @ 1M:	134 dB
Frekvensrespons:	40 Hz ÷ 400 Hz
Woofer:	1 x 15'', 3.0'' v.c

Tilslutninger

In-put:	XLR, RDNet Ethercon
Out-put:	XLR, RDNet Ethercon

Størrelse

Vægt:	36,5 kg
Bredde:	445 mm
Dybde:	633 mm
Højde:	600 mm

Forsendelsesinformation

Pakke Bredde:	705 mm
Pakke Dybde:	520 mm
Pakke højde:	670 mm
Pakke Vægt:	41,3 kg
