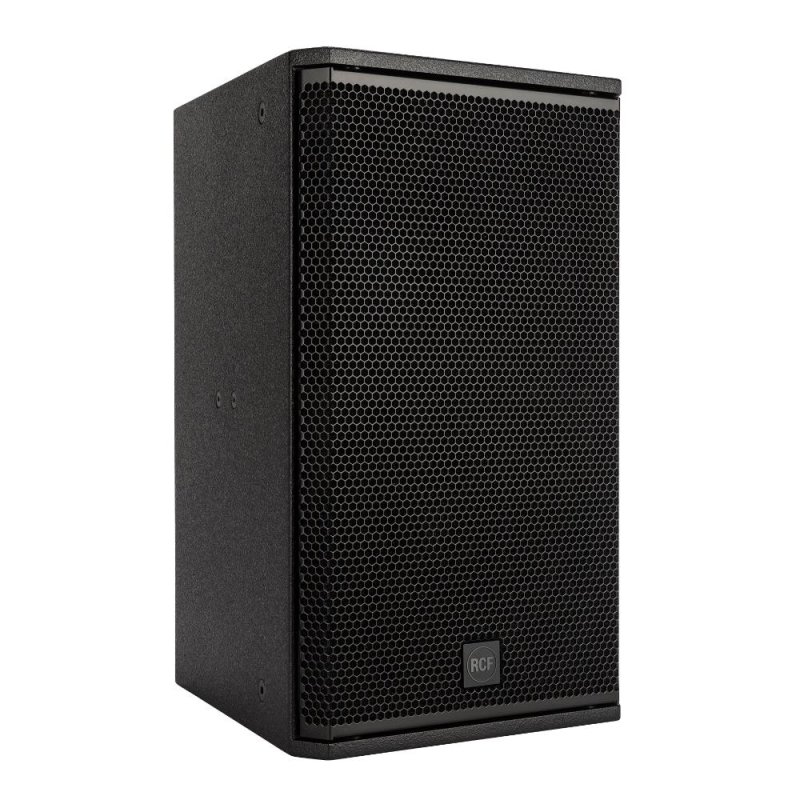

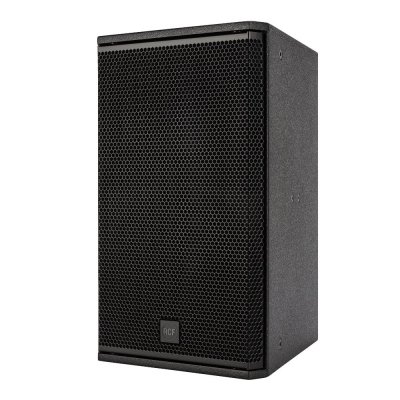

RCF Compact M12 passiv højttaler 12", 300W 129 dB SPL, Sort

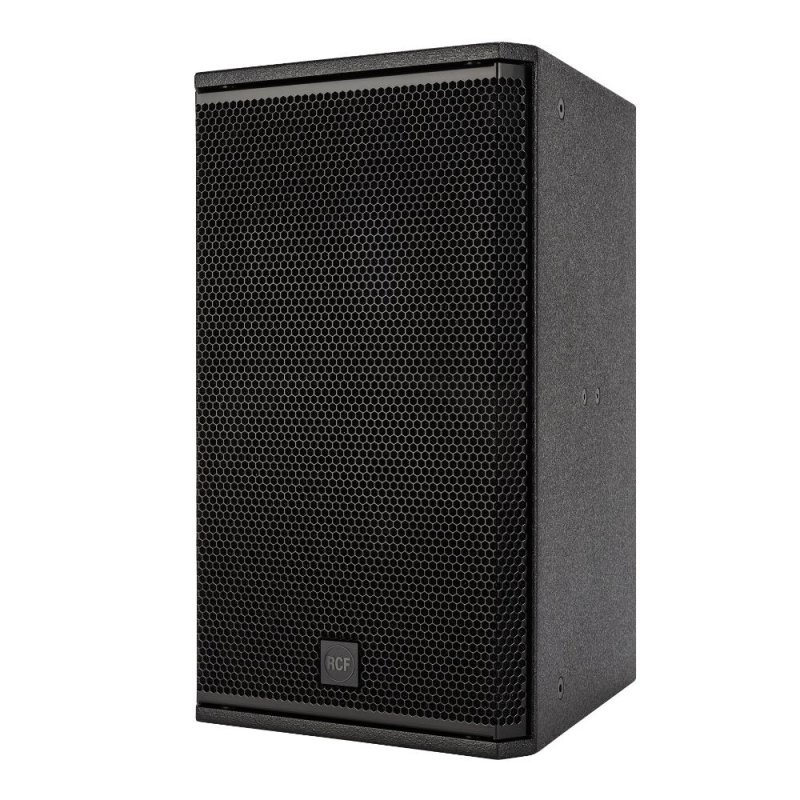

RCF COMPACT M 12 passiv højttaler

COMPACT M 12 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications.
Its balanced sound is a big asset in near-field applications for the best intelligibility.
The M 12 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided compression driver.
The SPL level of low-distortion audio the M 12 can provide goes far beyond expectations of such a compact solution.
The elegant and compact design with accurate finishing makes M 12 suitable for almost any environment, even with architectural constraints.
Optional mounting accessories allow using M 12 on wall or ceiling installations.


300 W RMS power handling
129 dB max SPL
55 ÷ 20000 Hz frequency range
90° x 70° constant directivity coverage angle

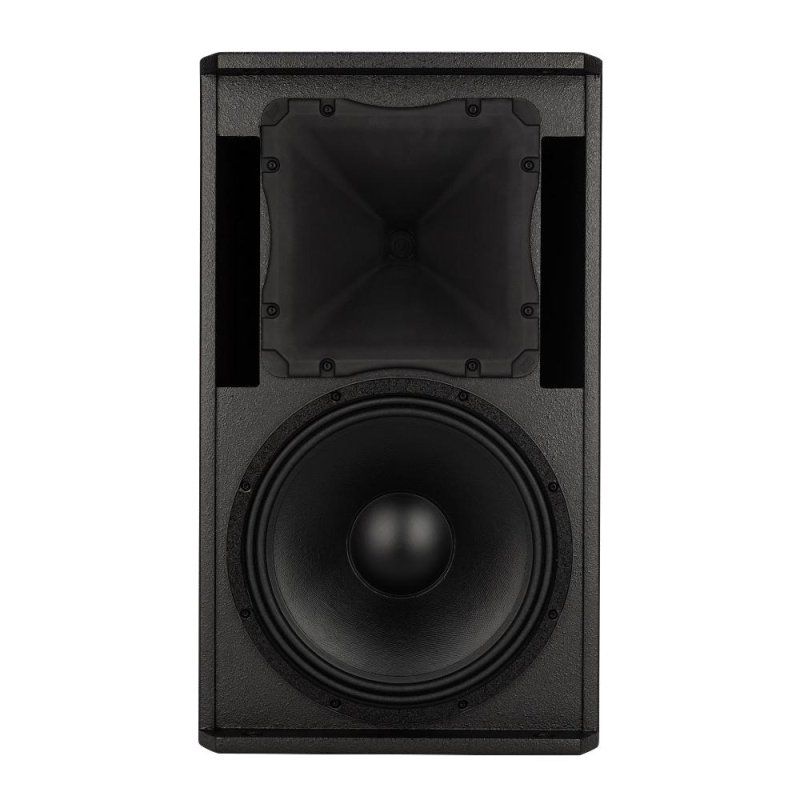

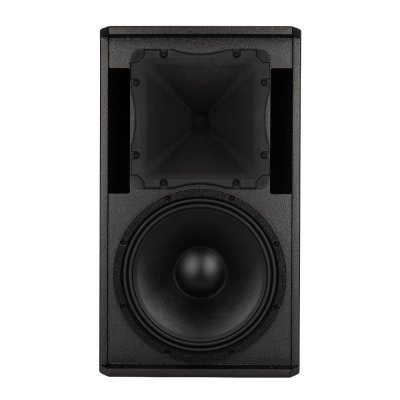

1 x 12" high power woofer
1 x 1.4" voice coil compression driver
High quality plywood cabinet

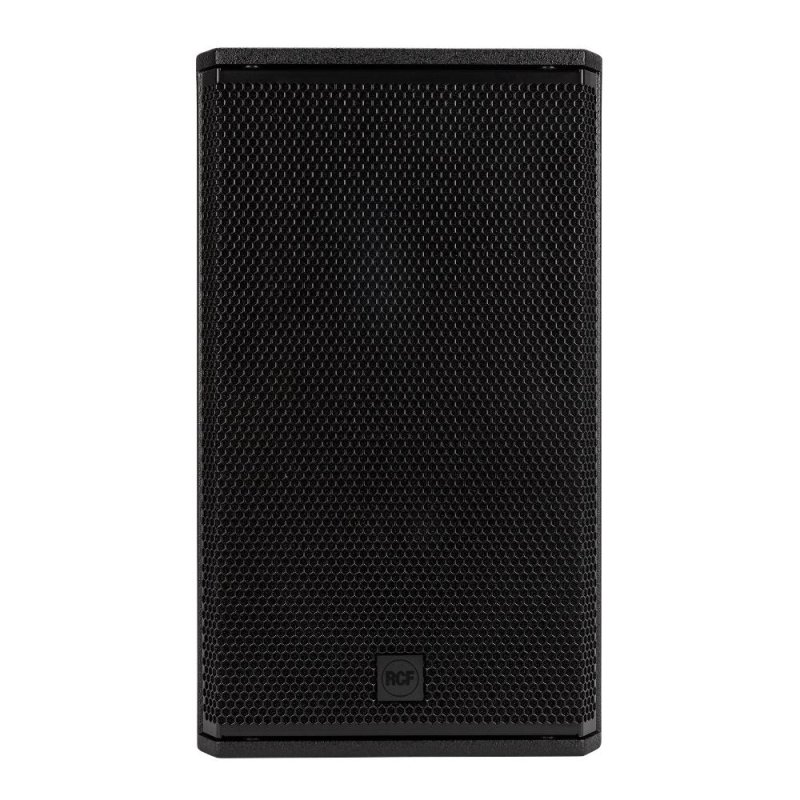

Steel front grille with clothing
Installation points available on rear, top and bottom panels

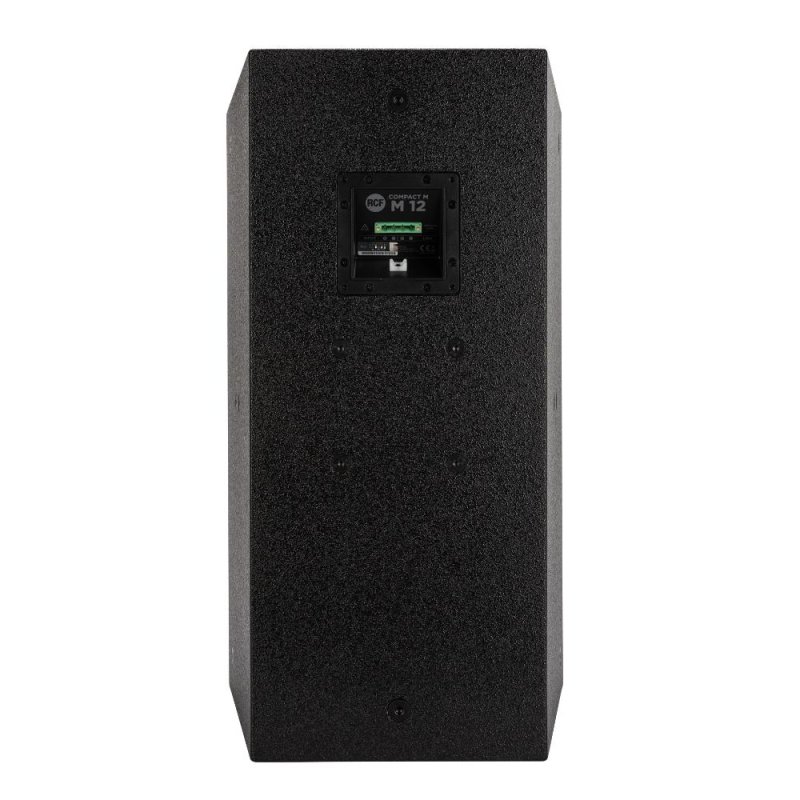

4 pole EUROBLOCK connector (audio input and parallel link output)

ACOUSTICAL SPECIFICATIONS
Frequency Response (-10dB): 55 Hz ÷ 20000 Hz
Max SPL @ 1m: 129 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 70°
Directivity index Q: 9
System Sensitivity: 98 dB

POWER SECTION
Amplification: Full Range
Nominal Impedance: 8 ohm
Power Handling: 300 W
Peak Power Handling: 1200 W PEAK
Recommended Amplifier: 600 W
Protections: Dynamic active mosfet
Crossover Frequencies: 1800 Hz

TRANSDUCERS
Compression Driver: 1 x 1.0'', 1.4'' v.c
Woofer: 12'', 2.5'' v.c

INPUT/OUTPUT SECTION
Input connectors: Euroblock
Output connectors: Euroblock

STANDARD COMPLIANCE
Safety agency: CE compliant

PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Plywood
Hardware: 8 x M8, 8 x M10
Grille: Steel with clothing
Color: Black - RAL 9005, White - RAL 9003

SIZE
Height: 620 mm / 24.41 inches
Width: 362 mm / 14.25 inches
Depth: 404 mm / 15.91 inches
Weight: 22 kg / 48.5 lbs

SHIPPING INFORMATION
Package Height: 655 mm / 25.79 inches
Package Width: 442 mm / 17.4 inches
Package Depth: 400 mm / 15.75 inches
Package Weight: 25.5 kg / 56.22 lbs

Størrelse

Vægt:	22 kg
Bredde:	362 mm
Dybde:	404 mm
Højde:	620 mm

Forsendelsesinformation

Pakke Bredde:	442 mm
Pakke Dybde:	400 mm
Pakke højde:	655 mm
Pakke Vægt:	25,5 kg
