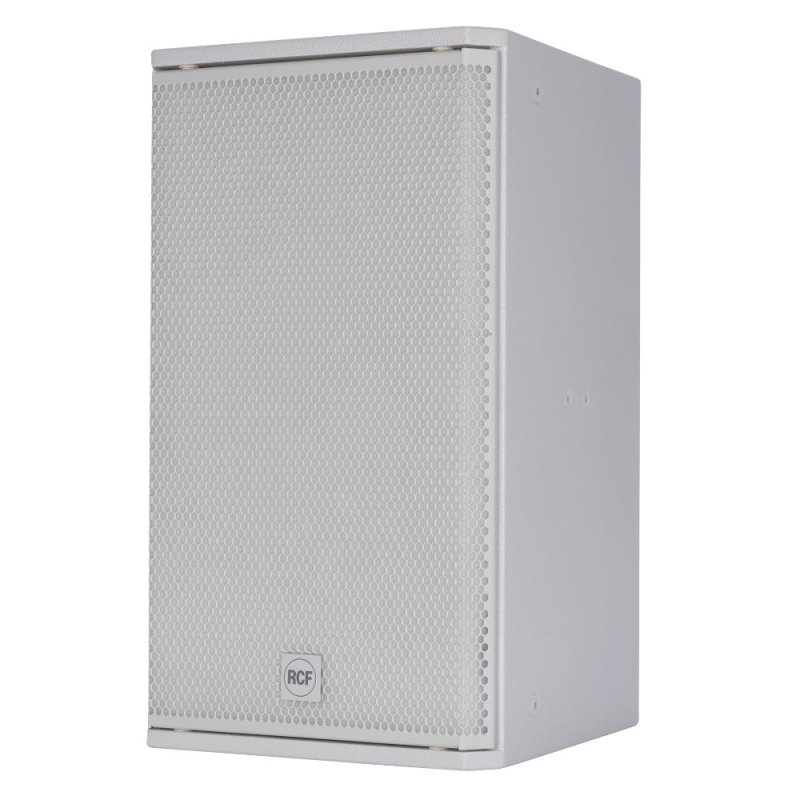

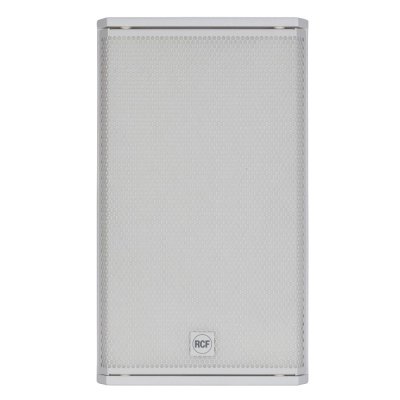

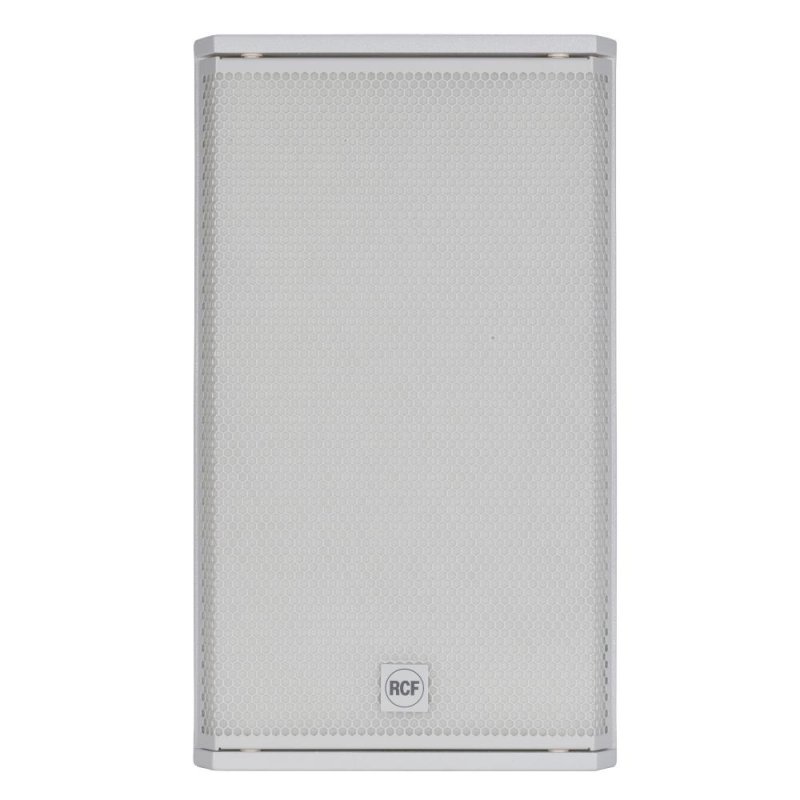

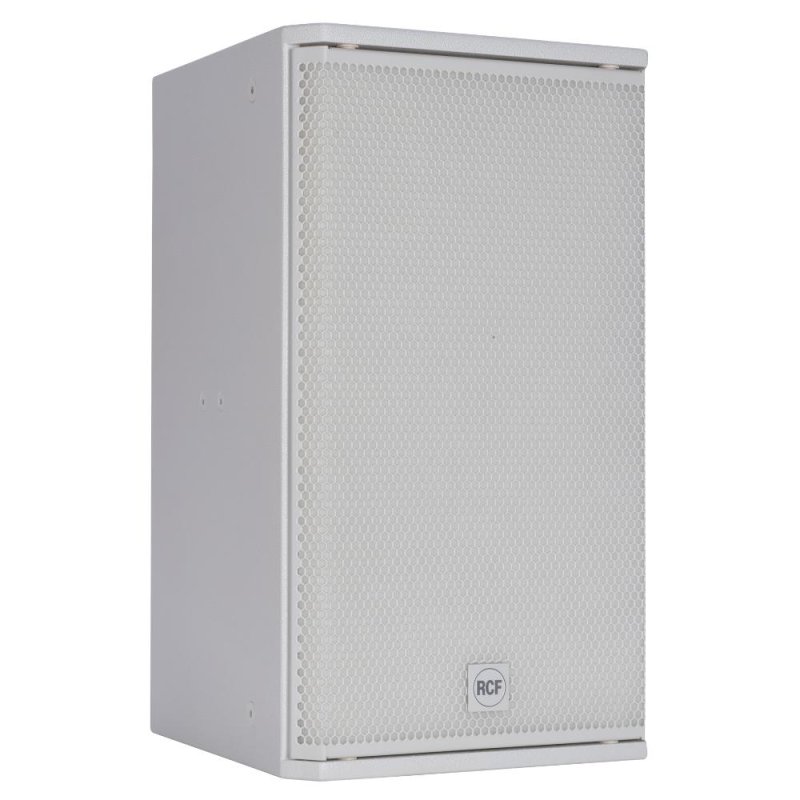

RCF Compact M10 passiv højttaler 10", 300W 128 dB SPL, Hvid

5.635,00 DKK (inkl. moms)
Model/Varenr.: RCF-COMPACT-M10W
EAN-nummer.: 8024530019358
Leverandør varenr.: 13000723
Lagerstatus: Ikke på lager - Forhør om leveringstid
Favoritliste
Inkl. moms

Beskrivelse
RCF COMPACT M 10 passiv højttaler

COMPACT M 10 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications.
Its balanced sound is a big asset in near-field applications for the best intelligibility.
The M 10 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided compression driver.
The SPL level of low-distortion audio the M 10 can provide goes far beyond expectations of such a compact solution.
The elegant and compact design with accurate finishing makes M 10 suitable for almost any environment, even with architectural constraints.
Optional mounting accessories allow using M 10 on wall or ceiling installations.

300 W RMS power handling
128 dB max SPL
60 ÷ 20000 Hz frequency range
90° x 70° constant directivity coverage angle

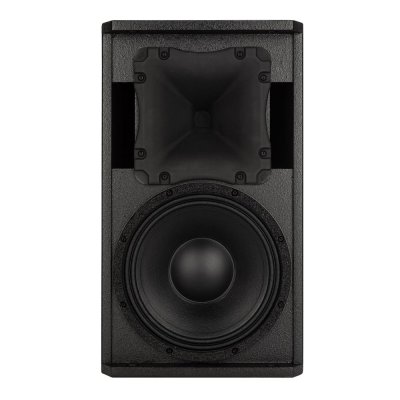

1 x 10" high power woofer
1 x 1.4" voice coil compression driver
High quality plywood cabinet
Steel front grille with clothing

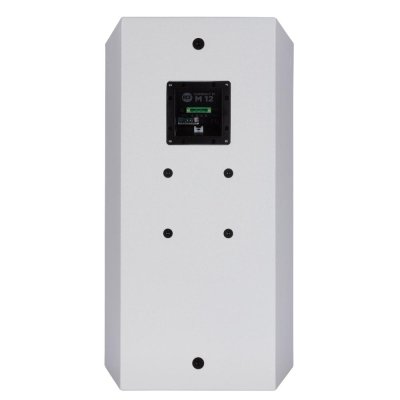

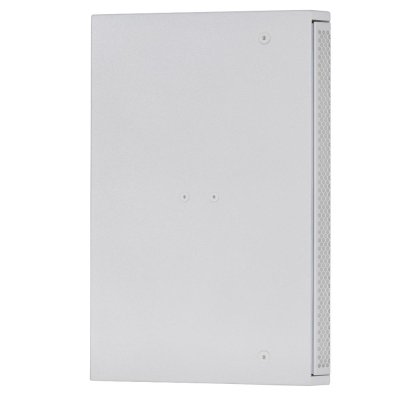

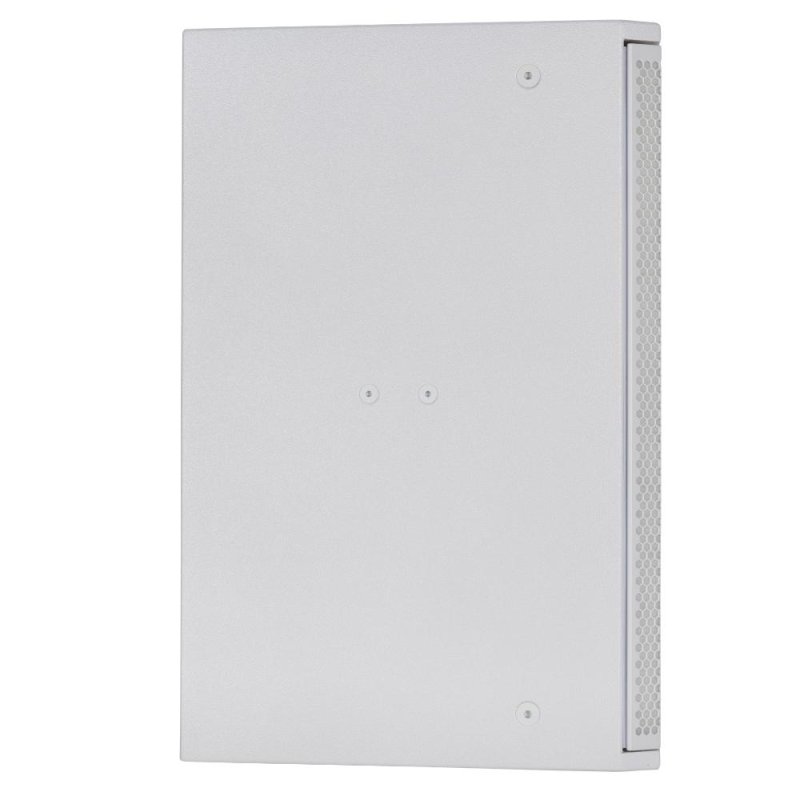

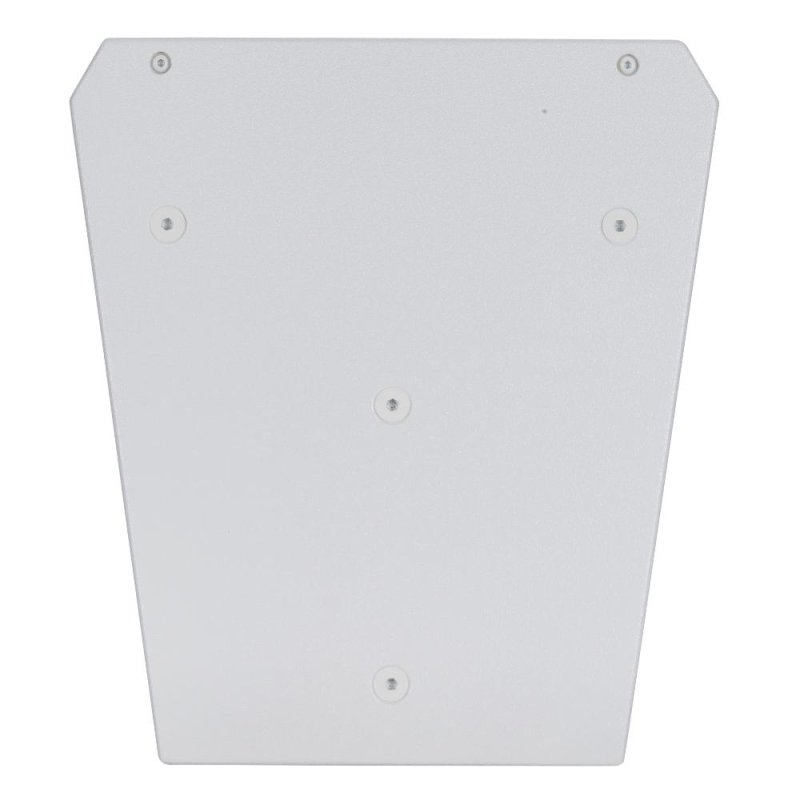

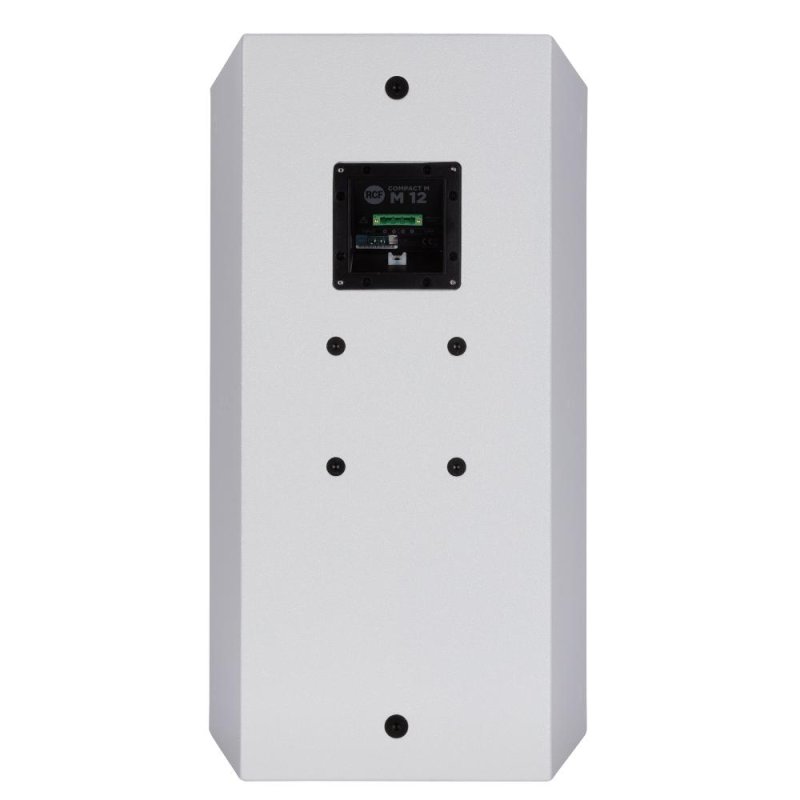

Installation points available on rear, top and bottom panels

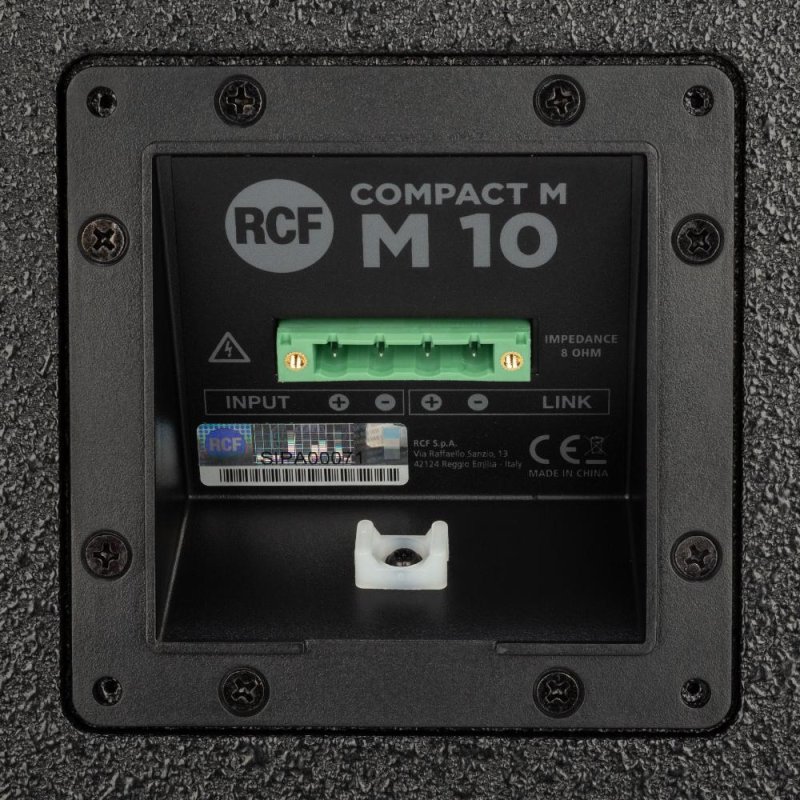

4 pole EUROBLOCK connector (audio input and parallel link output)

ACOUSTICAL SPECIFICATIONS
Frequency Response (-10dB): 60 Hz ÷ 20000 Hz
Max SPL @ 1m: 128 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 70°
Directivity index Q: 9
System Sensitivity: 98 dB

POWER SECTION
Amplification: Full Range
Nominal Impedance: 8 ohm
Power Handling: 300 W
Peak Power Handling: 1200 W PEAK
Recommended Amplifier: 600 W
Protections: Dynamic active mosfet
Crossover Frequencies: 1800 Hz

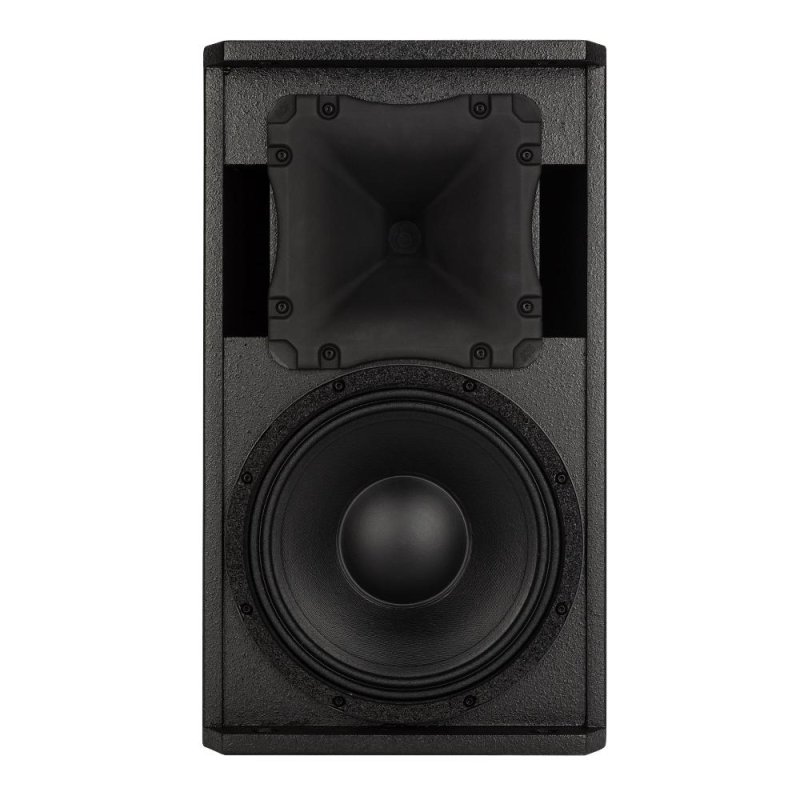

TRANSDUCERS
Compression Driver: 1 x 1.0'', 1.4'' v.c
Woofer: 10'', 2.5'' v.c

INPUT/OUTPUT SECTION
Input connectors: Euroblock
Output connectors: Euroblock

STANDARD COMPLIANCE
Safety agency: CE compliant

PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Plywood
Hardware: 8 x M8, 8 x M10
Grille: Steel with clothing
Color: Black - RAL 9005, White - RAL 9003

SIZE
Height: 510 mm / 20.08 inches
Width: 295 mm / 11.61 inches
Depth: 325 mm / 12.8 inches
Weight: 17 kg / 37.48 lbs

SHIPPING INFORMATION
Package Height: 545 mm / 21.46 inches
Package Width: 363 mm / 14.29 inches
Package Depth: 333 mm / 13.11 inches
Package Weight: 20 kg / 44.09 lbs

Specifikationer

Størrelse

Vægt: 17 kg
Bredde: 295 mm
Dybde: 325 mm
Højde: 510 mm

Forsendelsesinformation

Pakke Bredde: 363 mm
Pakke Dybde: 333 mm
Pakke højde: 545 mm
Pakke Vægt: 20 kg
