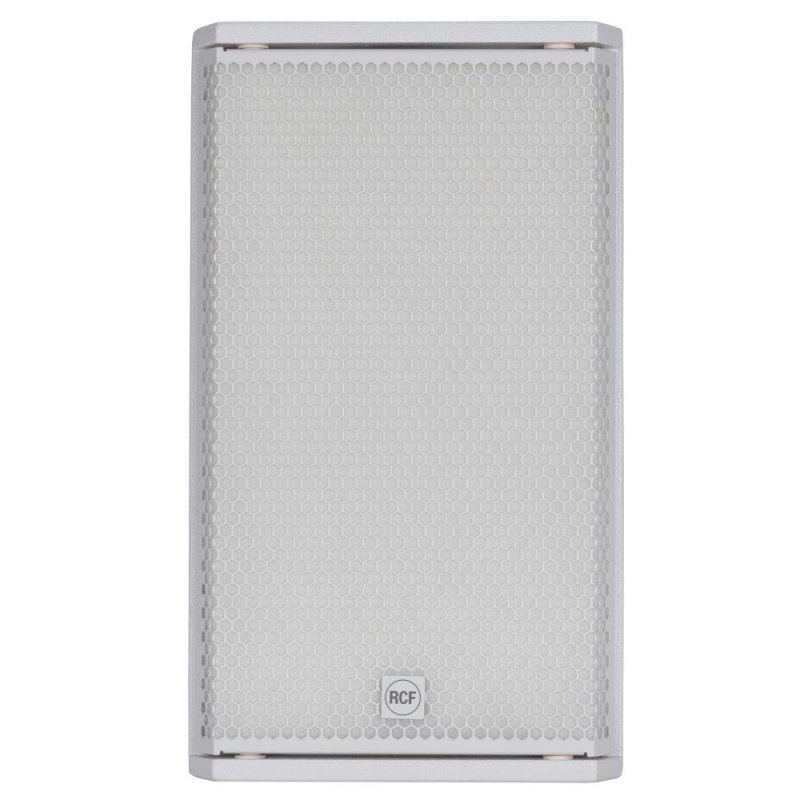

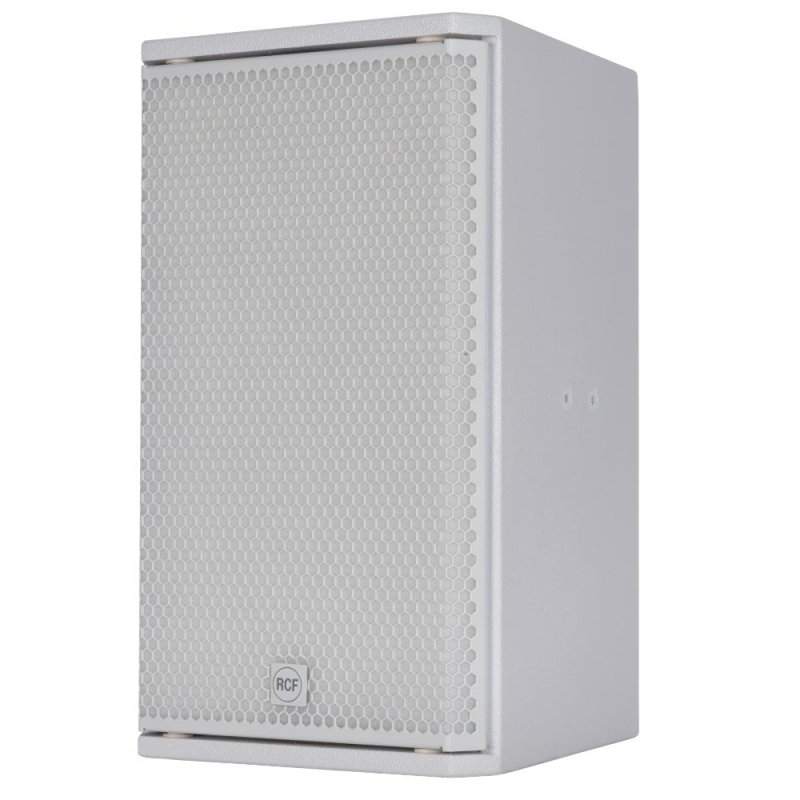

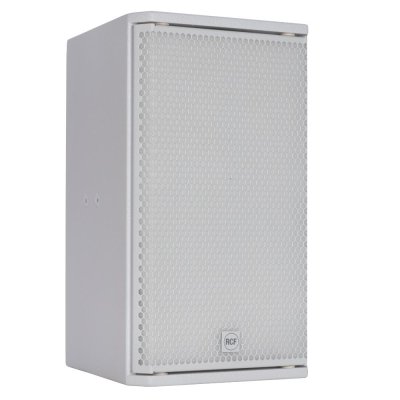

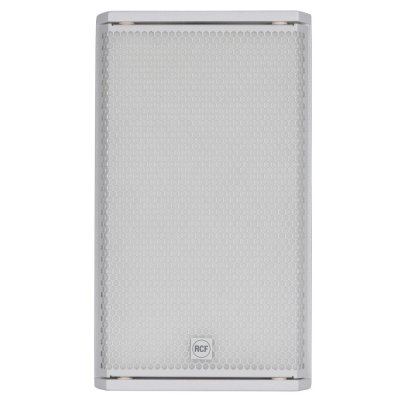

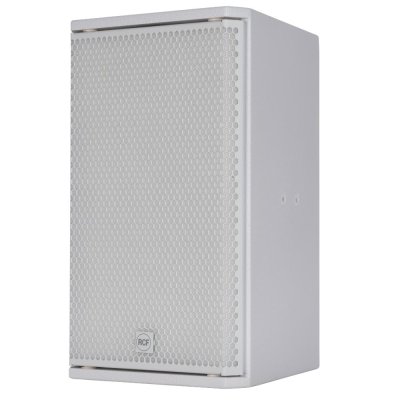

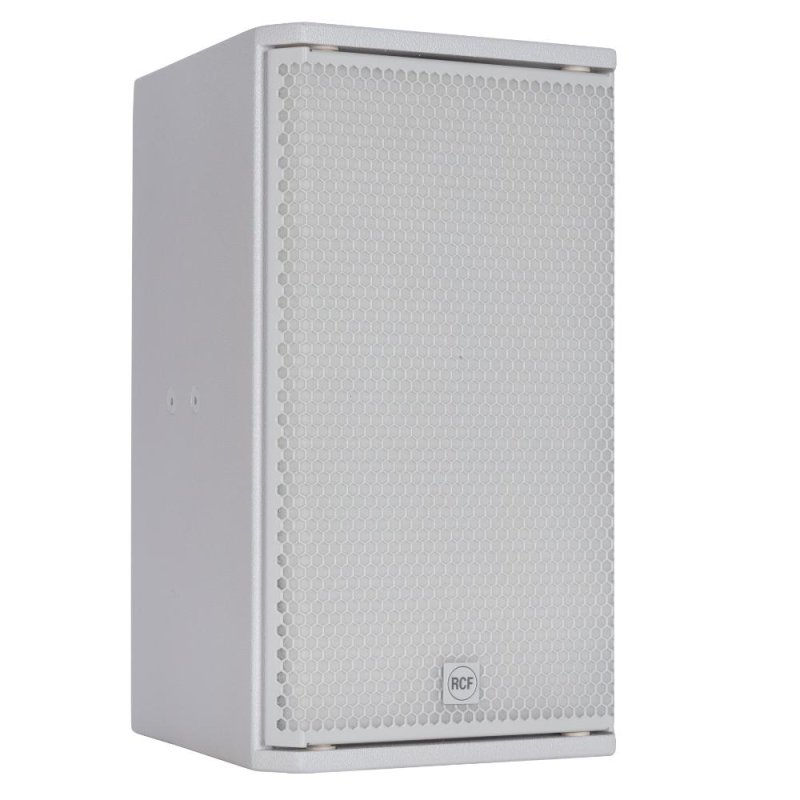

RCF Compact M08 passiv højttaler 8", 200W 124 dB SPL, Hvid

RCF COMPACT M 08 passiv højttaler

COMPACT M 08 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications.
Its balanced sound is a big asset in near-field applications for the best intelligibility.
The M 08 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided compression driver.
The SPL level of low-distortion audio the M 08 can provide goes far beyond expectations of such a compact solution.
The elegant and compact design with accurate finishing makes M 08 suitable for almost any environment, even with architectural constraints.
Optional mounting accessories allow using M 08 on wall or ceiling installations.

200W RMS power handling
124 dB max SPL
60 ÷ 20000 Hz frequency range
90° x 70° constant directivity coverage angle

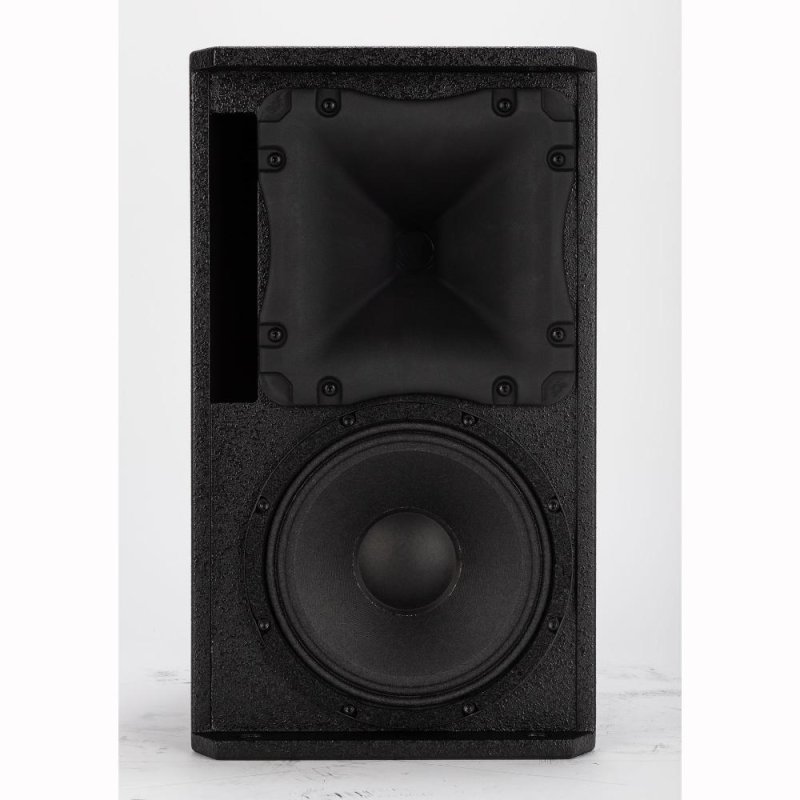

1 x 8" high power woofer
1 x 1.4" voice coil compression driver
High quality plywood cabinet
Steel front grille with clothing

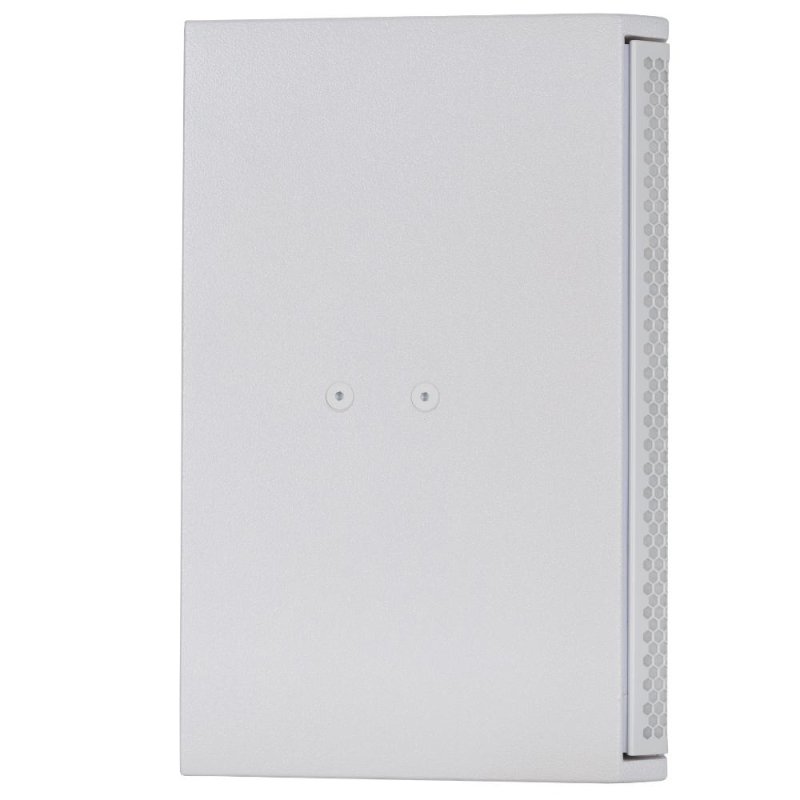

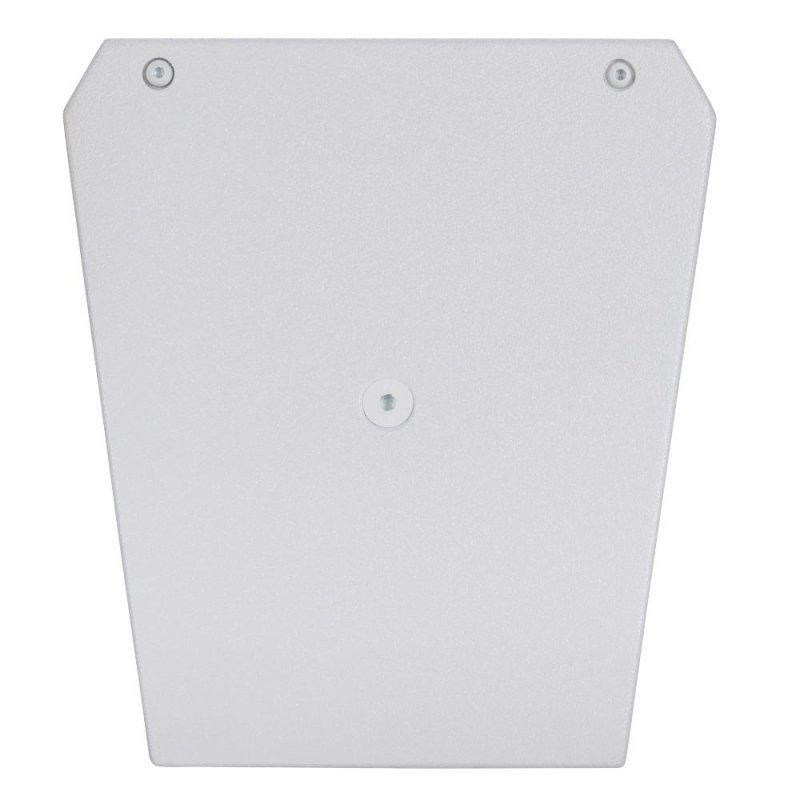

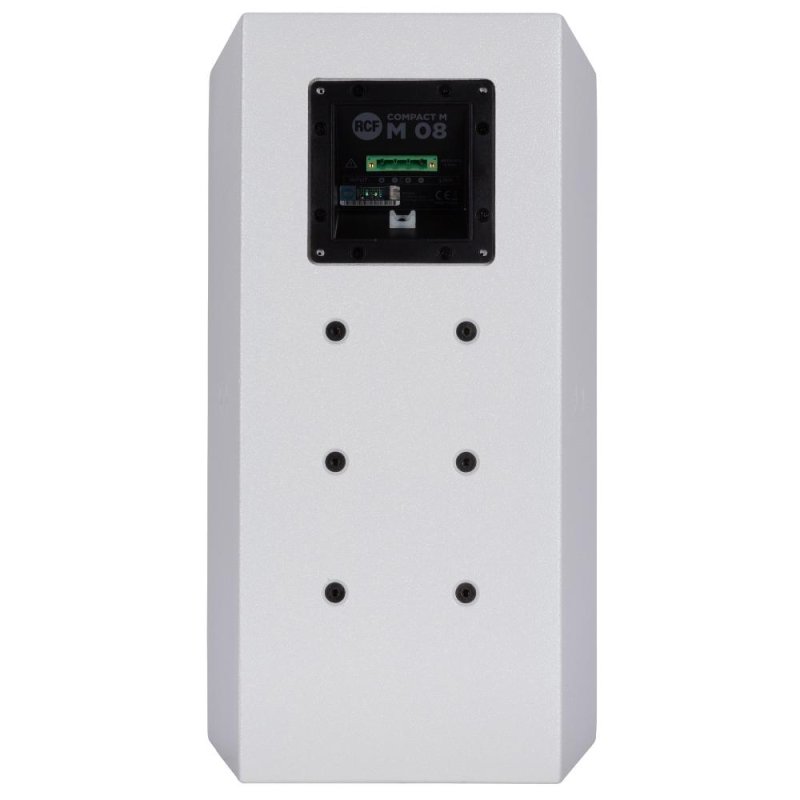

Installation points available on rear, top and bottom panels

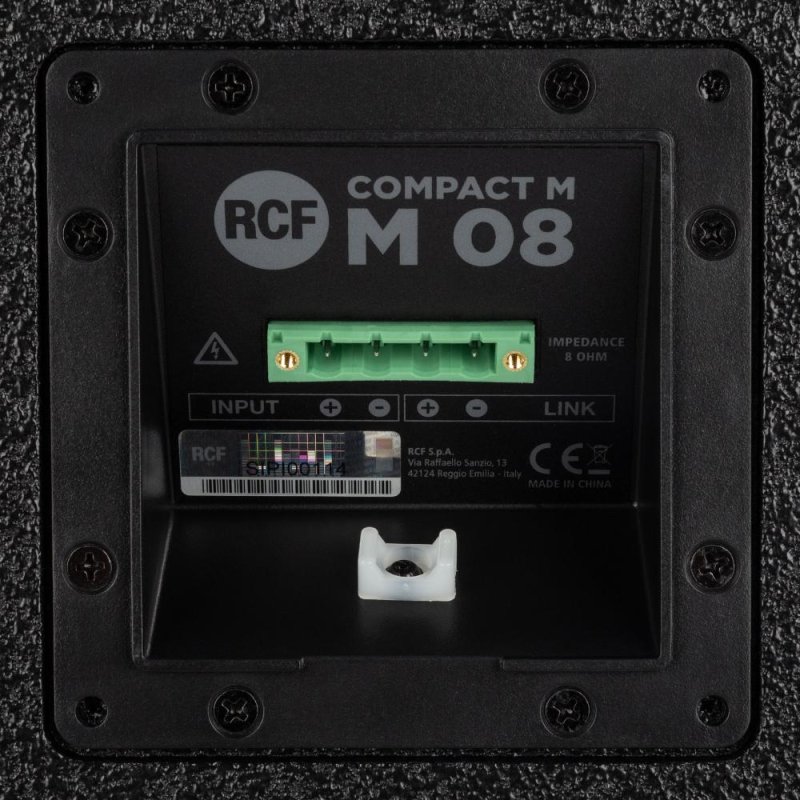

4 pole EUROBLOCK connector (audio input and parallel link output)

ACOUSTICAL SPECIFICATIONS
Frequency Response (-10dB): 60 Hz ÷ 20000 Hz
Max SPL @ 1m: 124 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 70°
Directivity index Q: 9
System Sensitivity: 95 dB

POWER SECTION
Amplification: Full Range
Nominal Impedance: 8 ohm
Power Handling: 200 W
Peak Power Handling: 800 W PEAK
Recommended Amplifier: 400 W
Protections: Dynamic active mosfet
Crossover Frequencies: 1800 Hz

TRANSDUCERS
Compression Driver: 1 x 1.0'', 1.4'' v.c
Woofer: 8'', 1.7'' v.c

INPUT/OUTPUT SECTION
Input connectors: Euroblock
Output connectors: Euroblock

STANDARD COMPLIANCE
Safety agency: CE compliant

PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Plywood
Hardware: 6 x M6, 4 x M8, 2 x M10
Grille: Steel with clothing
Color: Black - RAL 9005, White - RAL 9003

SIZE
Height: 442 mm / 17.4 inches
Width: 257 mm / 10.12 inches
Depth: 284 mm / 11.18 inches
Weight: 10.5 kg / 23.15 lbs

SHIPPING INFORMATION
Package Height: 477 mm / 18.78 inches
Package Width: 322 mm / 12.68 inches
Package Depth: 295 mm / 11.61 inches
Package Weight: 12.4 kg / 27.34 lbs

Størrelse

Vægt:	10,5 kg
Bredde:	257 mm
Dybde:	284 mm
Højde:	442 mm

Forsendelsesinformation

Pakke Bredde:	322 mm
Pakke Dybde:	295 mm
Pakke højde:	477 mm
Pakke Vægt:	12,4 kg
