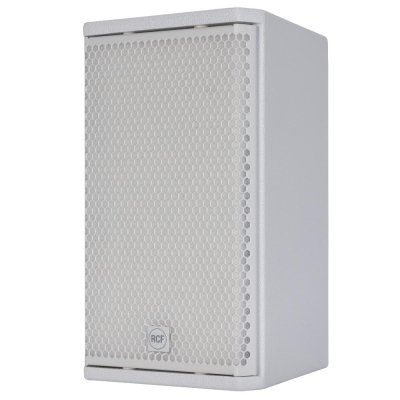

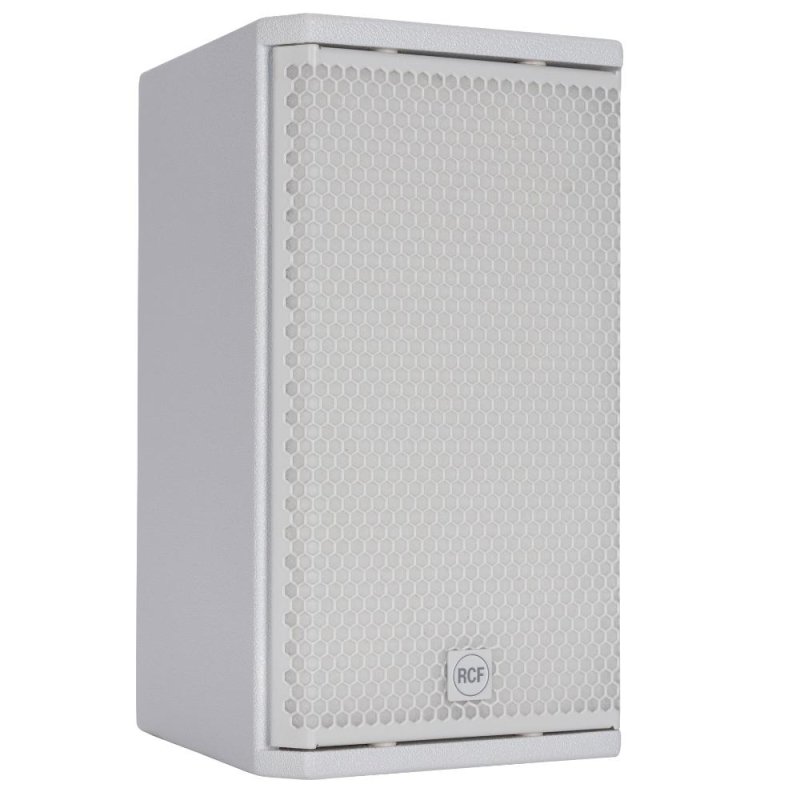

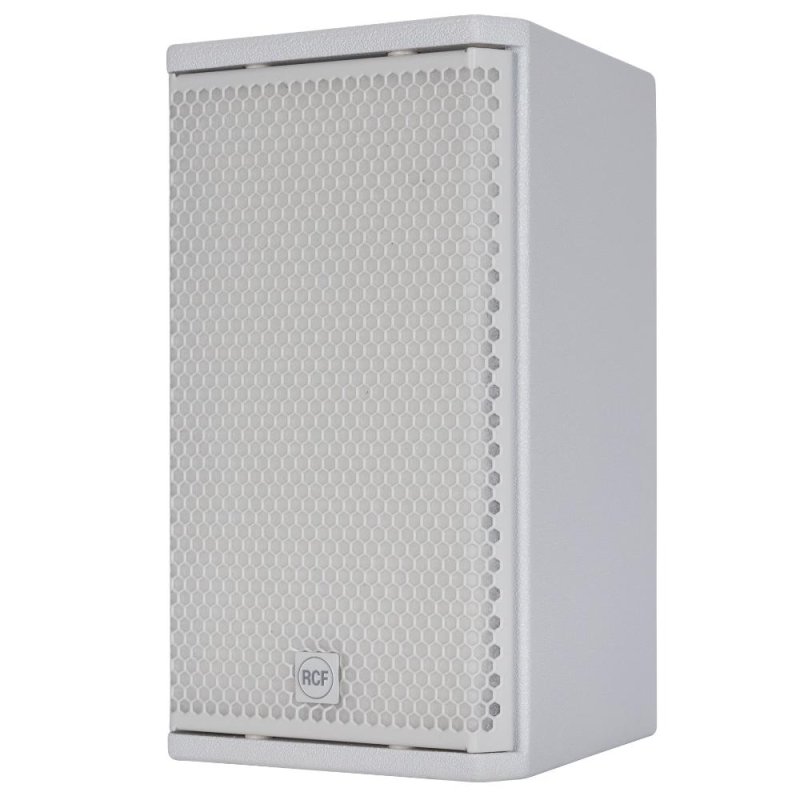

RCF Compact M06 passiv højttaler 6", 100W 116 dB SPL, Hvid

RCF COMPACT M 06 passiv højttaler

TWO-WAY PASSIVE SPEAKER
100 W RMS POWER HANDLING
116 DB MAX SPL
60 ÷ 20000 HZ FREQUENCY RANGE
120° X 80° CONSTANT DIRECTIVITY COVERAGE ANGLE

100 W RMS power handling
116 dB max SPL
60 ÷ 20000 Hz frequency range
120° x 80° constant directivity coverage angle

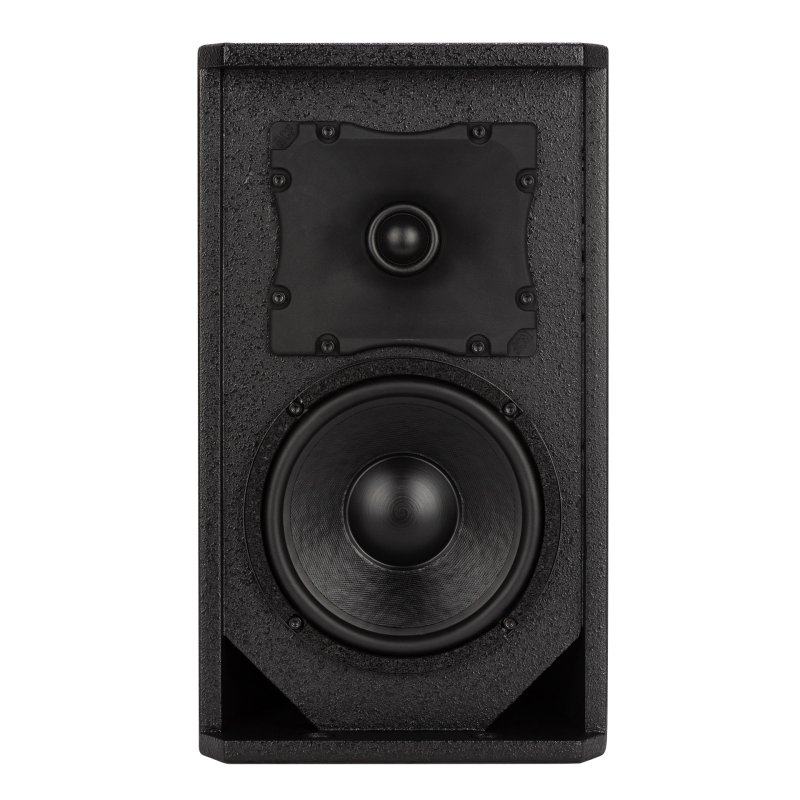

1 x 6" high power woofer
1 x 1" voice coil neodymium dome tweeter

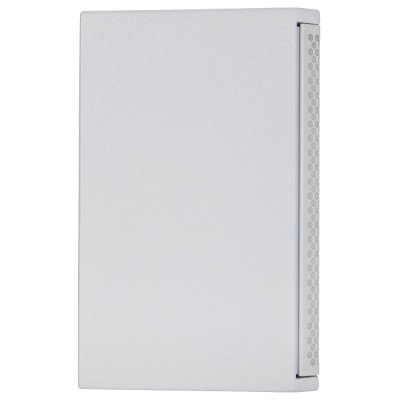

High quality plywood cabinet

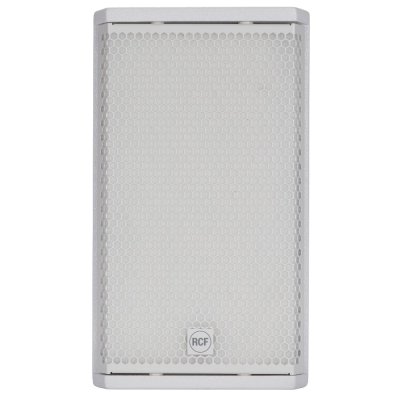

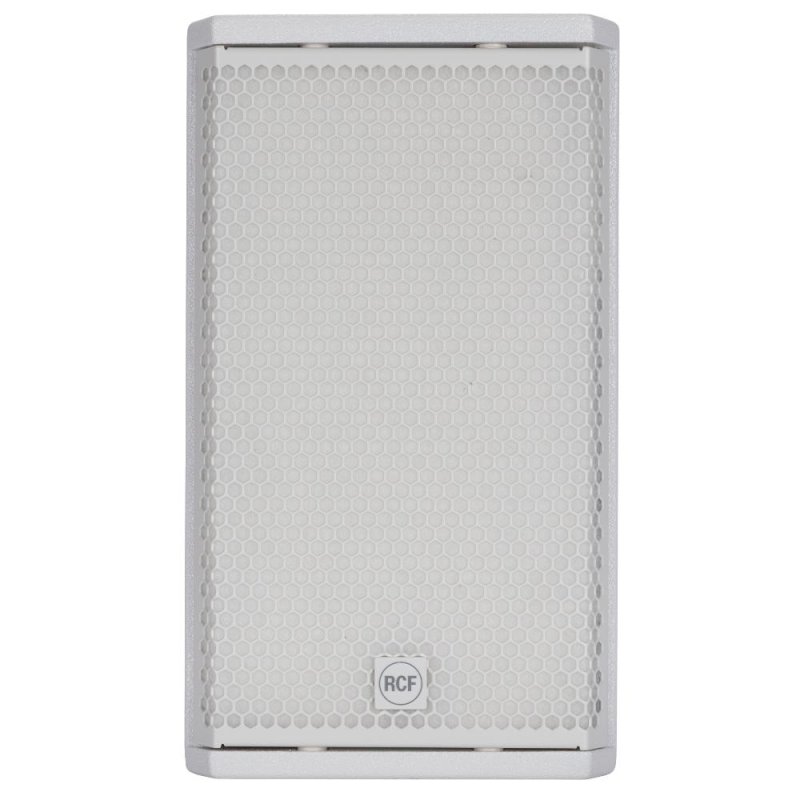

Steel front grille with clothing

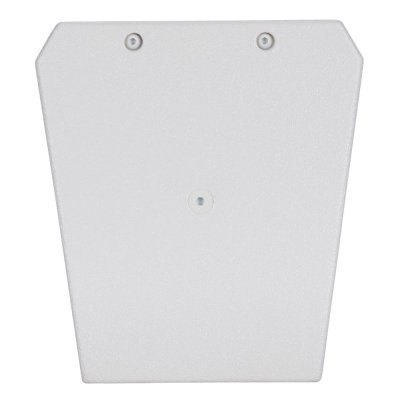

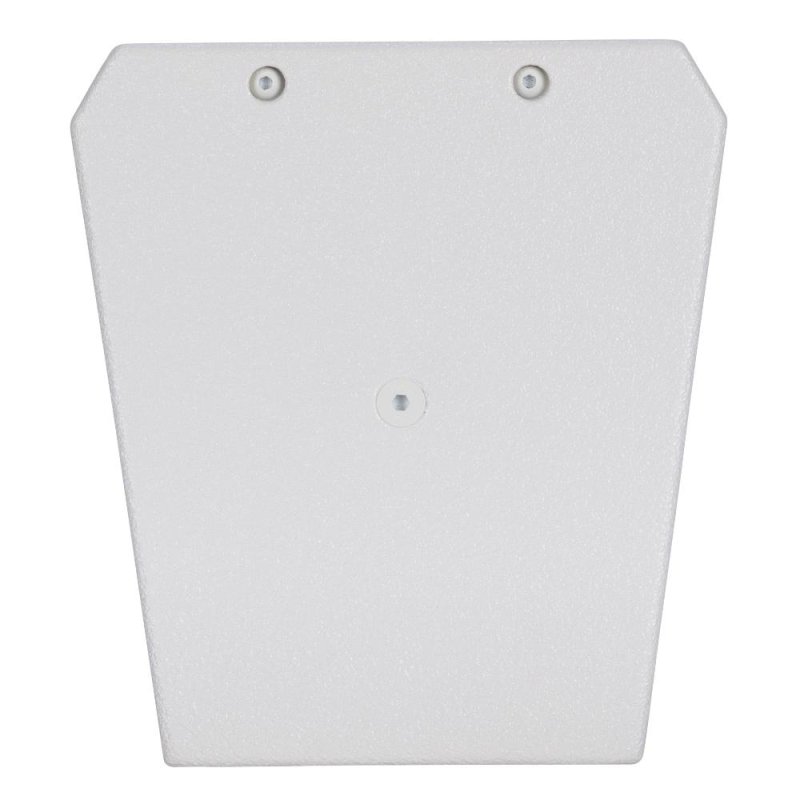

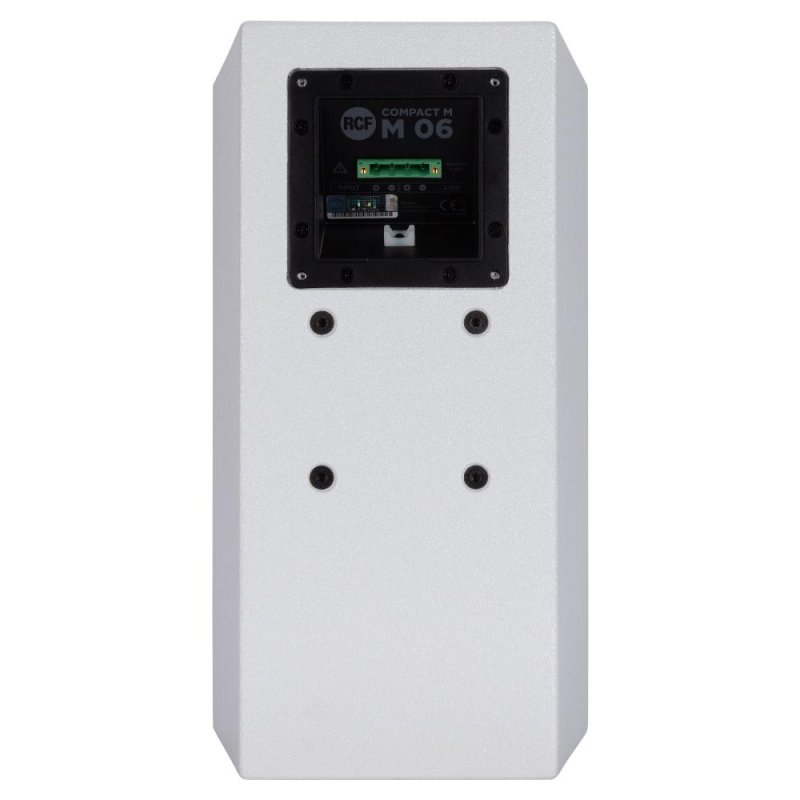

Installation points available on rear, top and bottom panels

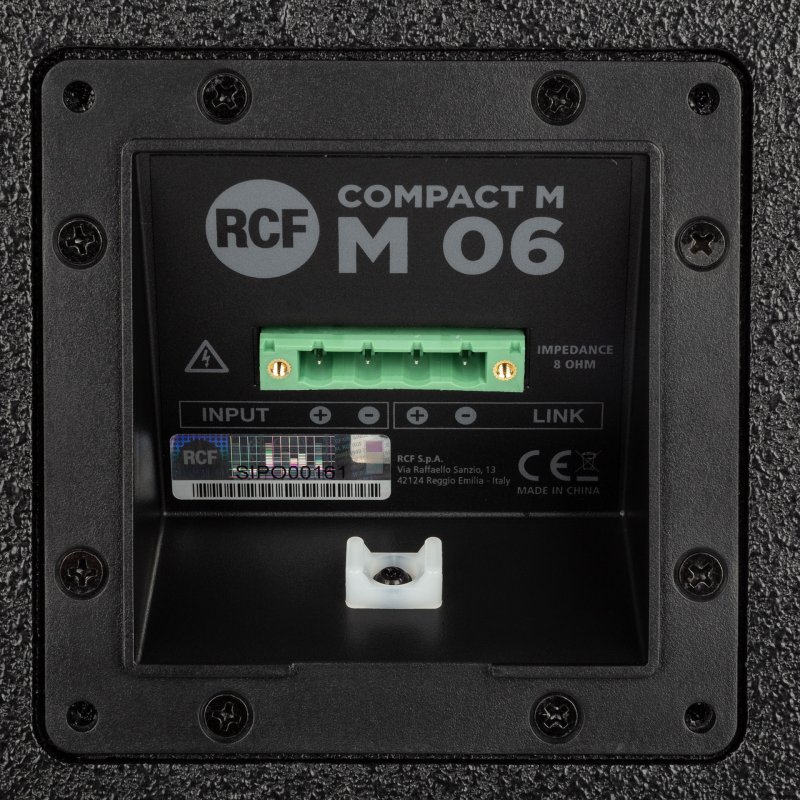

4 pole EUROBLOCK connector (audio input and parallel link output)

COMPACT M 06 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. The M 06 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided neodymium dome tweeter. The SPL level of low-distortion audio the M 06 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 06 suitable for almost any environment, even with architectural constraints. Optional mounting accessories allow using M 06 on wall or ceiling installations.

Acoustical specifications
FREQUENCY RESPONSE (-10DB): 60 Hz ÷ 20000 Hz
MAX SPL @ 1M: 116 dB
HORIZONTAL COVERAGE ANGLE: 120°
VERTICAL COVERAGE ANGLE: 80°
DIRECTIVITY INDEX Q: 7
SYSTEM SENSITIVITY: 90 dB

Power section
NOMINAL IMPEDANCE (OHM): 8 ohm
POWER HANDLING: 100 W RMS
PEAK POWER HANDLING: 400 W PEAK
RECOMMENDED AMPLIFIER: 200 W
PROTECTIONS: Dynamic active mosfet
CROSSOVER FREQUENCIES: 2200 Hz

Transducers
DOME TWEETER: 1.3'' neo, 1.0'' v.c
NOMINAL IMPEDANCE (OHM): 8 ohm
INPUT POWER RATING: 15 W AES, 30 W PROGRAM POWER
SENSITIVITY (DB, 1W @ 1M): 92 dB, 1W @ 1m
WOOFER: 6.0'', 1.5'' v.c
NOMINAL IMPEDANCE (OHM): 8 ohm
INPUT POWER RATING: 100 W AES, 200 W PROGRAM POWER
SENSITIVITY (DB, 1W @ 1M):90 dB, 1W @ 1m

Input/Output section
INPUT CONNECTORS: Euroblock
OUTPUT CONNECTORS: Euroblock
Standard compliance
CE MARKING: Yes

Physical specifications
COLOR: Black - RAL 9005
HARDWARE: 4 x M6, 2 x M8
GRILLE: Steel with clothing
CABINET/CASE MATERIAL: Plywood

Size
WIDTH: 211 mm / 8.31 inches
DEPTH: 232 mm / 9.13 inches
HEIGHT: 365 mm / 14.37 inches
WEIGHT: 5.5 kg / 12.13 lbs

Shipping informations
PACKAGE WEIGHT: 7 kg / 15.43 lbs
PACKAGE DEPTH: 235 mm / 9.25 inches
PACKAGE WIDTH: 256 mm / 10.08 inches
PACKAGE HEIGHT: 386 mm / 15.2 inches

Størrelse

Vægt:	5,5 kg
Bredde:	211 mm
Dybde:	232 mm
Højde:	365 mm

Forsendelsesinformation

Pakke Bredde:	256 mm
Pakke Dybde:	235 mm
Pakke højde:	386 mm
Pakke Vægt:	7 kg
