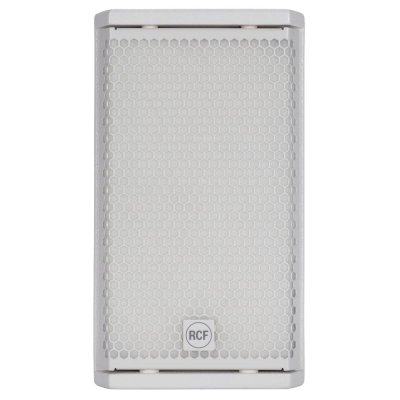

RCF Compact M05 passiv højttaler 5", 80W 115 dB SPL, Hvid

Beskrivelse

Specifikationer

Beskrivelse

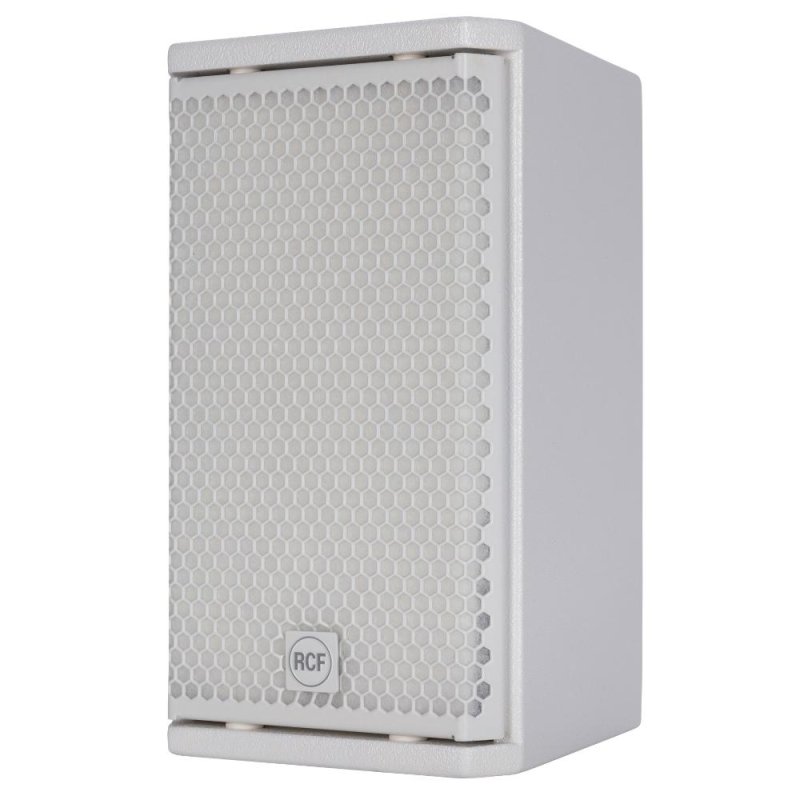

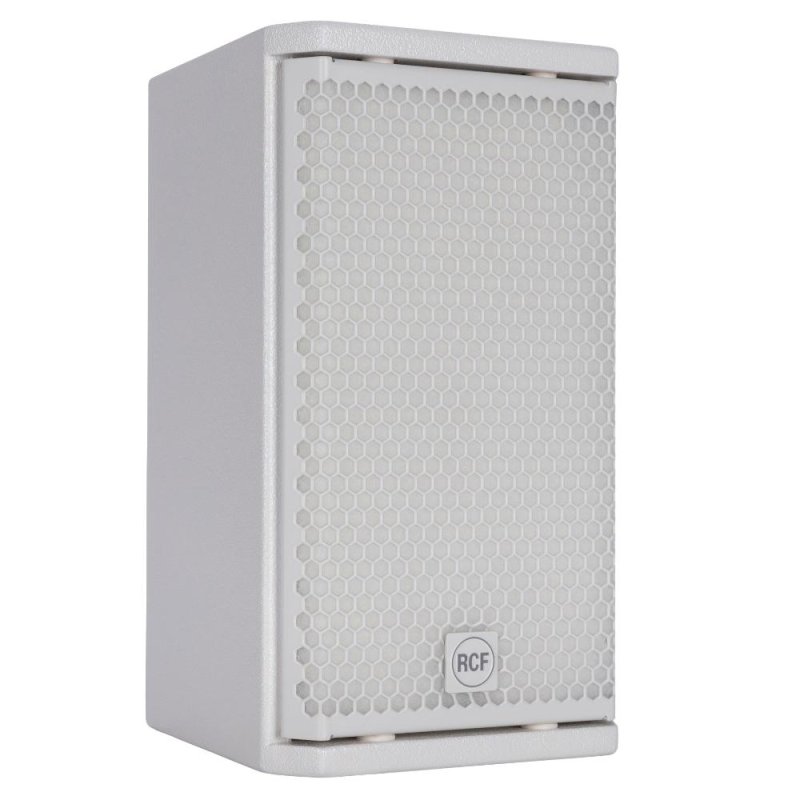

RCF COMPACT M 05 passiv højttaler

COMPACT M 05 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. M 05 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided neodymium dome tweeter. The SPL level of low-distortion audio the M 05 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 05 suitable for almost any environment, even with architectural constraints. Optional mounting accessories allow the use of the M 05 on wall or ceiling installations.

80 W RMS power handling
115 dB max SPL
70 ÷ 20000 Hz frequency range
120° x 80° constant directivity coverage angle

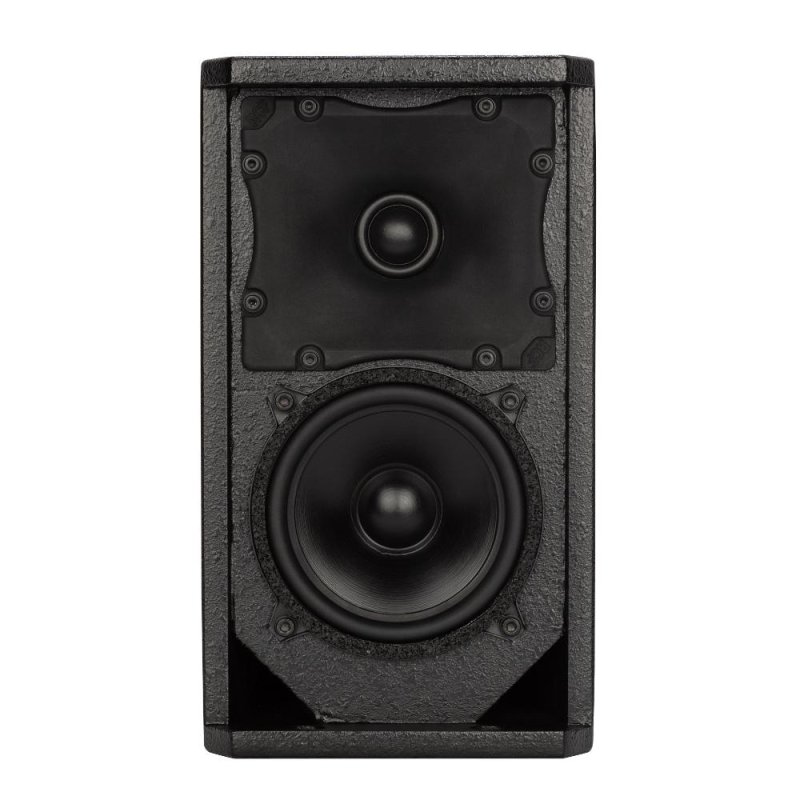

1 x 5" high power woofer
1 x 1" voice coil neodymium dome tweeter
High quality plywood cabinet

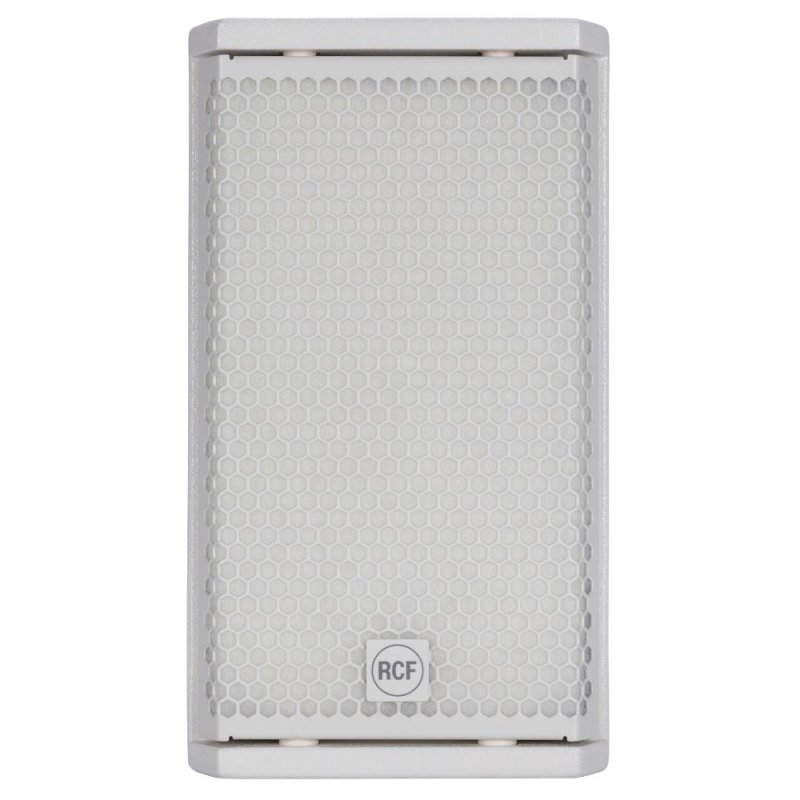

Steel front grille with clothing

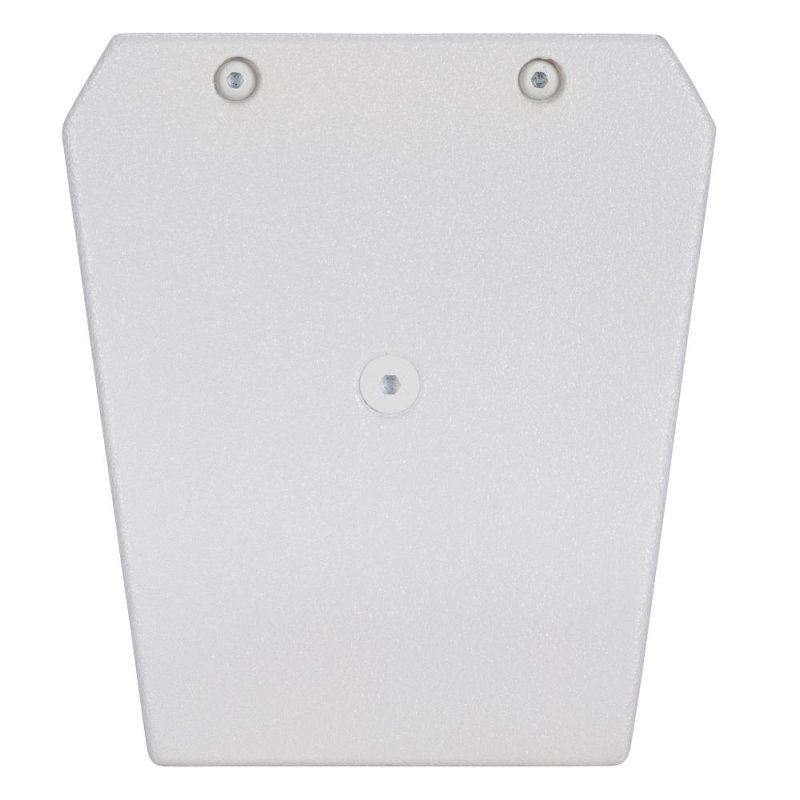

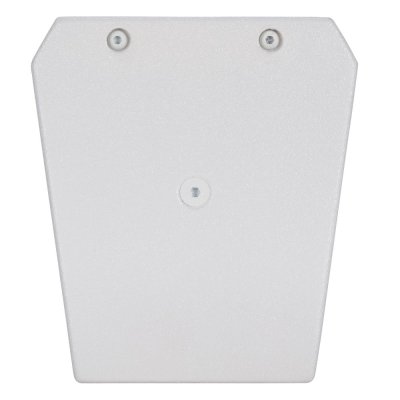

Installation points available on rear, top and bottom panels

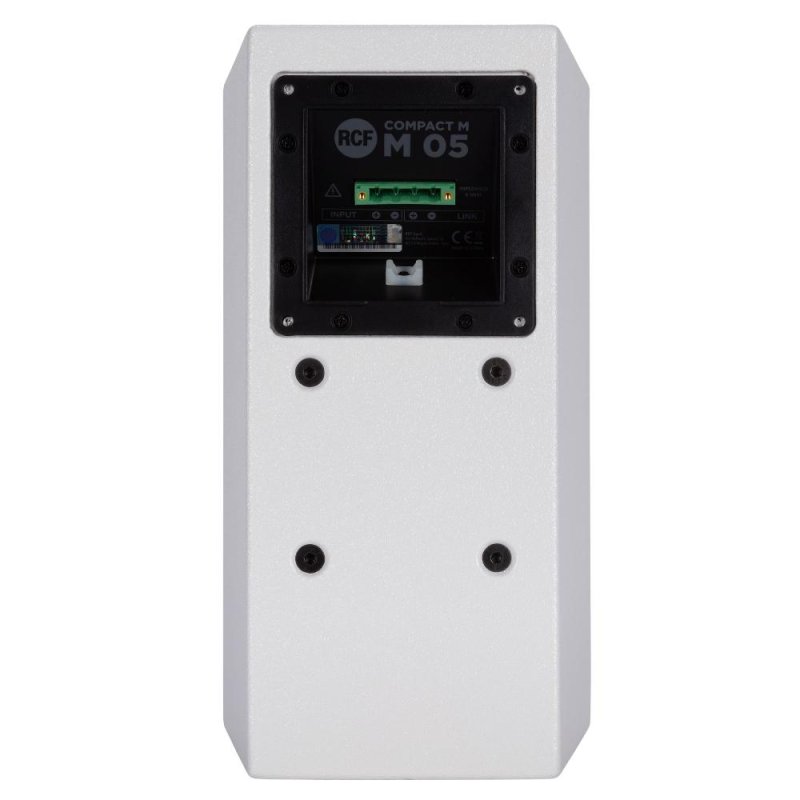

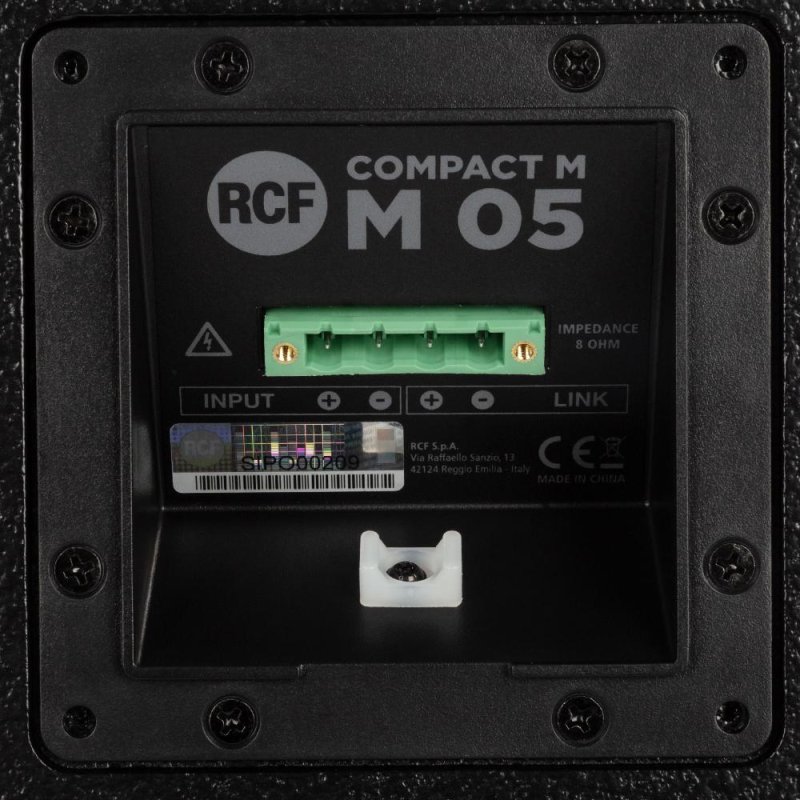

4 pole EUROBLOCK connector (audio input and parallel link output)

ACOUSTICAL SPECIFICATIONS
Frequency Response (-10dB): 70 Hz ÷ 20000 Hz
Max SPL @ 1m: 115 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 80°
Directivity index Q: 7
System Sensitivity: 89 dB

POWER SECTION
Amplification: Full Range
Nominal Impedance: 8 ohm
Power Handling: 80 W
Peak Power Handling: 320 W PEAK
Recommended Amplifier: 160 W
Crossover Frequencies: 2200 Hz

TRANSDUCERS
Dome Tweeter: 1.3'' neo, 1.0'' v.c
Woofer: 5.0'', 1.2'' v.c

INPUT/OUTPUT SECTION
Input connectors: Euroblock
Output connectors: Euroblock

STANDARD COMPLIANCE
Safety agency: CE compliant

PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Plywood
Hardware: 4 x M6, 2 x M8
Grille: Steel with clothing
Color: Black - RAL 9005, White - RAL 9003

SIZE
Height: 303 mm / 11.93 inches
Width: 172 mm / 6.77 inches
Depth: 191 mm / 7.52 inches
Weight: 4.2 kg / 9.26 lbs

SHIPPING INFORMATION
Package Height: 324 mm / 12.76 inches
Package Width: 215 mm / 8.46 inches
Package Depth: 196 mm / 7.72 inches
Package Weight: 5.1 kg / 11.24 lbs

Specifikationer

Størrelse

Vægt:	4,2 kg
Bredde:	172 mm
Dybde:	191 mm
Højde:	303 mm

Forsendelsesinformation

Pakke Bredde:	215 mm
Pakke Dybde:	196 mm
Pakke højde:	324 mm
Pakke Vægt:	5,1 kg
