RCF Compact M04 passiv højttaler 4", 60W 113 dB SPL, Hvid

RCF COMPACT M 04 passiv højttaler

COMPACT M 04 is a multipurpose two-way full-range coaxial speaker system, suitable for a wide range of applications.
Its balanced sound is a big asset in near-field applications for the best intelligibility.
M 04 features high sensitivity, thanks to the use of oversized magnets, and a HI-FI sound quality, with smooth and wide frequency response.
The SPL level of low-distortion audio the M 04 can provide goes far beyond expectations of such a compact solution.
The elegant and compact design with accurate finishing makes M 04 suitable for almost any environment, even with architectural constraints.
Included wall mount bracket allow the use of the M 04 on wall or ceiling installations.

60W RMS power handling
113 dB max SPL
90 ÷ 20000 Hz frequency range
120° x 120° constant directivity coverage angle

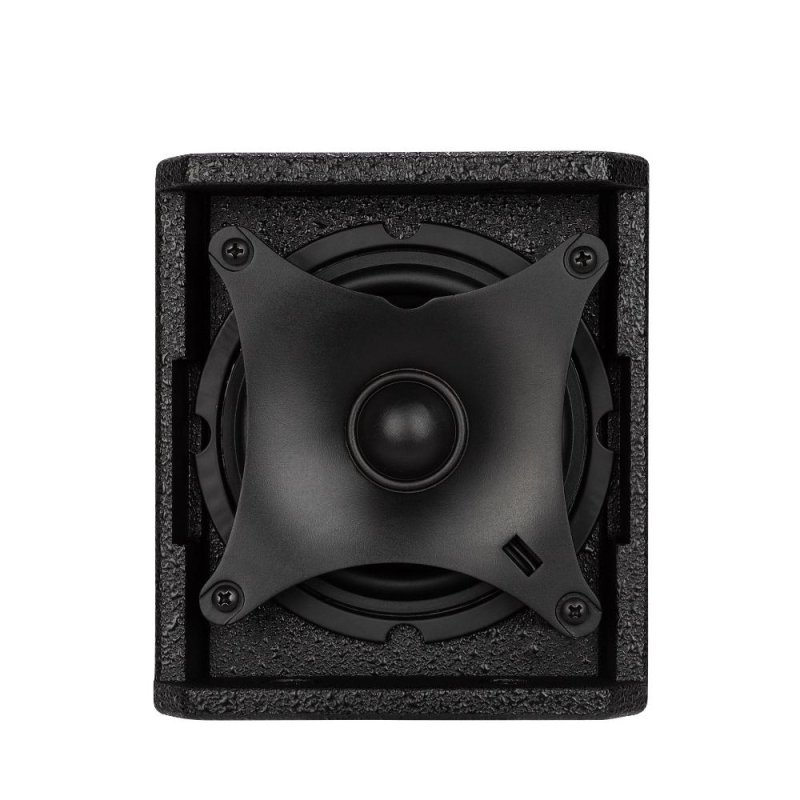

1 x 4" coax woofer
1 x 1" voice coil neodymium dome tweeter
High quality plywood cabinet
Wall mount bracket included

ACOUSTICAL SPECIFICATIONS
Frequency Response (-10dB): 90 Hz ÷ 20000 Hz
Max SPL @ 1m: 113 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 120°
Directivity index Q: 6
System Sensitivity: 89 dB

POWER SECTION
Amplification: Full Range
Nominal Impedance: 16 ohm
Power Handling: 60 W
Peak Power Handling: 240 W PEAK
Recommended Amplifier: 120 W
Crossover Frequencies: 1800 Hz

TRANSDUCERS
Dome Tweeter: 1.0'' neo, 1.0'' v.c
Woofer: 4.0'', 1.0'' v.c

INPUT/OUTPUT SECTION

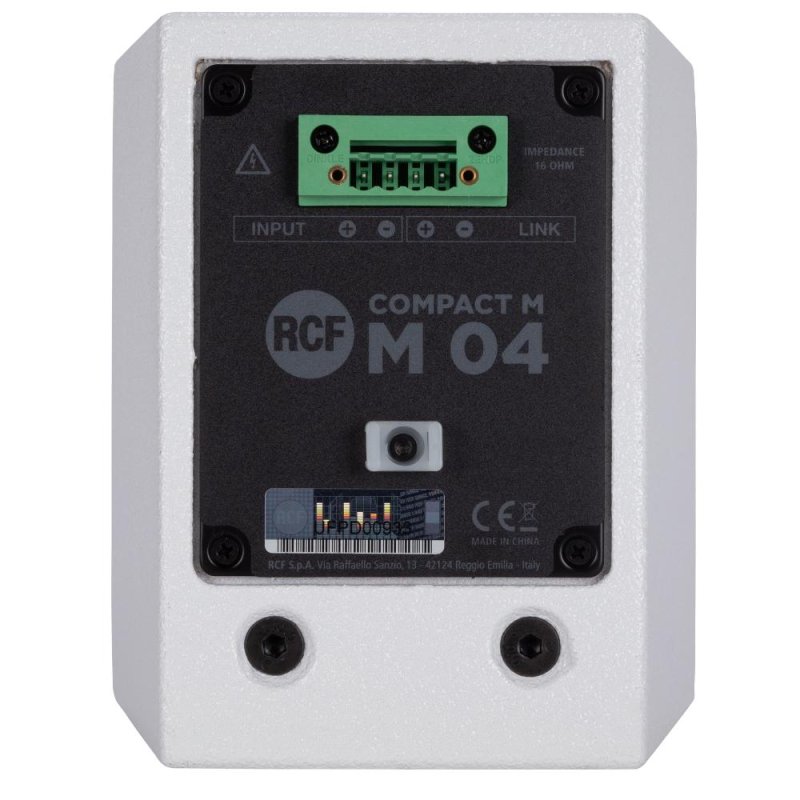

Input connectors: Euroblock
Output connectors: Euroblock

STANDARD COMPLIANCE
Safety agency: CE compliant

PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Plywood
Hardware: 2 x M6, 2 x M8
Grille: Steel with clothing
Color: Black - RAL 9005, White - RAL 9003

SIZE
Height: 148 mm / 5.83 inches
Width: 132 mm / 5.2 inches
Depth: 145 mm / 5.71 inches
Weight: 2.3 kg / 5.07 lbs

SHIPPING INFORMATION
Package Height: 168 mm / 6.61 inches
Package Width: 233 mm / 9.17 inches
Package Depth: 150 mm / 5.91 inches
Package Weight: 2.9 kg / 6.39 lbs

Størrelse

Vægt:	2,3 kg
Bredde:	132 mm
Dybde:	145 mm
Højde:	148 mm

Forsendelsesinformation

Pakke Bredde:	233 mm
Pakke Dybde:	150 mm
Pakke højde:	168 mm
Pakke Vægt:	2,9 kg
