RCF WMF 33EN 2-vejs væghøjttaler EN54

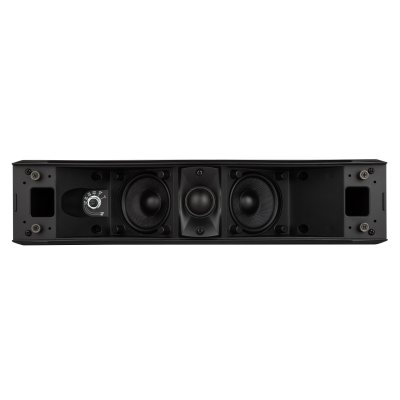

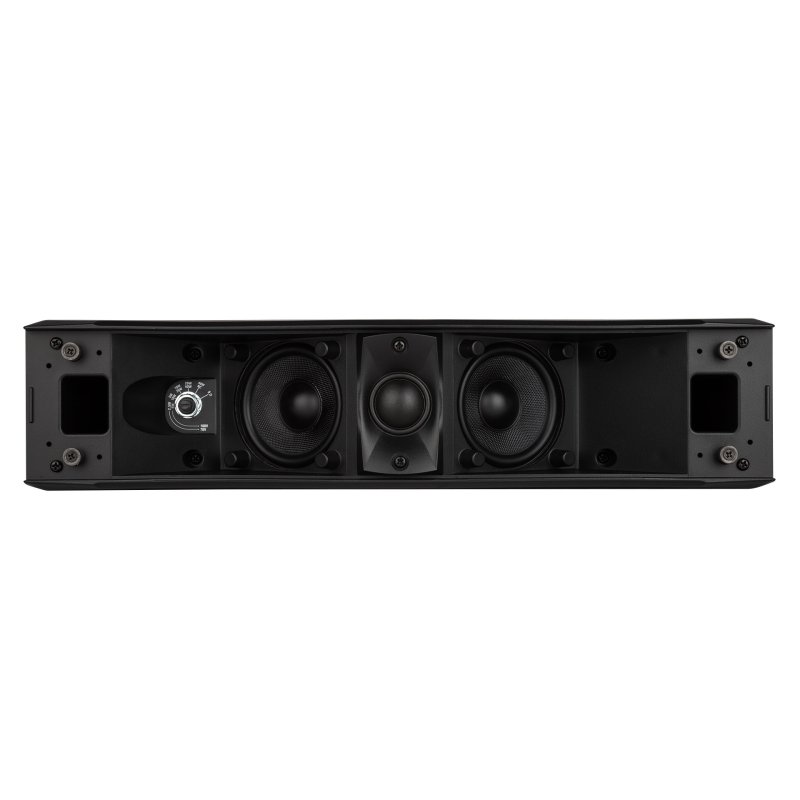

2 x 3" full-range transducers with 1" dome tweeter

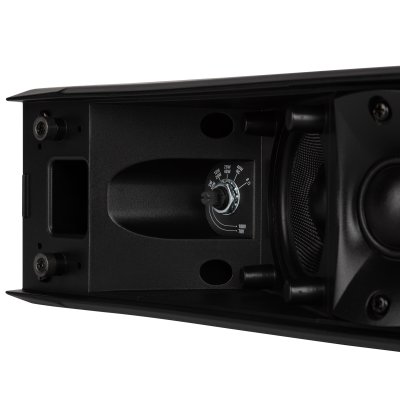

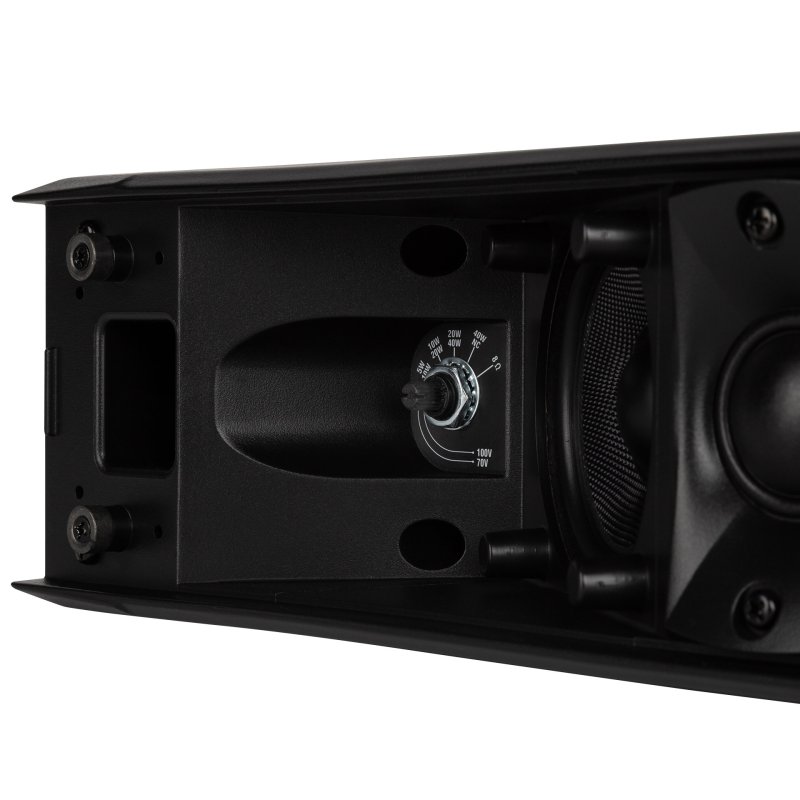

Power selectable (70 V / 100 V): 40 W - 20 W - 10 W - 5 W - 2.5 W
88 dB sensitivity
Colour black RAL 9005
Voice Alarm EN 54-24 Certified
In/out ceramic terminal block
Thermal fuse protection

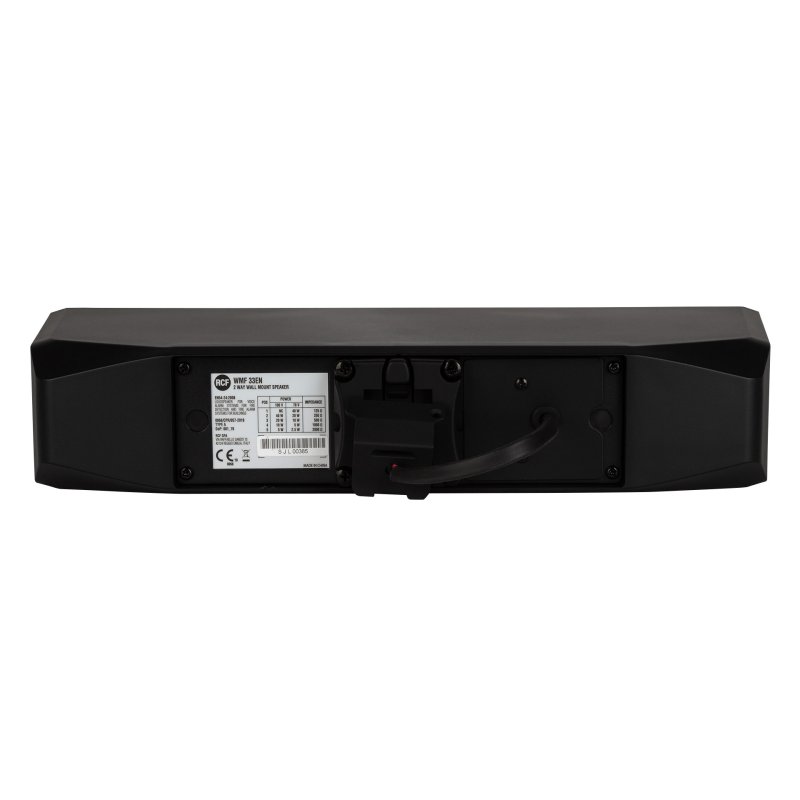

Connections integrated in the wall support
UL rated plastic enclosure

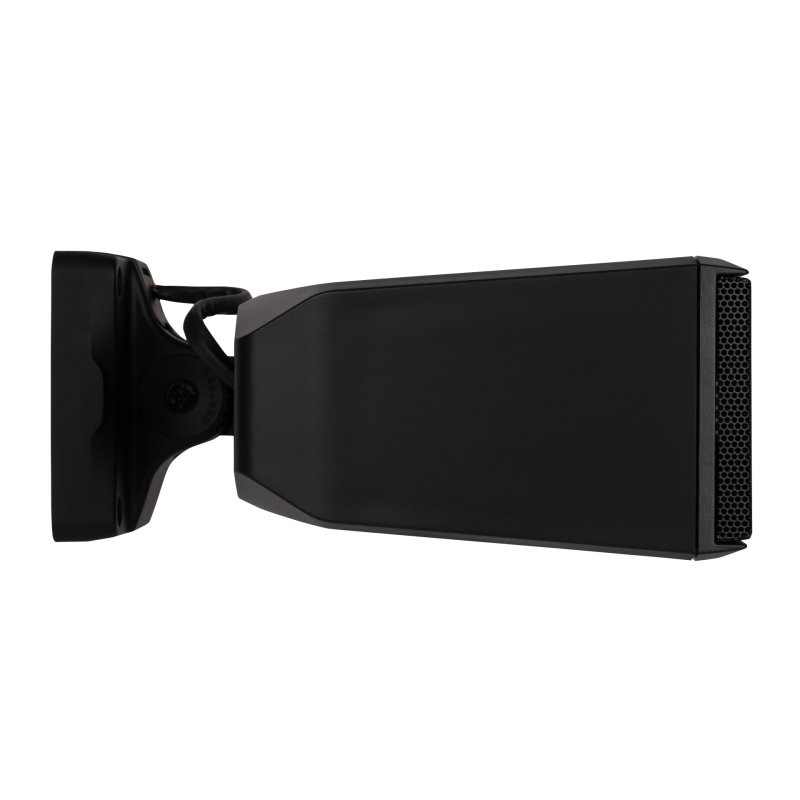

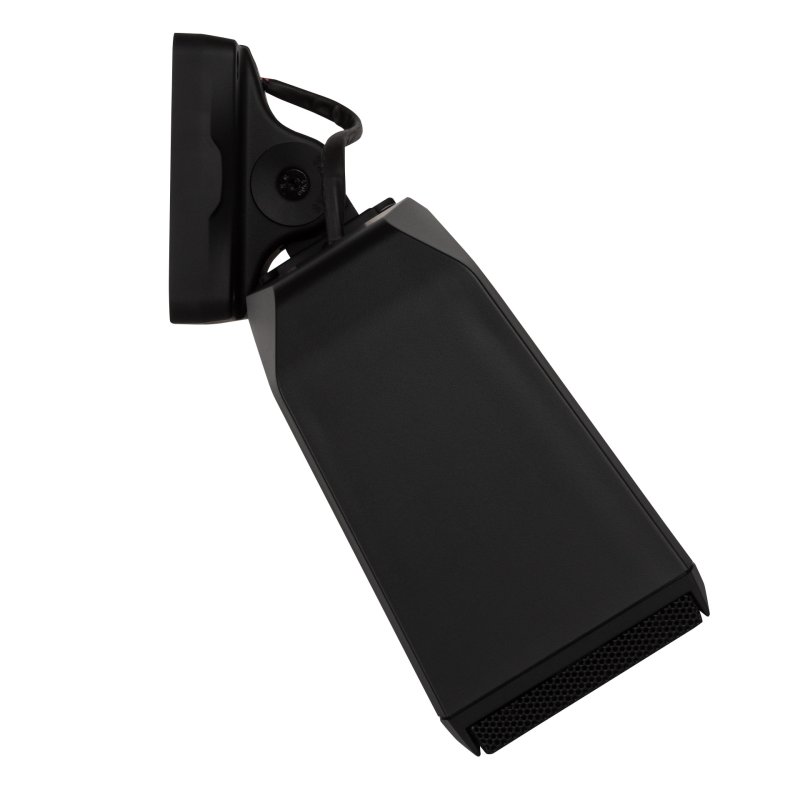

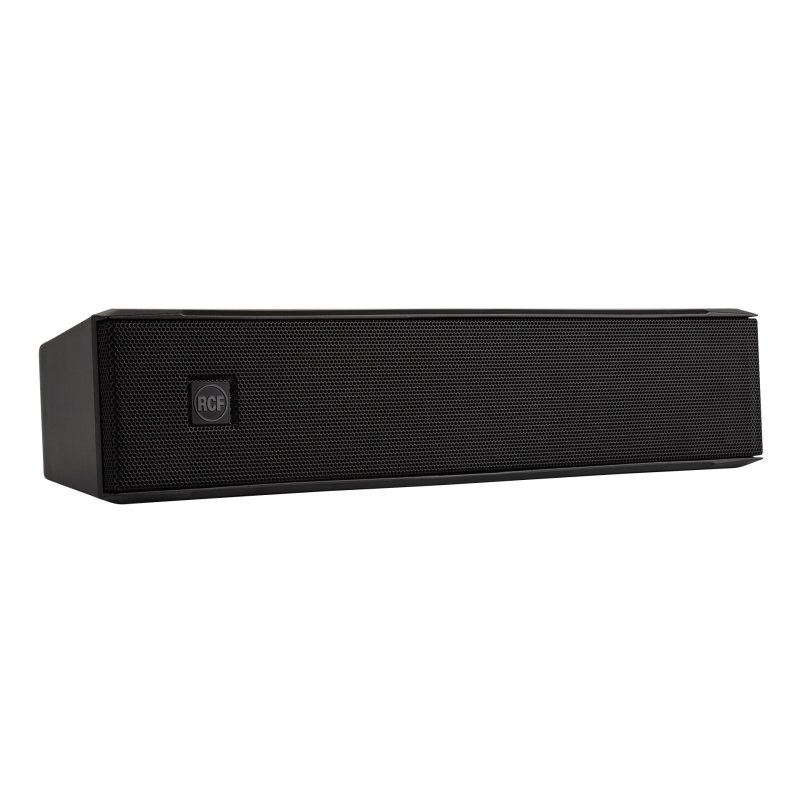

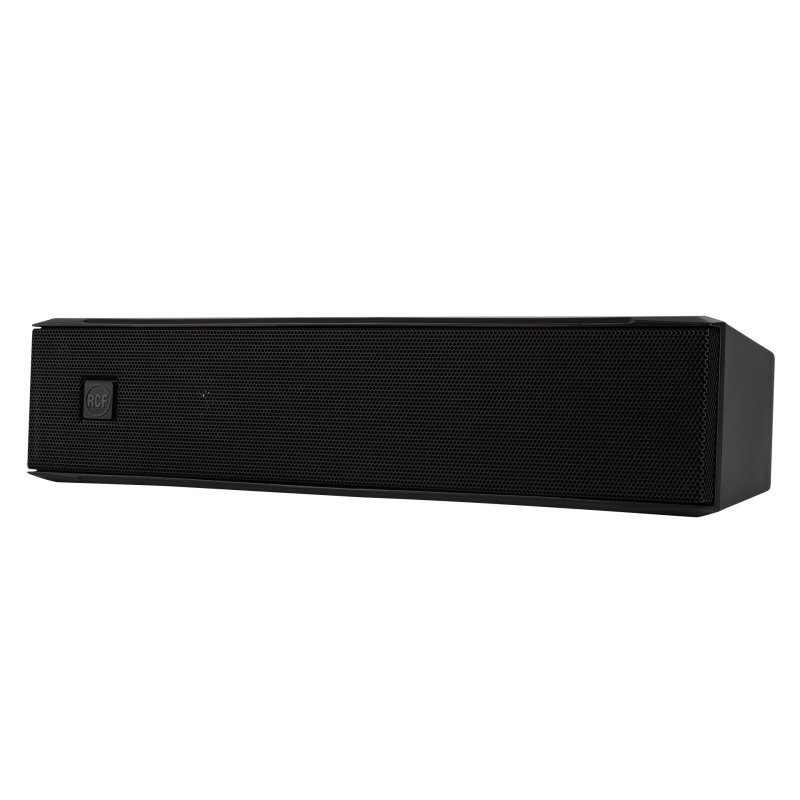

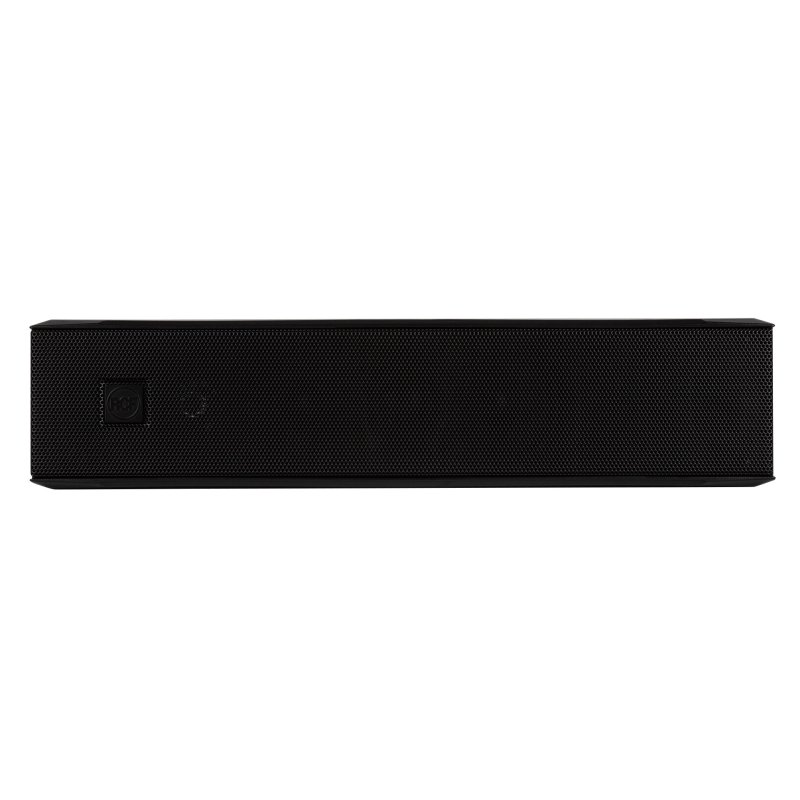

WMF 33EN is a two-way wall mount speaker designed for both horizontal and vertical installation. It is especially suitable for broadcasting background music into commercial spaces, but also includes alarm messages with highly intelligible voice reproduction and EN 54-24 certification. It features a UL rated plastic cabinet with a steel magnetic grille and is easy to install with its smart support system. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker.
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
80 Hz ÷ 22000 Hz
MAX SPL @ 1M:
105 dB
MAX SPL @ 4M:
93 dB
HORIZONTAL COVERAGE ANGLE:
100°
VERTICAL COVERAGE ANGLE:
160°
SYSTEM SENSITIVITY:
88 dB
SYSTEM SENSITIVITY 1W @ 4M:
76 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm
POWER HANDLING:
40 W RMS
PEAK POWER HANDLING:
160 W PEAK
RECOMMENDED AMPLIFIER:
80 W
PROTECTIONS:
Thermal fuse - PTC
CROSSOVER FREQUENCIES:
2500
Transducers
DOME TWEETER:
1.0'' neo, 1.0'' v.c
NOMINAL IMPEDANCE (OHM):
8 ohm
INPUT POWER RATING:
15 W AES, 30 W PROGRAM POWER
SENSITIVITY (DB, 1W @ 1M):
90 dB, 1W @ 1m
WOOFER:
2 x 3.0'', 1.0'' v.c
NOMINAL IMPEDANCE (OHM):
16 ohm
INPUT POWER RATING:
20 W AES, 40 W PROGRAM POWER
SENSITIVITY (DB, 1W @ 1M):
85 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Ceramic screw terminals
OUTPUT CONNECTORS:
Ceramic screw terminals
CONSTANT VOLTAGE TRANSFORMER:
70/100 V
POWER SELECTION 1 (100 V):
40 W - 250 ohm
POWER SELECTION 2 (100 V):
20 W - 500 ohm
POWER SELECTION 3 (100 V):
10 W - 1000 ohm
POWER SELECTION 4 (100 V):
5 W - 2000 ohm
POWER SELECTION 5 (100 V):
2.5 W - 4000 ohm
Standard compliance
CPR NUMBER:
0068/CPR/057-2019
EN54-24 CERTIFIED:
Yes
CE MARKING:
Yes
Physical specifications
COLOR:
Black - RAL 9005
HARDWARE:
Wall mount bracket
GRILLE:
Steel
CABINET/CASE MATERIAL:
ABS
Size
WIDTH:
92 mm / 3.62 inches
DEPTH:
236 mm / 9.29 inches
HEIGHT:
399 mm / 15.71 inches
WEIGHT:
5 kg / 11.02 lbs
Shipping informations
PACKAGE WEIGHT:
7 kg / 15.43 lbs
PACKAGE DEPTH:
276 mm / 10.87 inches
PACKAGE WIDTH:
596 mm / 23.46 inches
PACKAGE HEIGHT:
186 mm / 7.32 inches
