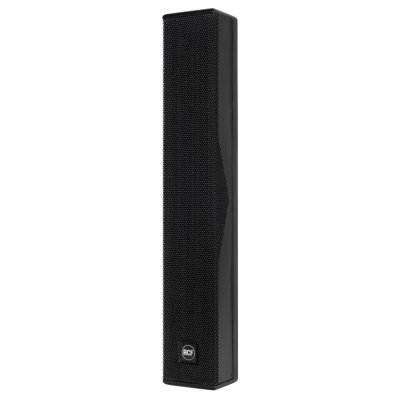

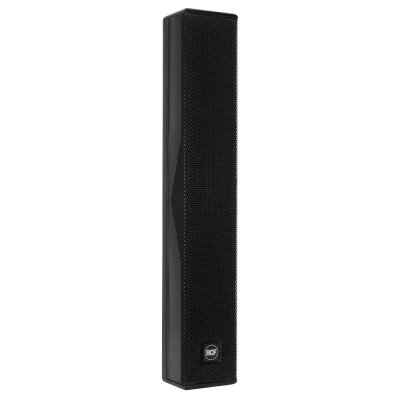

RCF L2406 2-vejs søjlehøjttaler 6x5"+4x1" 300W, Sort

L2406-T, THREE WAY SPEAKER COLUMN ARRAY

Full range high intelligibility compact 3 way column speaker array with vertical controlled directivity for medium to large size installations.


It is equipped with six 5" woofers and four 1" dome tweeters mounted in front of the two central woofers. This particular design permits coherent sound dispersion minimizing lobing in a very compact enclosure. The two central woofers are controlled differently from the other four because of the tweeters in front of them, in order to improve the directivity providing a true cardioid column operation.The wide coverage horizontal angle and the controlled vertical dispersion allow correct sound reproduction serving a wide area and assistance in limiting feedback and reverberated sound. A speech filter can be activated for enhancing the voice frequencies and improving speech intelligibility. The crossover is designed to avoid secondary lobing creation. Mounting accessories are provided and are designed to keep the column as close as possible to the wall and simplify the installation allowing suitable tilting. The L2406-T can be used connected to a low impedance amplifier to handle 200 W RMS power. It also includes a 60 W line transformer for 100 V systems. The crossover is equipped with a circuit to protect the four 1" dome tweeters

Frequency Response -10 dB: 100 Hz ÷ 20 kHz
Frequency Response -3 dB: 150 Hz ÷ 15 kHz
Max SPL @ 1m: 120 dB
Horizontal coverage angle: 150°
Vertical coverage angle: 30°
Directivity index; Q: 9.25
System Sensitivity: 97 dB
Nominal Impedance: 8 Ohm
Power Handling: 200 Watt
Peak Power Handling: 800 Watt
Recommended Amplifier: 400
Protections: Dynamic
Crossover frequencies: 2000 Hz
Compression Driver: 4 X 1" HF driver, 1" voice coil
Nominal Impedence: 8 Ohm
Input Power Rating: 10 Watt AES
Sensitivity: 90T dB
Woofer: 6 X 5" woofer, 1" voice coil
Nominal Impedence: 8 Ohm
Input Power Rating: 30 Watts AES
Sensitivity: 90 dB
Cabinet Material: 9 mm birch plywood construction
Hardware: 4x M5 inserts
Grille: Custom perforated steel grille
Colour: Black, white, scratch resistant paint
Height: 826 / 32.52 mm/inch
Width: 135 / 5.31 mm/inch
Depth: 140 / 5.51 mm/inch
Net Weight: 11.5 / 25.35 Kg/Lbs

Størrelse

Vægt:	12,8 kg
Bredde:	135 mm
Dybde:	140 mm
Højde:	826 mm

Forsendelsesinformation

Pakke Bredde:	219 mm
Pakke Dybde:	219 mm
Pakke højde:	994 mm
Pakke Vægt:	14,4 kg
