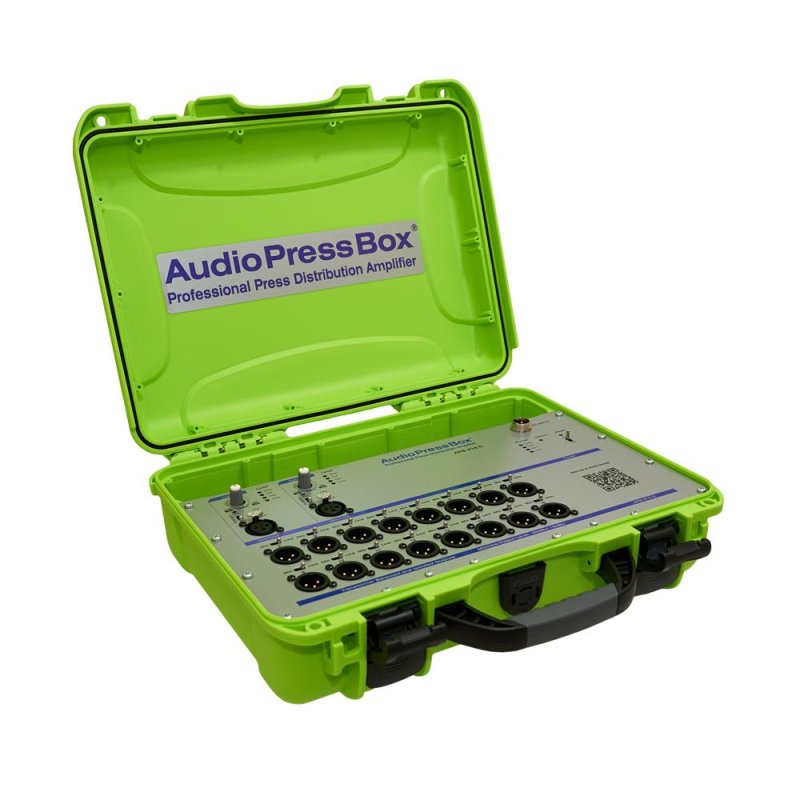

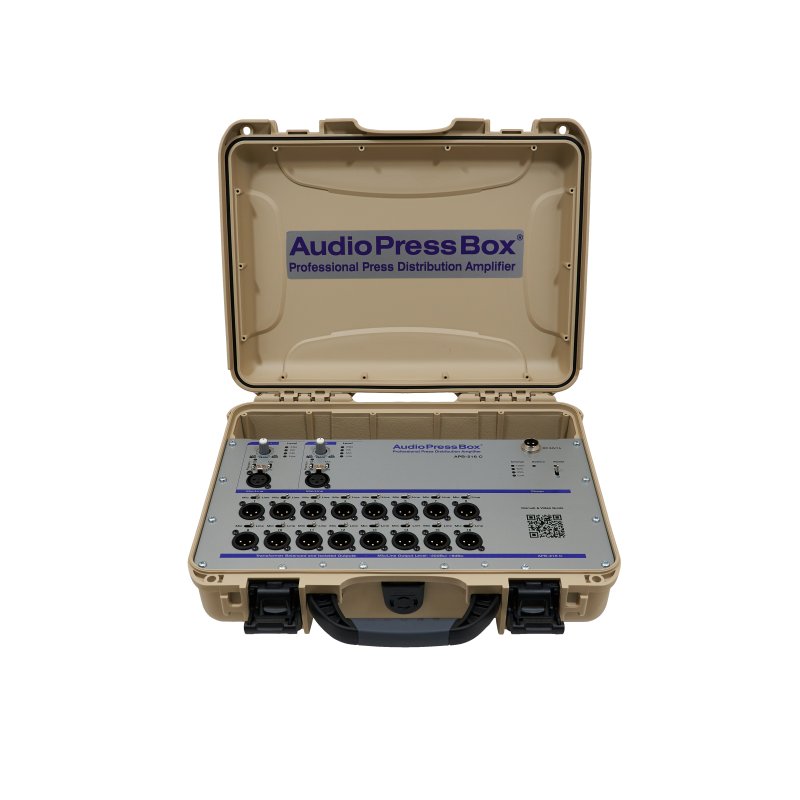

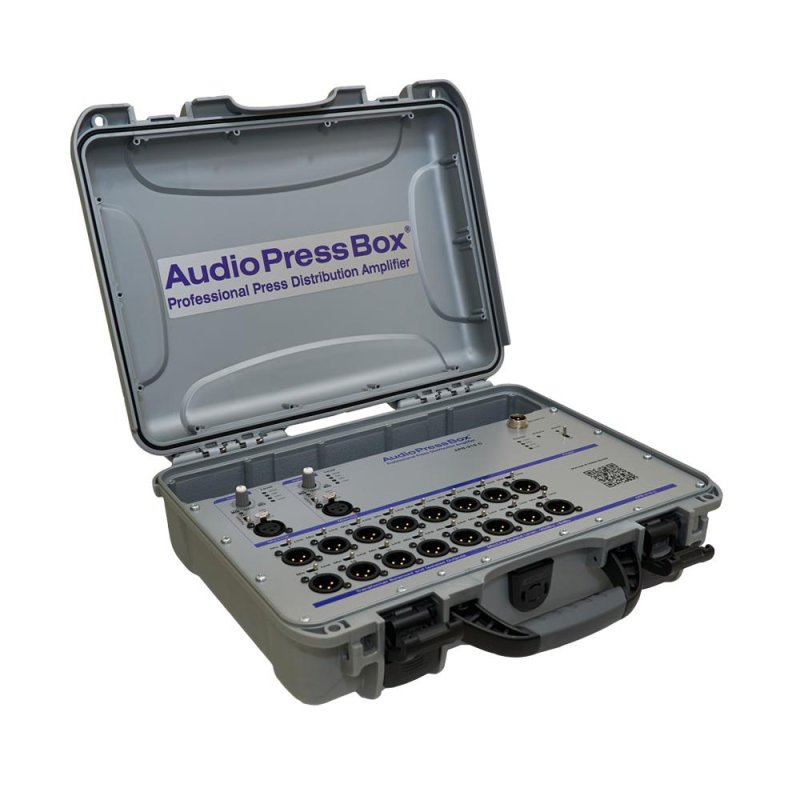

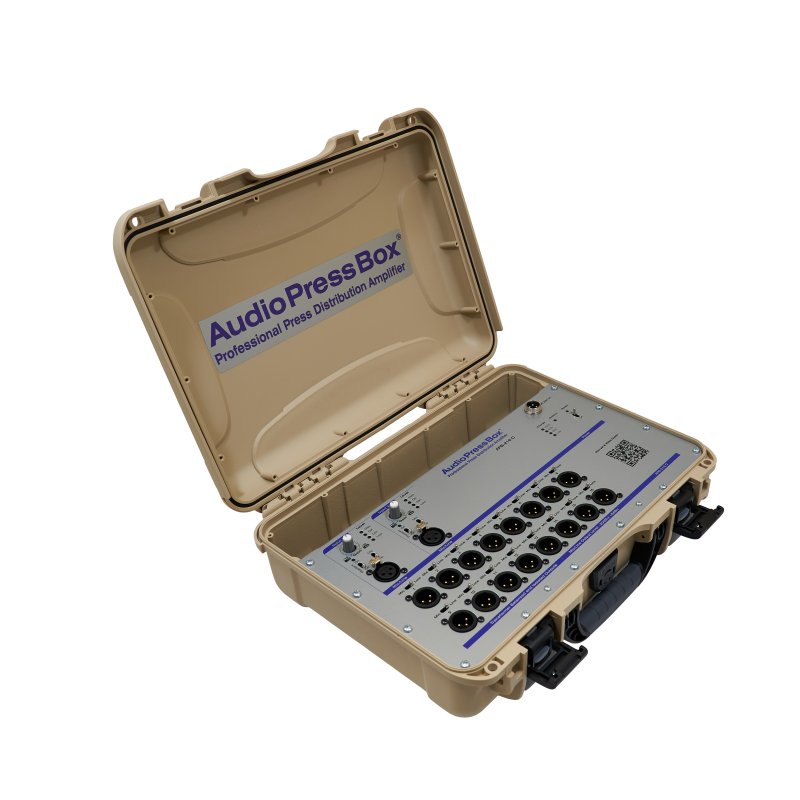

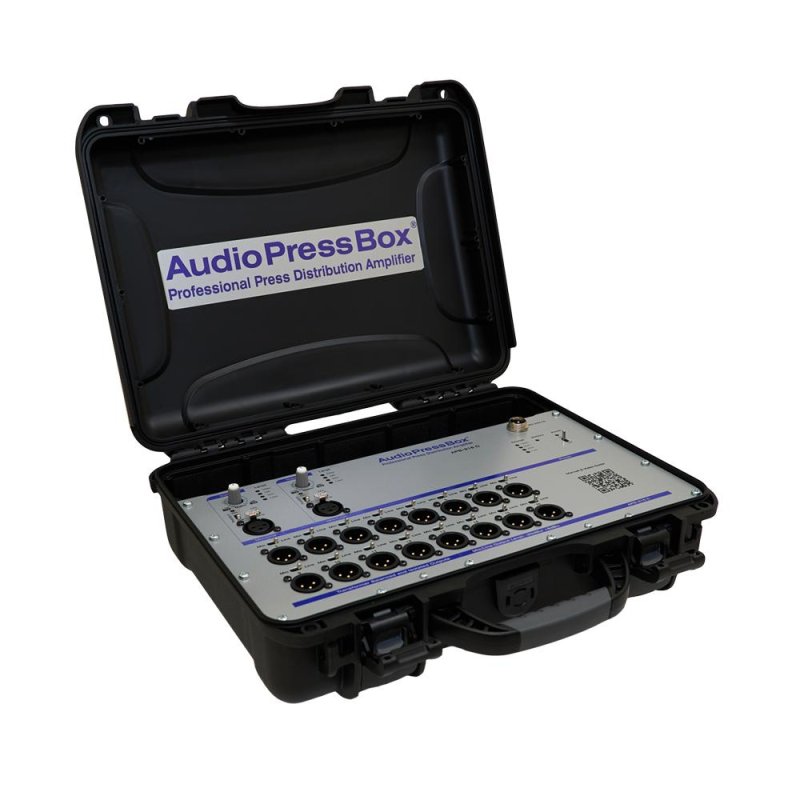

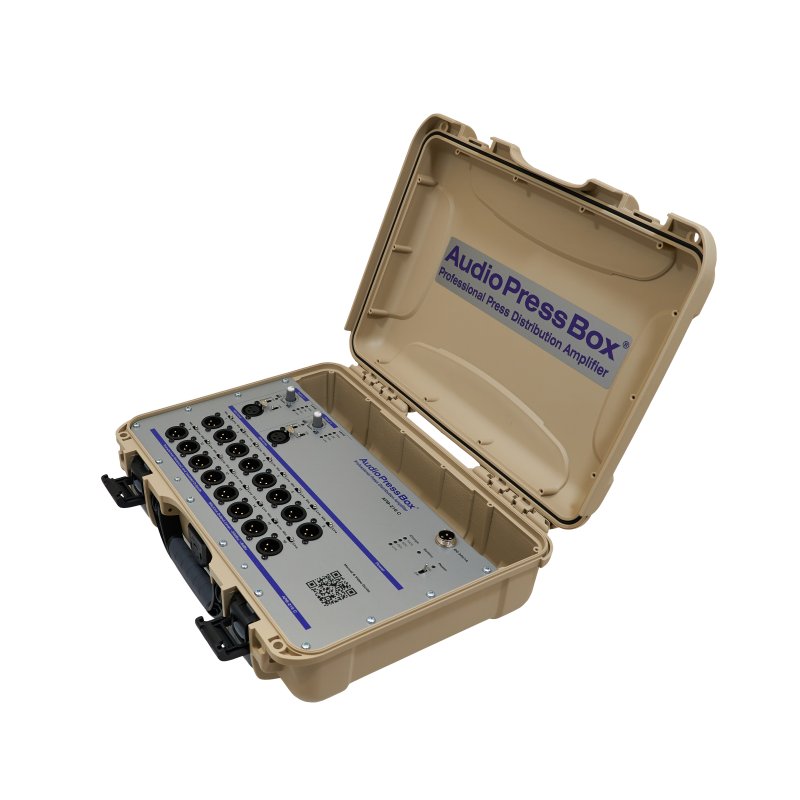

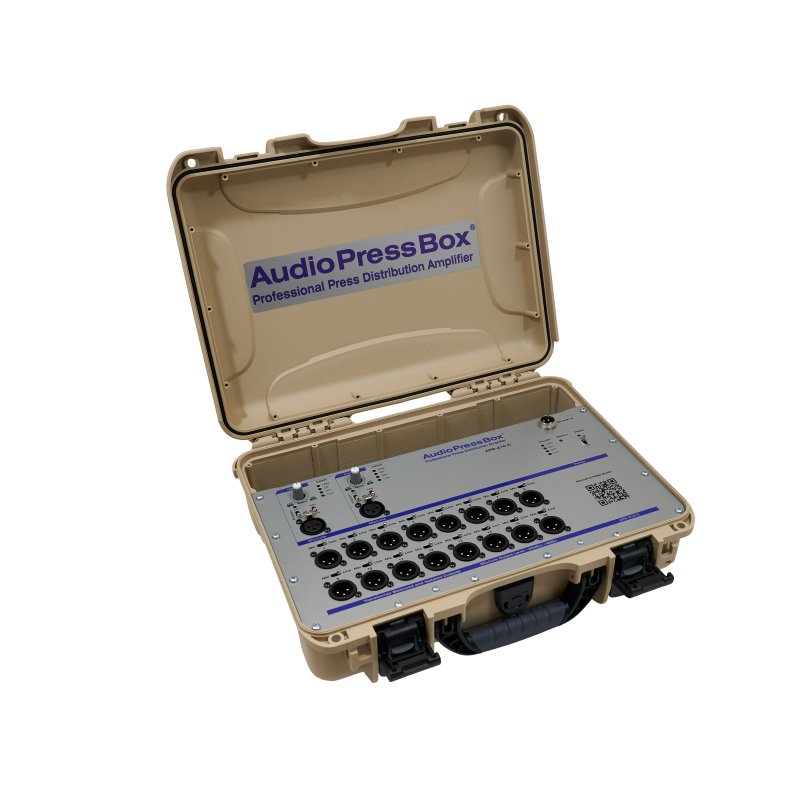

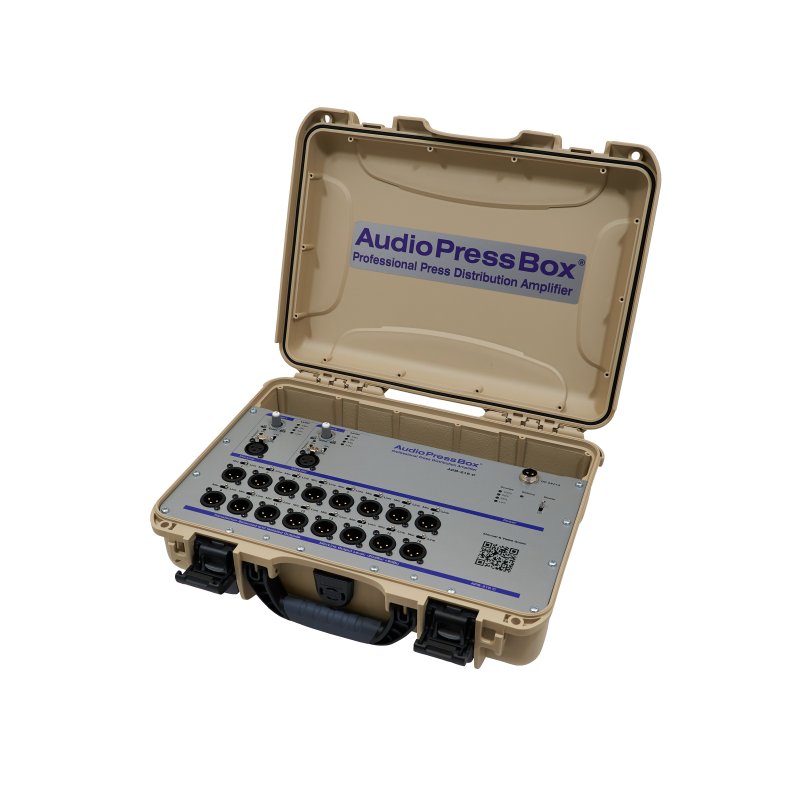

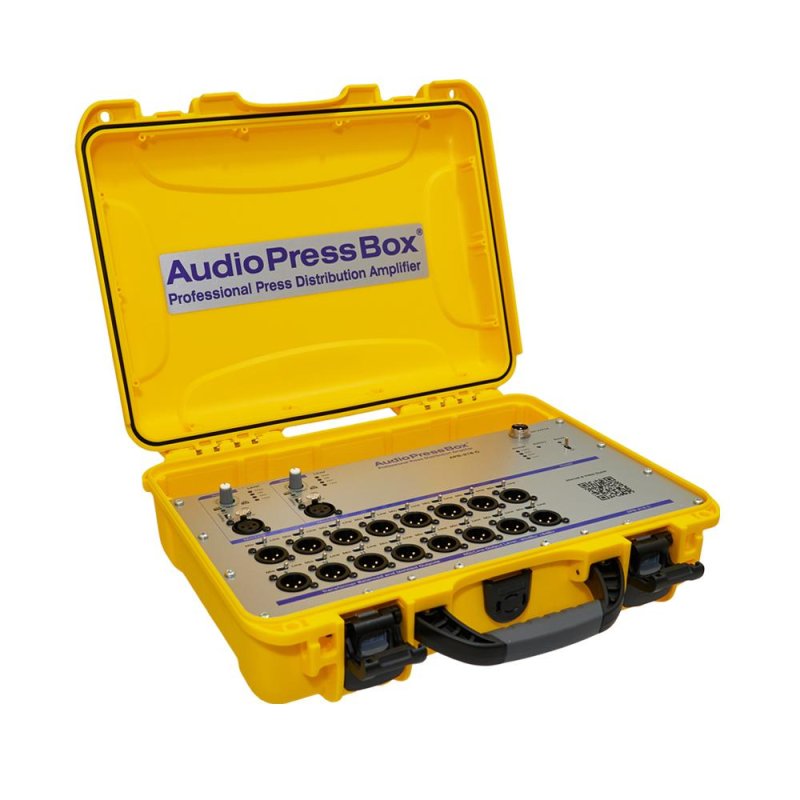

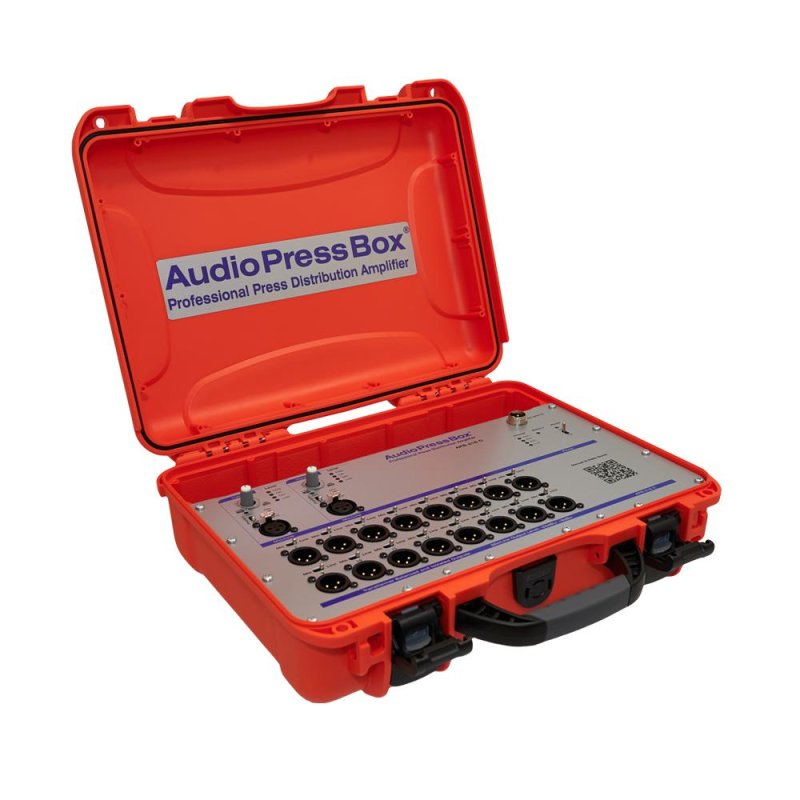

AudioPress Box 216 C stageboks 4 in / 16 out

AudioPressBox APB-416C

4 MIC (phantom power) / LINE Inputs balanced with gain control and 26dB PAD
Each Input is routable to A/(A+B)/B Outputs Group
16 High quality independent transformer balanced and isolated outputs
Each Outputs is switchable between MIC or LINE level
2 internal Output Groups: 8x Output A and 8x Output B
Switchable High-Pass filter for each Input channels
Switchable Compressor and Limiter for each Input channel
PFL/AFL for each Input/Output channels
Constant level Test signal oscillator with no mistake switch operation
Headphones control Output for PFL/AFL
Li-Ion AccuPack with microprocessor controlled battery management
10 hour full load capacity. Note: AccuPack is placed inside the unit

Audio Press Box APB-416C
Type 4 in 16 out
Groups 2
Input section
Inputs 4
Input connectors Balanced, XLR
Input Gain MIC +22/+62 dB LINE -4/+36 dB
Max. input level Limiter ON
Mic: -10/-30dBu
Line: +36/-4dBu Limiter OFF
Mic: -2/-42dBu
Line: +24/-16dBu
Phantom Voltage 48V
Input Impedance Mic: 2,4 kOhm Line: 3,5 kOhm
Output section
Outputs 16 Line/MIC level (8x Output A, 8x Output B)
Output connectors Balanced, XLR
Nominal Output Level +6dBu
Maximum Output Level +20dBu (no load)
+14dBu (600kOhm)
Output impedance Mic: 220 Ohm Line: 600 Ohm
Transformer isolated outputs Yes (each output)
SNR 86dB
Frequency Response 30/160Hz (filter) to 30kHz/-1dB
Controls Input section: 26dB PAD, Input gain, Phantom, High-pass filter, Compressor, PFL, routing switch Output section: Oscillator, Output level for Bus A and Bus B, AFL for Bus A and Bus B, Phones level, Power, Output PAD
Indicators Input section: Input clip, Phantom power, Input level, Gain reduction, PFL Output section: Output level for Bus A and Bus B, Oscilator, Power,Battery status
Power Supply 24V DC, 1A external adaptor
Battery Li-Ion, 14,4 V 2200mAh
Battery opeation time min.8 hrs

Tilslutninger

In-put:	4 Mic/Line
Out-put:	16 Mic/Line

Størrelse

Vægt:	7,0 kg
Bredde:	31,5 cm
Dybde:	17,5 cm
Højde:	39 cm
