Beskrivelse

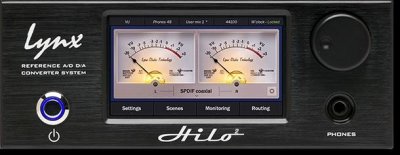

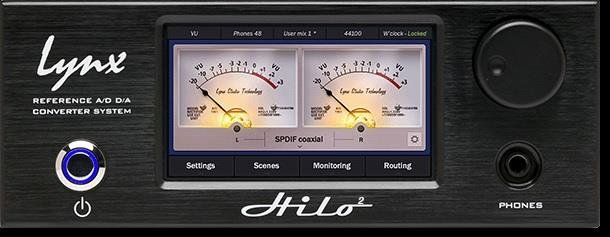

Lynx Hilo 2
Hilo 2 er for professionelle, der kræver den reneste lydkvalitet.
Hilo er udviklet til at være en ægte alt-i-en-enhed og tilbyder klasseledende AD/DA-konvertering, indbygget måling og analyse, flere ins og outs, hyperfleksibel routing- og overvågningskontrol - alt sammen nemt gemt og genkaldt via berøringsskærm, uanset hvilket arbejde du udfører.
Specification Hilo 1 Hilo 2 Comparison
Line Out THD+N -109 dB -120 dB Hilo 2: 11 dB better!
Line Out Dynamic Range 121 dB 127 dB Hilo 2: 6 dB better!
Line In THD+N -114 dB -117 dB Hilo 2: 3 dB better!
Line In Dynamic Range 121 dB 122 dB Hilo 2: 1 dB better!
Pristine, independently coupled 2 in, 6 out, AD/DA conversion with digital expansion up to 16x16.Unique touchscreen interface.
Forever upgradable through our free firmware updates.
Future-proof LSlot design with swappable USB, Thunderbolt and DANTE cards.
Real-time meters and analysis tools, hyper-flexible routing and monitor control.
Powered by mains or 9-18v DC battery packs for location recording.
Lynxs class-leading transparent audio quality.
Hilo 2: Upgraded conversion technology provides even more transparent performance.
Hilo 2: SynchroLock 2 sample clock provides faster locking and better tracking of external clocks with 7ppm absolute accuracy.
Hilo 2: In-plane switching LCD with capacitive touch provides significant increase in brightness, uniform off-axis viewing, and improved touch responsiveness.
Hilo 2: Upgrade path to higher sample rates above 192kHz and DSD on input and output.
Hilo 2: Selectable linear and minimum phase filters on line I/O.
Line in L/R (Preliminary)
THD+N: -116dB @ 1kHz, 20kHz filter, +22dBu trim
Dynamic range: 122dB @ A-weighted, -60dBFS signal method
Frequency response: ±0.01dB, 2020kHz
Crosstalk: -140dB maximum @ 1kHz, -1dBFS signal
Full-scale trim settings: +0dBV, +2dBV, +4dBV, +6dBV, +18dBu, +20dBu, +22dBu, +24dBu
Female XLR connectors
Monitor out L/R
THD+N: -107dB @1kHz, -1dBFS, 20kHz filter, volume at max
Dynamic range: 121dB, A- weighted, -60dBFS signal method
Frequency response: ±0.02dB, 20-20kHz
Crosstalk: -135dB maximum @ 1kHz, -1dBFS signal
Output level at max: +24dBu or +10dBu, jumper selectable
1/4" TRS connectors
Line out L/R (Preliminary)
THD+N: -116dB @ 1kHz, 20kHz filter, +22dBu trim
Dynamic range: 122dB @ A-weighted, -60dBFS signal method
Frequency response: ±0.02dB, 2020kHz
Crosstalk: -135dB maximum @ 1kHz, -1dBFS signal
Full-scale trim settings: +0dBV, +2dBV, +4dBV, +6dBV, +18dBu, +20dBu, +22dBu, +24dBu
Male XLR connectors
Headphone out
THD+N: -107dB @1kHz, -1dBFS, 20kHz filter, volume at max
Dynamic range: 121dB, A-weighted, -60dBFS signal method
Frequency response: ±0.02dB, 20-20kHz
Crosstalk: -130dB maximum @ 1kHz, -1dBFS signal
Output level at max: +19dBu
1/4 headphone jack
AES/EBU:
transformer-coupled on XLR connectors
S/PDIF I/O optical:
on optical connectors
S/PDIF I/O coax:
transformer-coupled on RCA jacks
