RCF TT515-A aktiv højttaler 2 x 5" + 1,75" diskant 127dB SPL

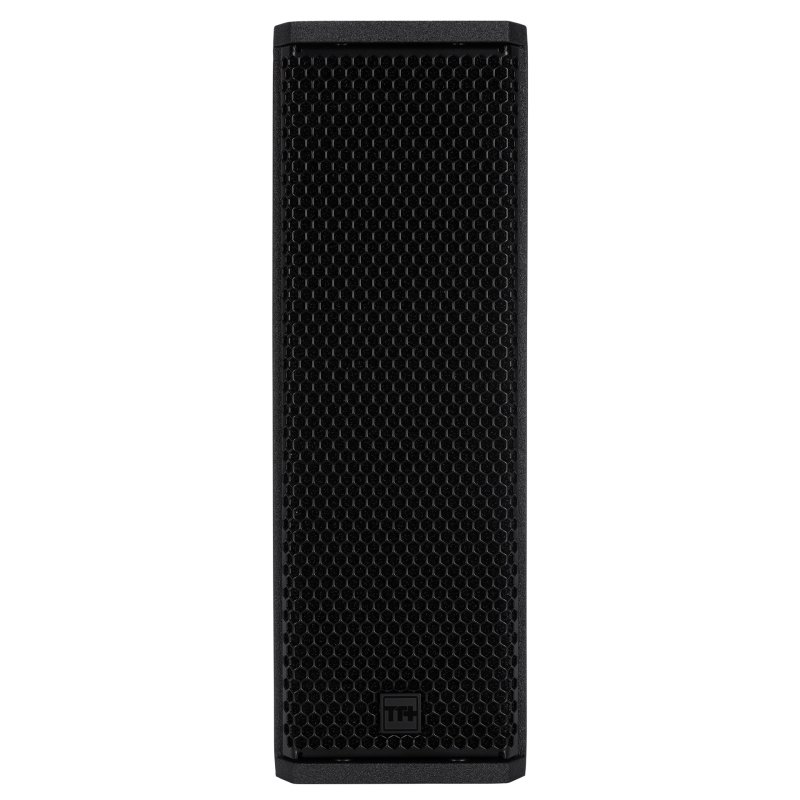

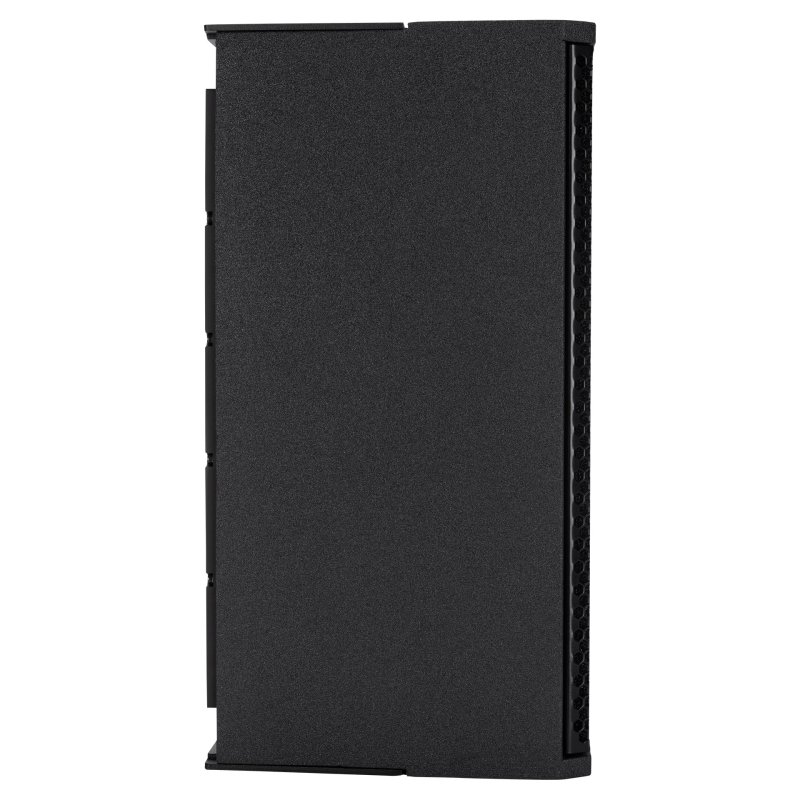

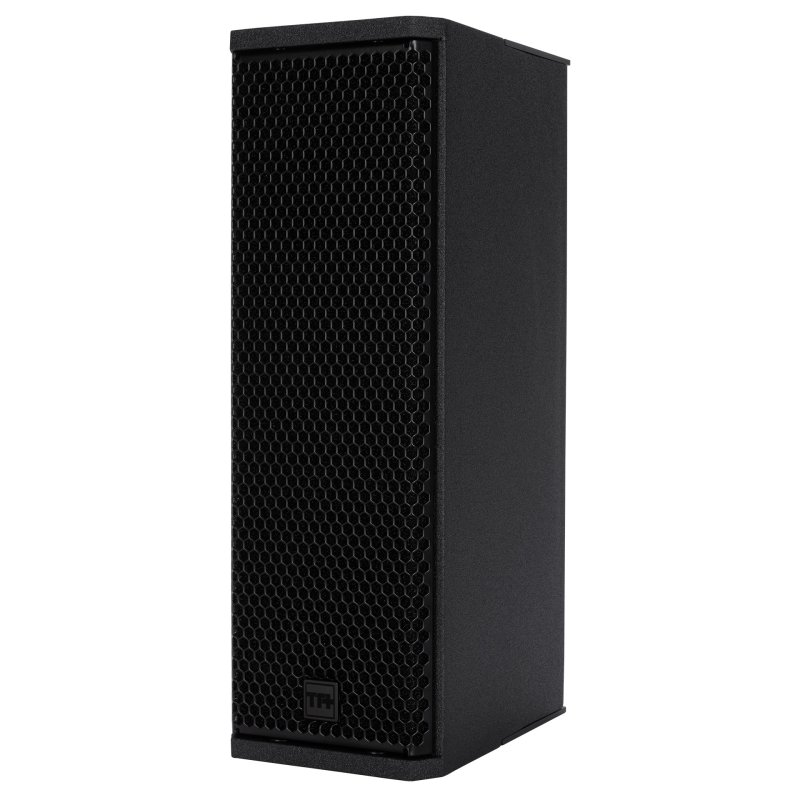

RCF TT515-A

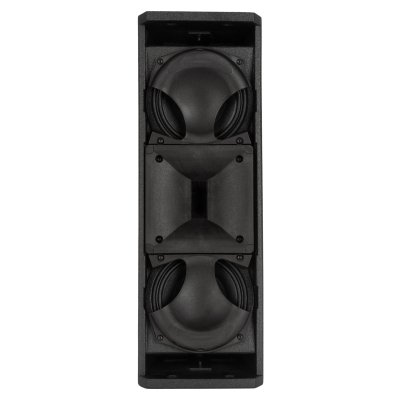

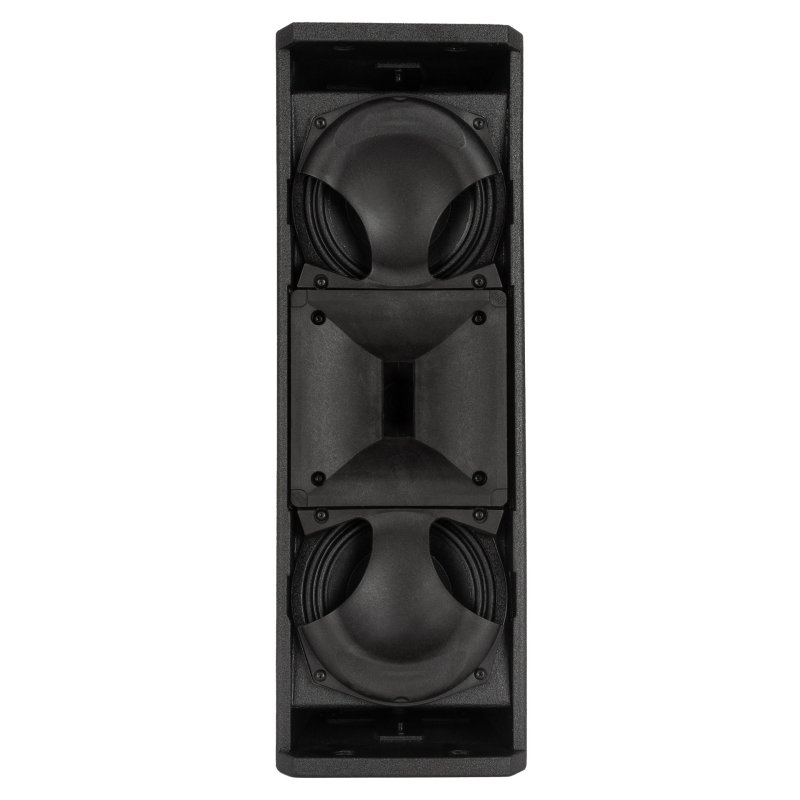

Flexibility, power, and compactness make the TT 515-A ideal for installed and portable professional applications where size and weight are critical factors. This approach combines the advantages of TT+ technology such as controlled dispersion, outstanding clarity and extreme power, multiple flexible rigging accessories, weatherproof protection, and RDNET real-time monitoring and management software with recallable presets. Its transducer configuration pairs two custom-loaded 5-inch cone drivers to a rotatable CMD waveguide surrounding a titanium 1.75-inch high-frequency compression driver. Whether it’s used as a compact main system, as fills, or surrounds in a larger system, TT 515-A is quick to deploy and fast to tune.

127 dB max SPL
100° x 70° coverage
LF 2 x 5" neodymium woofer, 2 voice coil
HF 1.75 titanium comp. driver
2 x Class-D amplifiers, 1000 Watts RMS total power
70 20.000 Hz frequency range
RDNet on board
FiRPHASE and Bass Motion Control

Transducers
COMPRESSION DRIVER:
1 x 1.0'' neo, 1.75'' v.c

INPUT SENSITIVITY: -2 dBu/+4 dBu

Processor section
CROSSOVER FREQUENCIES: 1200 Hz
PROTECTIONS: Excurs.
LIMITER: Fast Limiter
CONTROLS: Bypass, Linear/High Pass, Volume, RDnet on board
RDNET: Yes

Power section
TOTAL POWER: 2000 W Peak, 1000 W RMS
HIGH FREQUENCIES: 600 W Peak, 300 W RMS
LOW FREQUENCIES: 1400 W Peak, 700 W RMS
COOLING:Convection

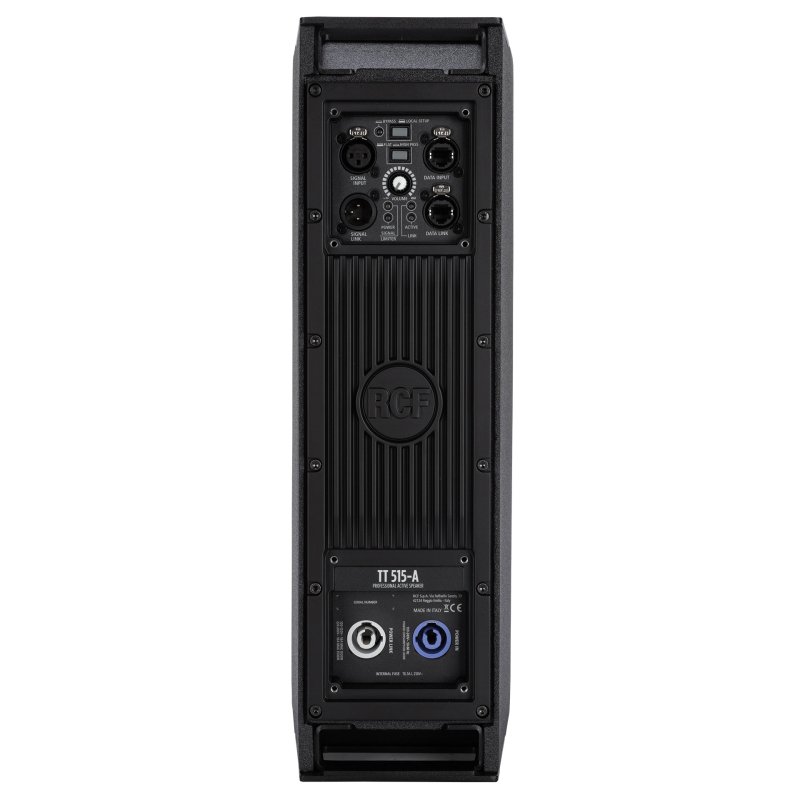

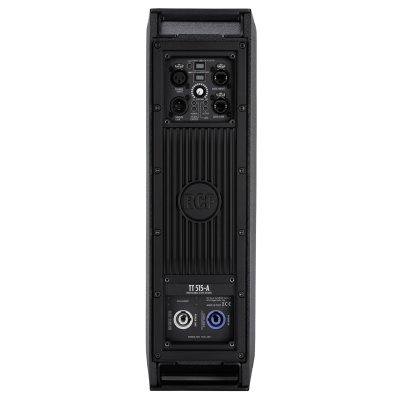

CONNECTIONS: Powercon IN/OUT

Standard compliance
CE MARKING: Yes

Physical specifications
CABINET/CASE MATERIAL: Baltic birch plywood

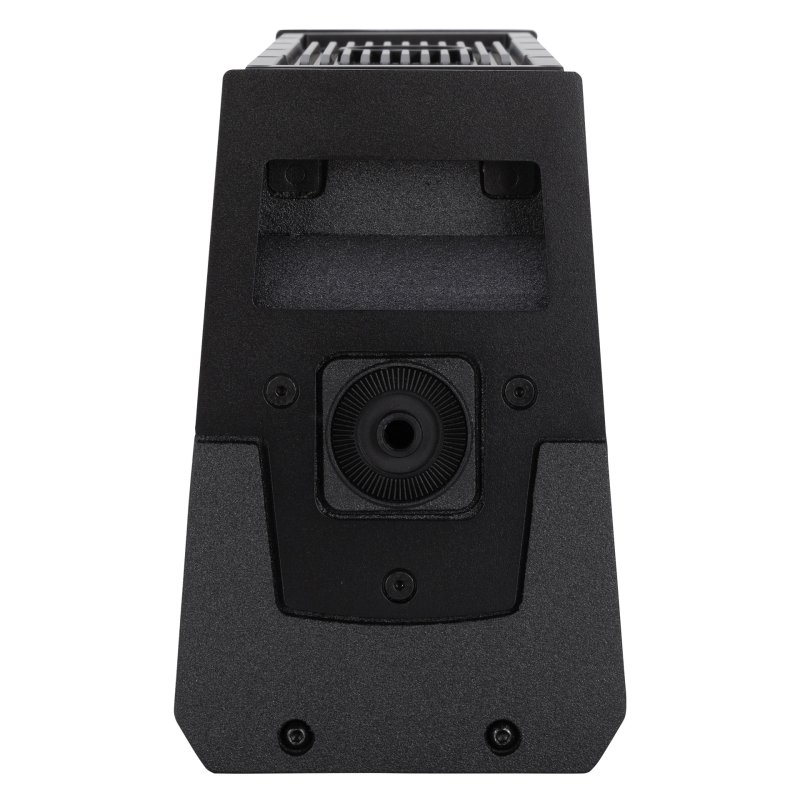

HARDWARE: 2X M10 TOP AND BOTTOM 2X PIN D.10
HANDLES: 2 TOP AND BOTTOM
POLE MOUNT/CAP: Yes
GRILLE: Steel
COLOR: Black

Akustiske specifikationer

Effekt:	2000 W Peak, 1000 W RMS
Max SPL @ 1M:	127 dB
Frekvensrespons:	70 Hz ÷ 20000 Hz
Spredning:	H=100° V=70°
Driver:	1.0'' neo, 1.75'' v.c
Woofer:	2 x 5.0'' neo, 2.0'' v.c

Tilslutninger

In-put:	XLR, RDNet Ethercon
Out-put:	XLR, RDNet Ethercon

Information

Farve:	Sort

Størrelse

Vægt:	9,8 kg
Bredde:	154 mm
Dybde:	237,5 mm
Højde:	456 mm

Forsendelsesinformation

Pakke Bredde:	290 mm
Pakke Dybde:	200 mm
Pakke højde:	510 mm
Pakke Vægt:	11,3 kg
