RCF TT808 AS aktiv Subwoofer 2 x 8" 129 dB SPL

RCF TT808-AS

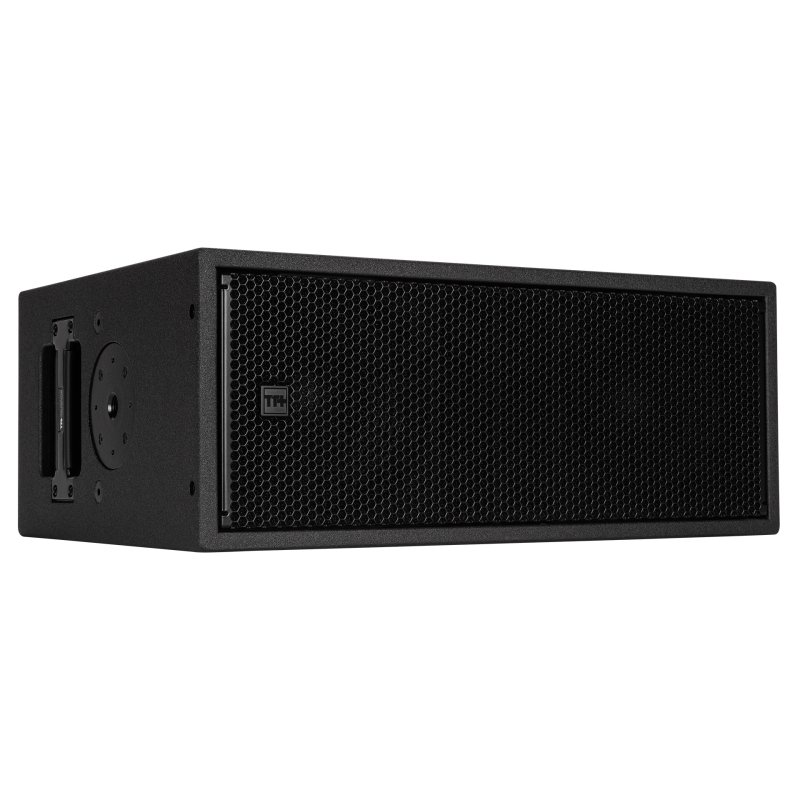

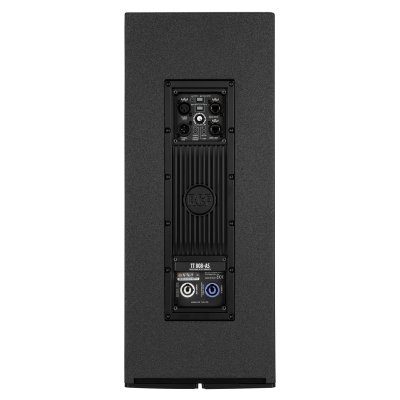

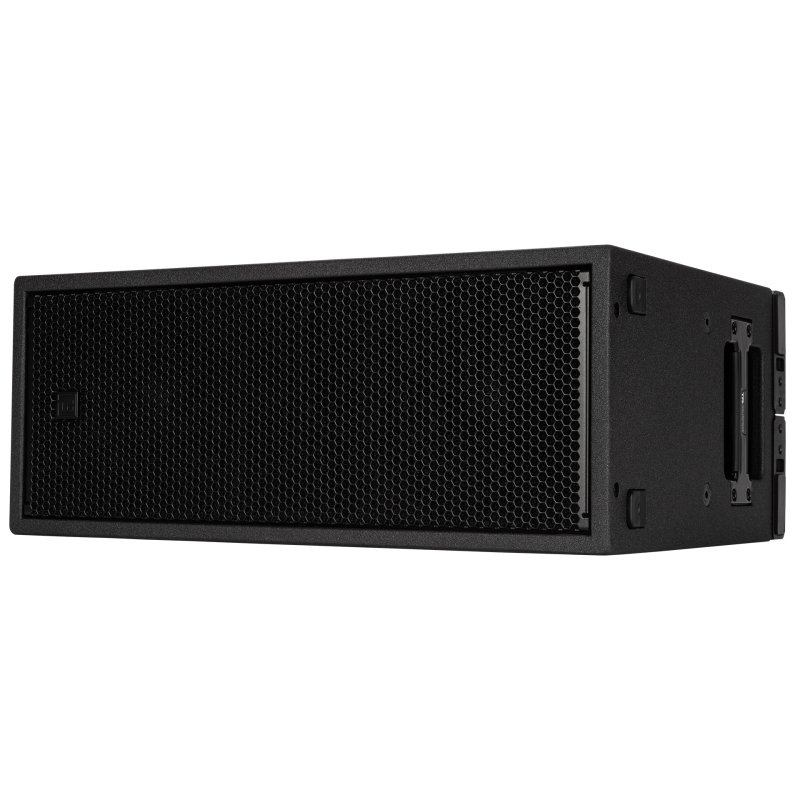

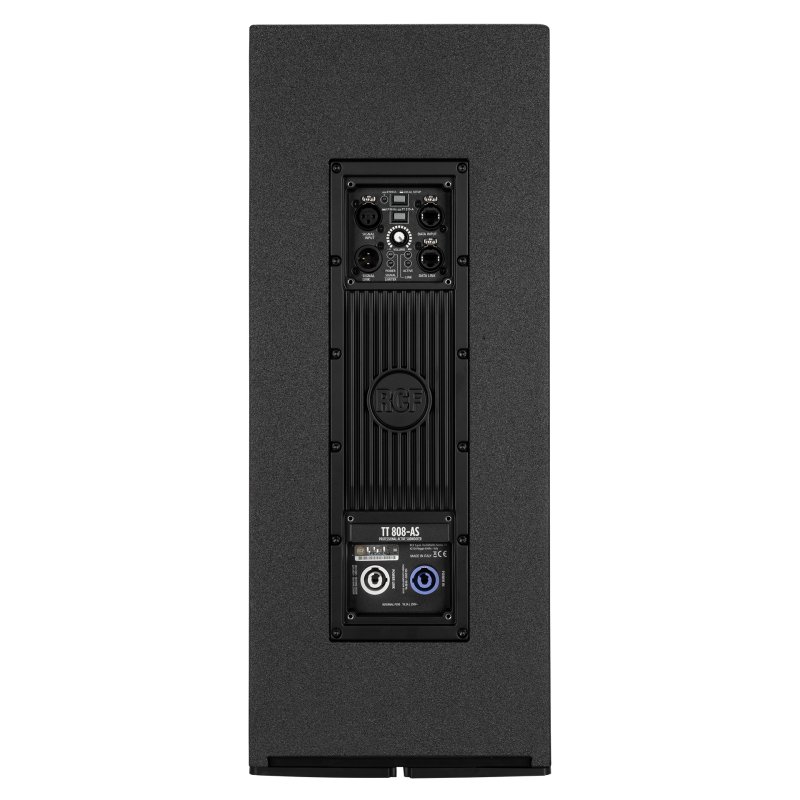

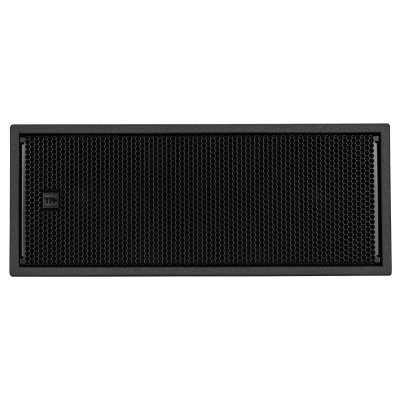

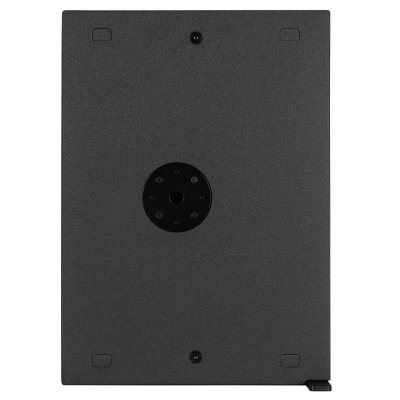

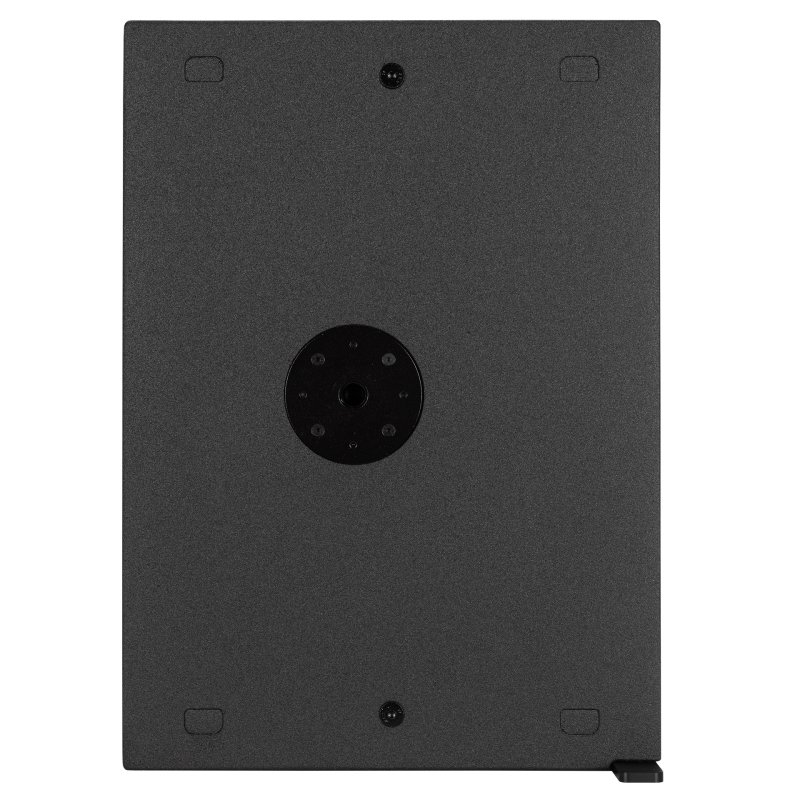

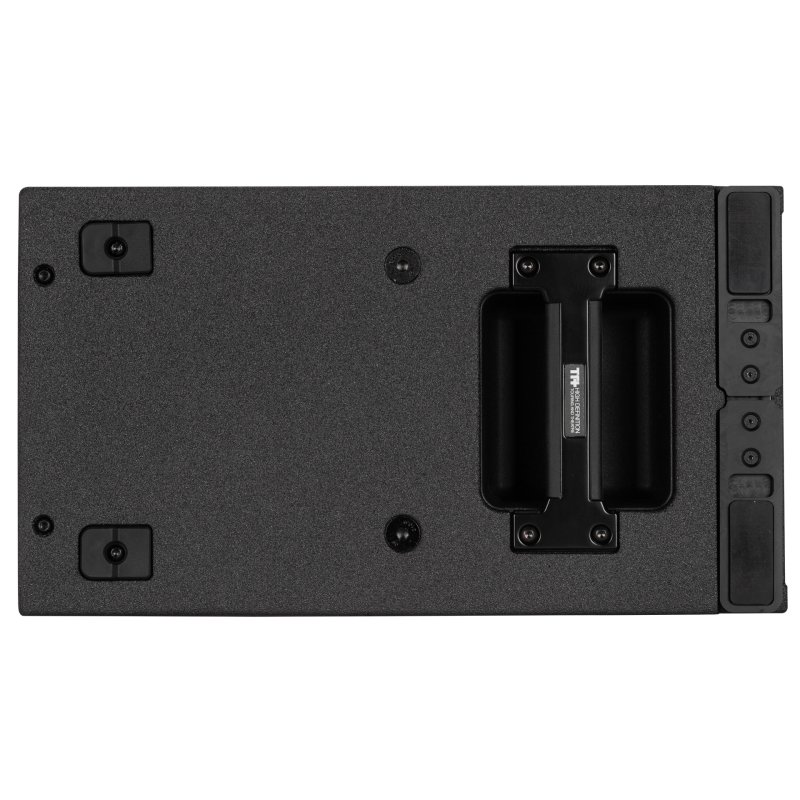

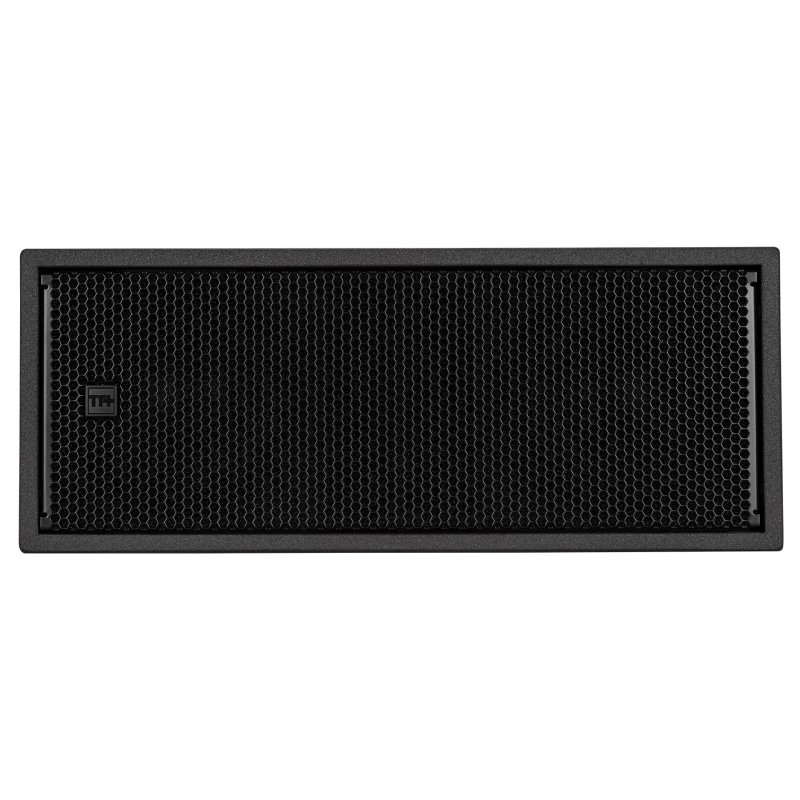

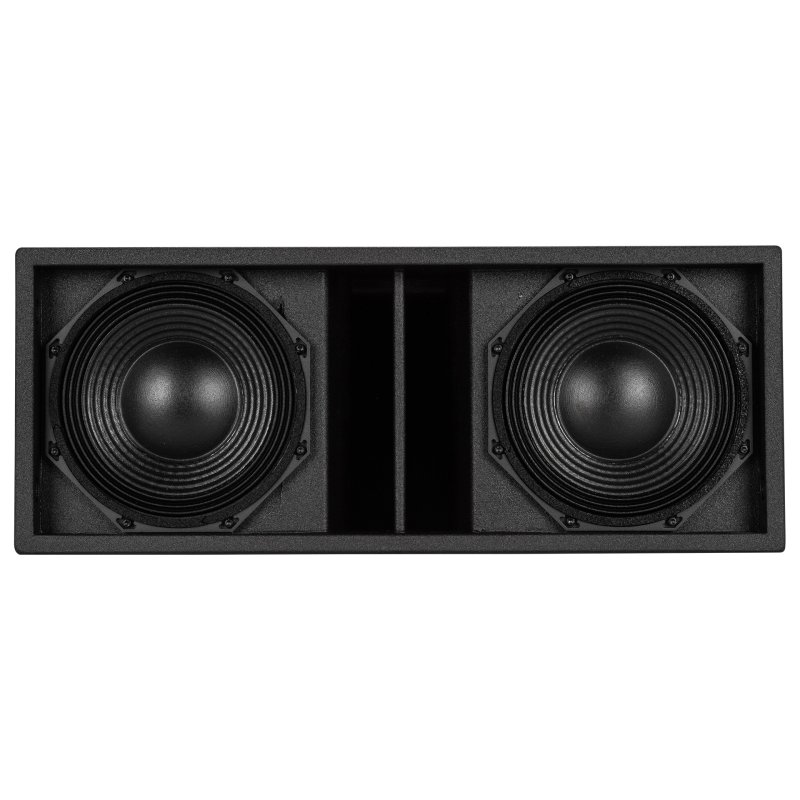

TT 808-AS is a compact low-profile high-performance active subwoofer. It features two vented-loaded 8" cone woofers powered by a 1000 Watts two-channel amplifier -one for each woofer- on a baltic birch plywood cabinet painted with black polyurea and weatherproof treatment. Management and tuning are available via RDNet software or using the two preset buttons, a polarity button, and a variable delay accessible from the back panel. The cabinet features rubber feet on two sides and two threaded pole-mounts for horizontal and vertical placement. Two stabilizing brackets make the vertical placement stable and firm. TT 808-AS can be used stand-alone, in subwoofer arrays, or as the low-frequency complement for TT 515-A speaker.

129 dB max SPL
40 Hz to 400 Hz frequency range
1000 W RMS Class-D Amplifier
2 x 8'' neodymium woofers, 2.5'' v.c
RDNet on board
Bass Motion Control excursion management
Flexible Rigging
Rotatable TT+ Logo

INPUT SIGNAL: bal/unbal
INPUT CONNECTORS: XLR, RDNet Ethercon
OUTPUT CONNECTORS: XLR, RDNet Ethercon
INPUT SENSITIVITY: -2 dBu/+4 dBu

Processor section
PROTECTIONS: Excurs.
LIMITER: Fast Limiter
CONTROLS: Gain, Equalization, ByPass on board
RDNET: Yes

Power section
TOTAL POWER: 2000 W Peak, 1000 W RMS
LOW FREQUENCIES: 2000 W Peak, 1000 W RMS
COOLING:Convection
CONNECTIONS: Powercon IN/OUT

Standard compliance
CE MARKING: Yes

Physical specifications
CABINET/CASE MATERIAL: Baltic birch plywood
HARDWARE: 2X M20 TOP AND SIDE 8X M10 2X SIDE
HANDLES: 2 X SIDE
GRILLE: Steel
COLOR: Black

Akustiske specifikationer

Effekt:	2000 W Peak,
Max SPL @ 1M:	129 dB
Frekvensrespons:	40 Hz ÷ 400 Hz
Woofer:	2 x 8'' neo, 2.5'' v.c

Tilslutninger

In-put:	XLR, RDNet Ethercon
Out-put:	XLR, RDNet Ethercon

Information

Farve:	Sort

Størrelse

Vægt:	20 kg
Bredde:	603,5 mm
Dybde:	430 mm
Højde:	243,5 mm

Forsendelsesinformation

Pakke Bredde:	480 mm
Pakke Dybde:	650 mm
Pakke højde:	290 mm
Pakke Vægt:	21 kg
