RCF Aktiv Line array Subwoofer 15
RCF Aktiv Line array Subwoofer 15
RCF Aktiv Line array Subwoofer 15
RCF Aktiv Line array Subwoofer 15
RCF Aktiv Line array Subwoofer 15
RCF Aktiv Line array Subwoofer 15
RCF Aktiv Line array Subwoofer 15

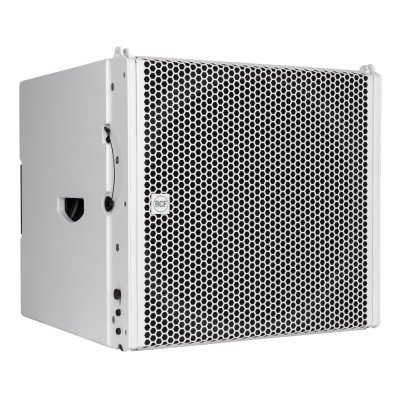

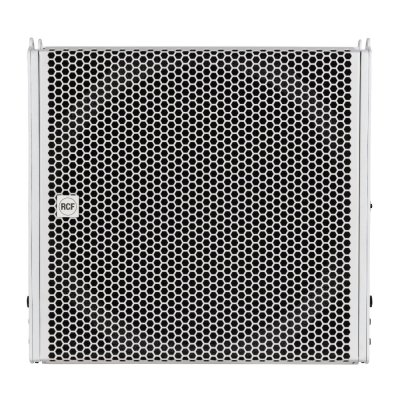

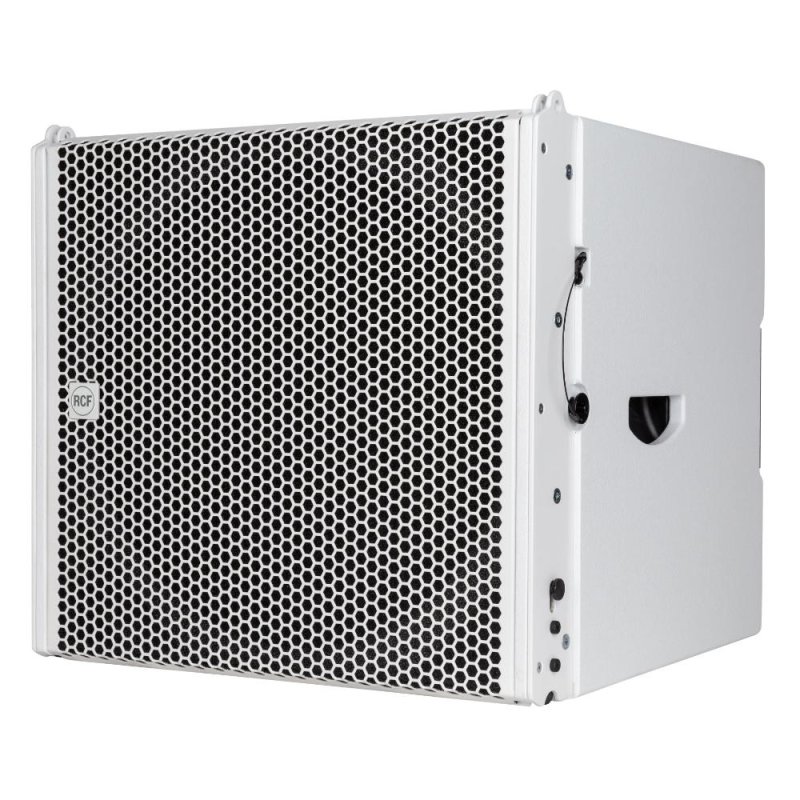

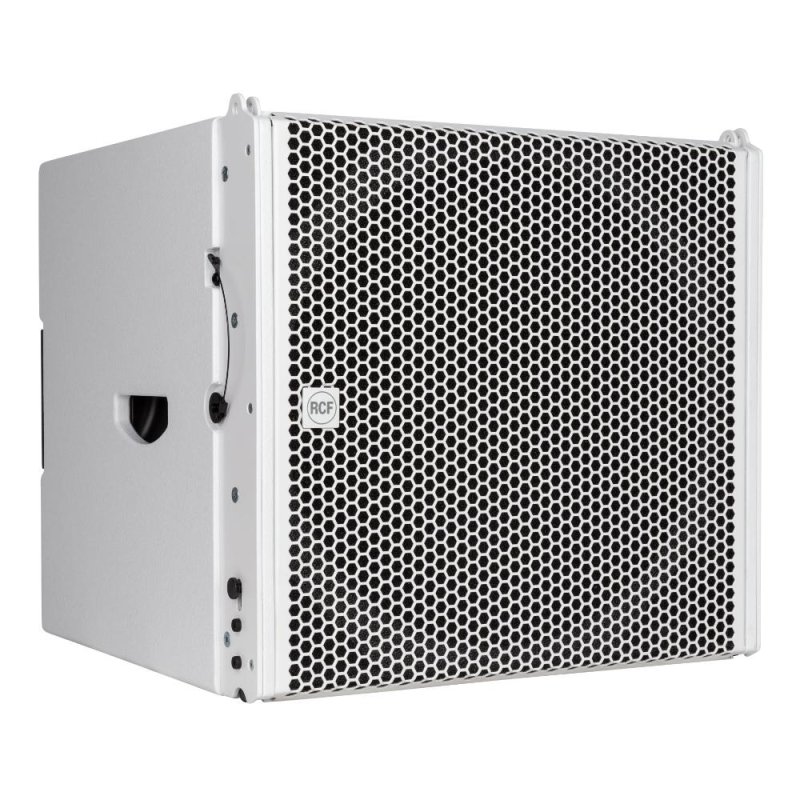

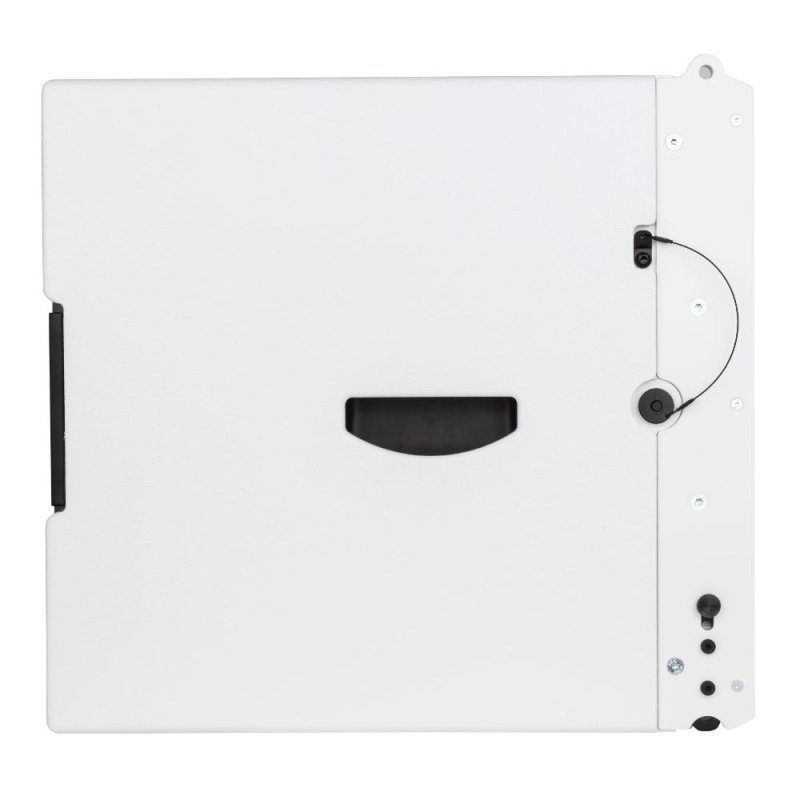

RCF Aktiv Line array Subwoofer 15" 2200 W, RDNet, Hvid

33.600,00 DKK (inkl. moms)
The HDL 35-AS is the ideal flyable bass complement for the HDL 26-A array system.
Model/Varenr.: RCF-HDL35-ASW
EAN-nummer.: 8024530018238
Leverandør varenr.: 13000664
Lagerstatus: Ikke på lager - Forhør om leveringstid
Favoritliste
Inkl. moms
                0
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                1
                                                                        2
                                                                        3
                                                                        4
                                                                        5
                                                                        6
                                                                        7
                                                                        8
                                                                        9

Beskrivelse

HDL 35-AS ACTIVE FLYABLE SUBWOOFER MODULE

134 dB Max SPL
2200W Class-D Amplifier
40-140 Hz frequency response
RDNet Networked Management

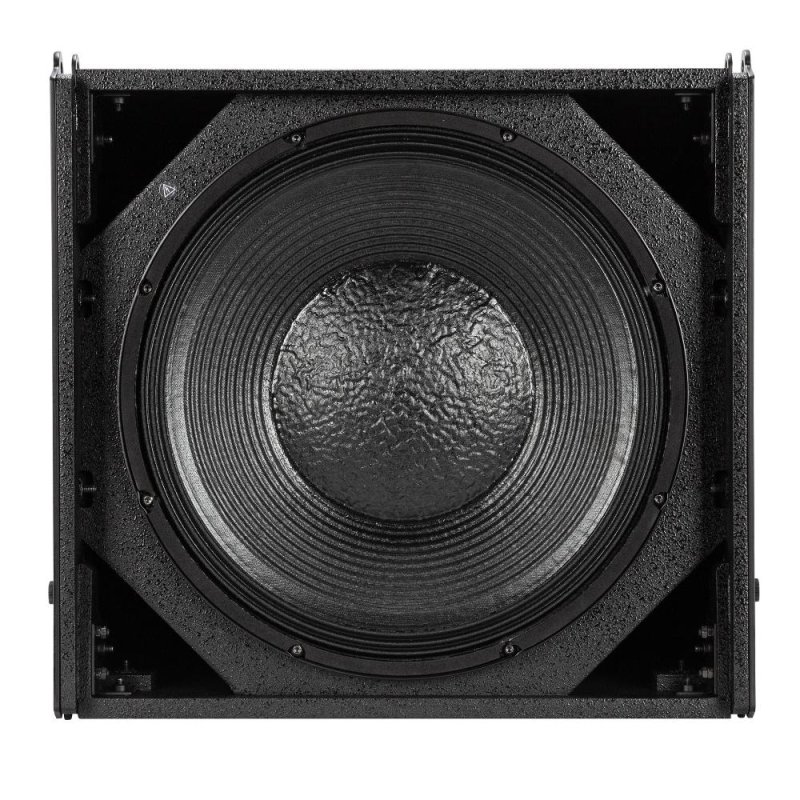

1x15” Neodymium Woofer, 4.0” voice coil

The HDL 35-AS is the ideal flyable bass complement for the HDL 26-A array system. It features a baltic birch plywood cabinet housing one 4.0” voice coil, 15” Neodymium woofer to handle frequencies from 40 Hz to 140 Hz with the maximum linearity and lowest distortion. The 2200 Watts class-D amplifier onboard delivers excellent playback clarity and up to 134 decibels SPL max. Due to its compatibility with RDNet - remote monitoring and control, the HDL 35-AS is part of the professional HDL System.

Precision transducers
Our latest developments have resulted in designing state of the art neodymium magnetic circuits, radically new voice coil ventilation systems and ground-breaking direct drive voice coil assemblies.

Powerful class D amplifiers
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.

Cabinet and mechanics

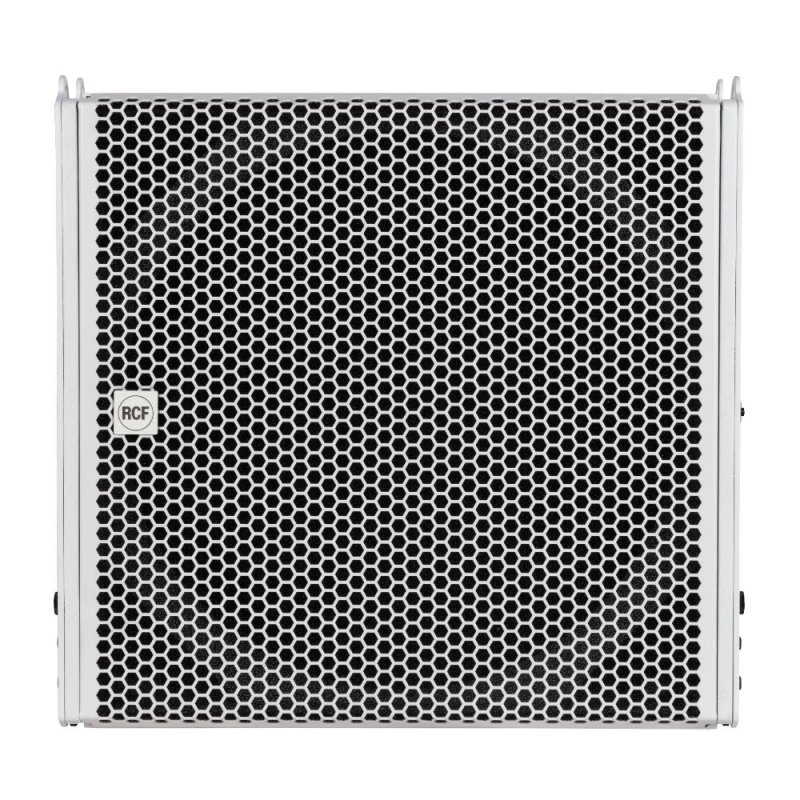

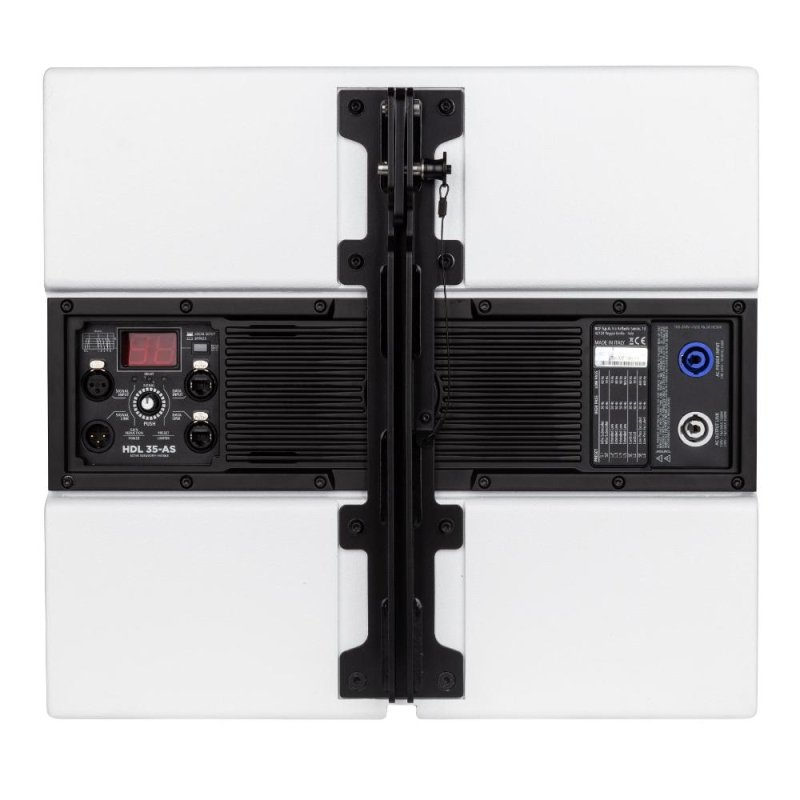

The hardware is designed for an easy and fast setup, completely compatible with the HDL 26-A rigging. The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. For weatherproof capabilities, a rain cover is available.

ACOUSTICAL SPECIFICATIONS
Frequency Response: 40 Hz ÷ 140 Hz
Max SPL @ 1m: 134 dB

TRANSDUCERS
Woofer: 15'' neo, 4.0'' v.c

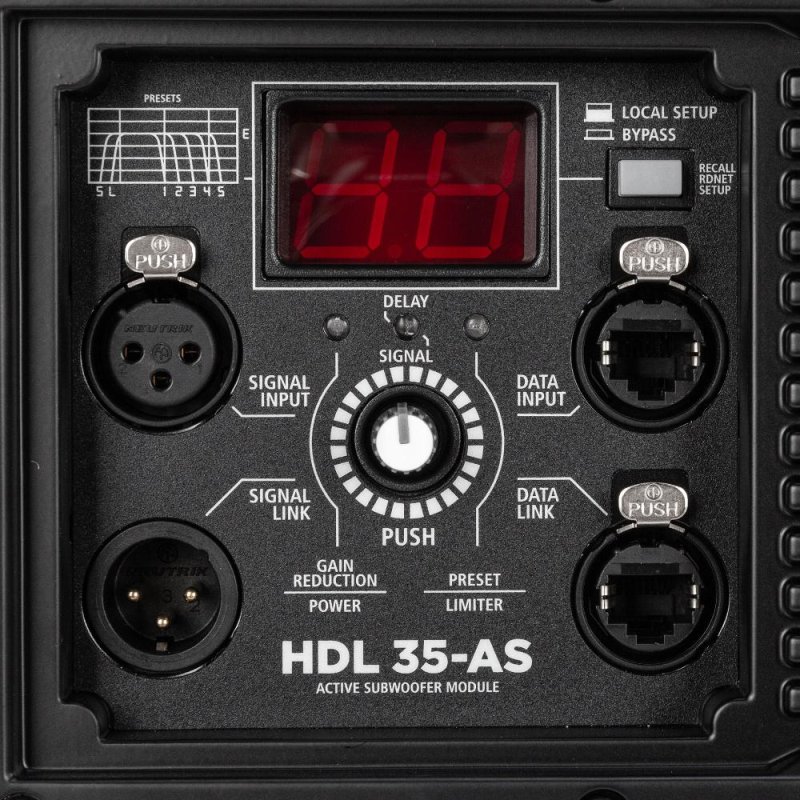

INPUT/OUTPUT SECTION
Input signal: bal/unbal
Input connectors: XLR, RDNet Ethercon
Output connectors: XLR, RDNet Ethercon
Input sensitivity: +4 dBu

PROCESSOR SECTION
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Preset selection, RDnet on board
RDNet: Yes

POWER SECTION
Total Power: 2200 W Peak, 1100 W RMS
Low frequencies: 2200 W Peak, 1100 W RMS
Cooling: Convection
Connections: Powercon IN/OUT

PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Baltic birch plywood
Hardware:
Array fittings 1 X M20
Handles: 2 Side
Grille: Steel
Color: Black, White

SIZE
Height: 444 mm / 17.48 inches
Width: 456 mm / 17.95 inches
Depth: 508 mm / 20 inches
Weight: 30 kg / 66.14 lbs

SHIPPING INFORMATION
Package Height: 530 mm / 20.87 inches
Package Width: 560 mm / 22.05 inches
Package Depth: 525 mm / 20.67 inches
Package Weight: 35 kg / 77.16 lbs

Specifikationer

Størrelse

Vægt: 30 kg
Bredde: 456 mm
Dybde: 508 mm
Højde: 444 mm

Forsendelsesinformation

Pakke Bredde: 560 mm
Pakke Dybde: 525 mm
Pakke højde: 530 mm
Pakke Vægt: 35 kg
