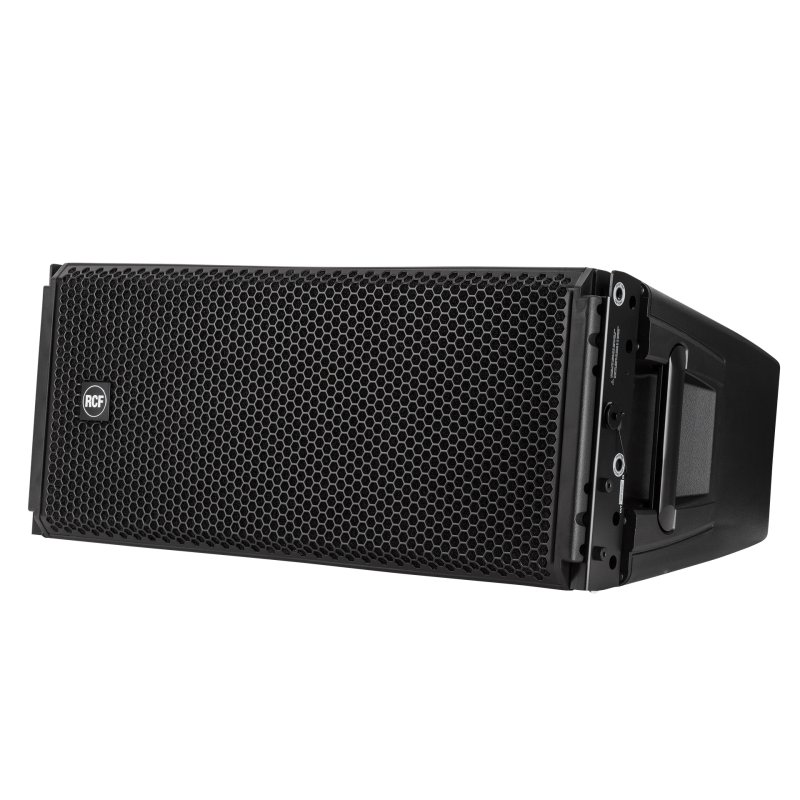

RCF Aktiv Line Array modul HDL30-A 2-vejs 2x10

RCF Aktiv Line Array modul HDL30-A 2-vejs 2x10" RdNet

Ring for pris
Det akustiske design og det kompromisløse og unikke kompositkabinet gør HDL 30-A til det foretrukne værktøj for mange professionelle.
Model/Varenr.: RCF-HDL30-A
EAN-nummer.: 8024530014643
Leverandør varenr.: 13000511
Lagerstatus: Ikke på lager - Forhør om leveringstid
Favoritliste
Inkl. moms
                0
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            1
                                                                        2
                                                                        3
                                                                        4
                                                                        5
                                                                        6
                                                                        7
                                                                        8
                                                                        9
                                                                        10
                                                                        11
                                                                        12
                                                                        13
                                                                        14
                                                                        15
                                                                        16
                                                                        17

Beskrivelse

RCF HDL30-A ACTIVE TWO-WAY LINE ARRAY MODULE

The RCF HDL30-A is a compact bi-amped 2-way active touring system for medium to large events, both indoors and outdoors. It features two 10-inch woofers and an impressive 4-inch titanium compression driver. The time coherent waveguide is the result of in-depth research and design. HDL 30-A is the first line array in a composite cabinet with zero-degree phase and ultra-linear amplitude response. The built-in 2200 watt class-D amplifier delivers excellent playback clarity and up to 137 decibels SPL max. The RCF HDL30 -A features state of the art RCF transducers with neodymium magnets. Considering its acoustical power, it has a remarkably low weight for easy handling and flying.

2200W Two Way Amplifier137 dB Max SPL48 kHz, 32 bit DSP processing1.4" Titanium Compression Driver, 4.0" voice coil2 x 10" Neodymium Woofers, 2.5" voice coilExclusive FiRPHASE technology on-boardRDNet Control and Management680 Hz Crossover Point

Acoustical Specifications

Frequency Response -3 dB: 50 Hz ÷ 20000 Hz
Max SPL: 137 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 15°
Compression Driver: 1.4" neo, 4.0" v.c.
Woofer: 2x10" neo, 2.5 v.c.

Input/Output Section
Input signal: bal/unbal
Input connectors: XRL male, RDNET
Output connectors: XLR female, RDNET
Input sensitivity: +4 dBu

Processor Section
Crossover frequencies: 680 Hz
Protections: thermal, rms
Limiter: soft limiter
Controls: Preset, RDNet bypass

Amplifier Specifications
Total power: 2200 W PEAK
High frequencies: 600 W PEAK
Low frequencies: 1600 W PEAK
Total power: 1100 W RMS
High frequencies: 300 W RMS
Low frequencies: 800 W RMS
Cooling: forced
Connections: Powercon IN-OUT

Cabinet
Cabinet Material: Composite PP, wooden reinforced
Hardware: Integrated mechanics
Handles: 2 side
Colour: black

Specifikationer

Akustiske specifikationer

Effekt: 2200 W Peak
Max SPL @ 1M: 137 dB
Frekvensrespons: 50 Hz ÷ 20000 Hz
Spredning: H=100° V=15°
Driver: 1 x 1.4'' neo, 4.0'' v.c
Woofer: 2 x 10'' neo, 2.5'' v.c

Tilslutninger

In-put: XLR, RDNet Ethercon
Out-put: XLR, RDNet Ethercon

Størrelse

Vægt: 25 kg
Bredde: 705 mm
Dybde: 502 mm
Højde: 293 mm

Forsendelsesinformation

Pakke Bredde: 800 mm
Pakke Dybde: 550 mm
Pakke højde: 365 mm
Pakke Vægt: 28,2 kg
